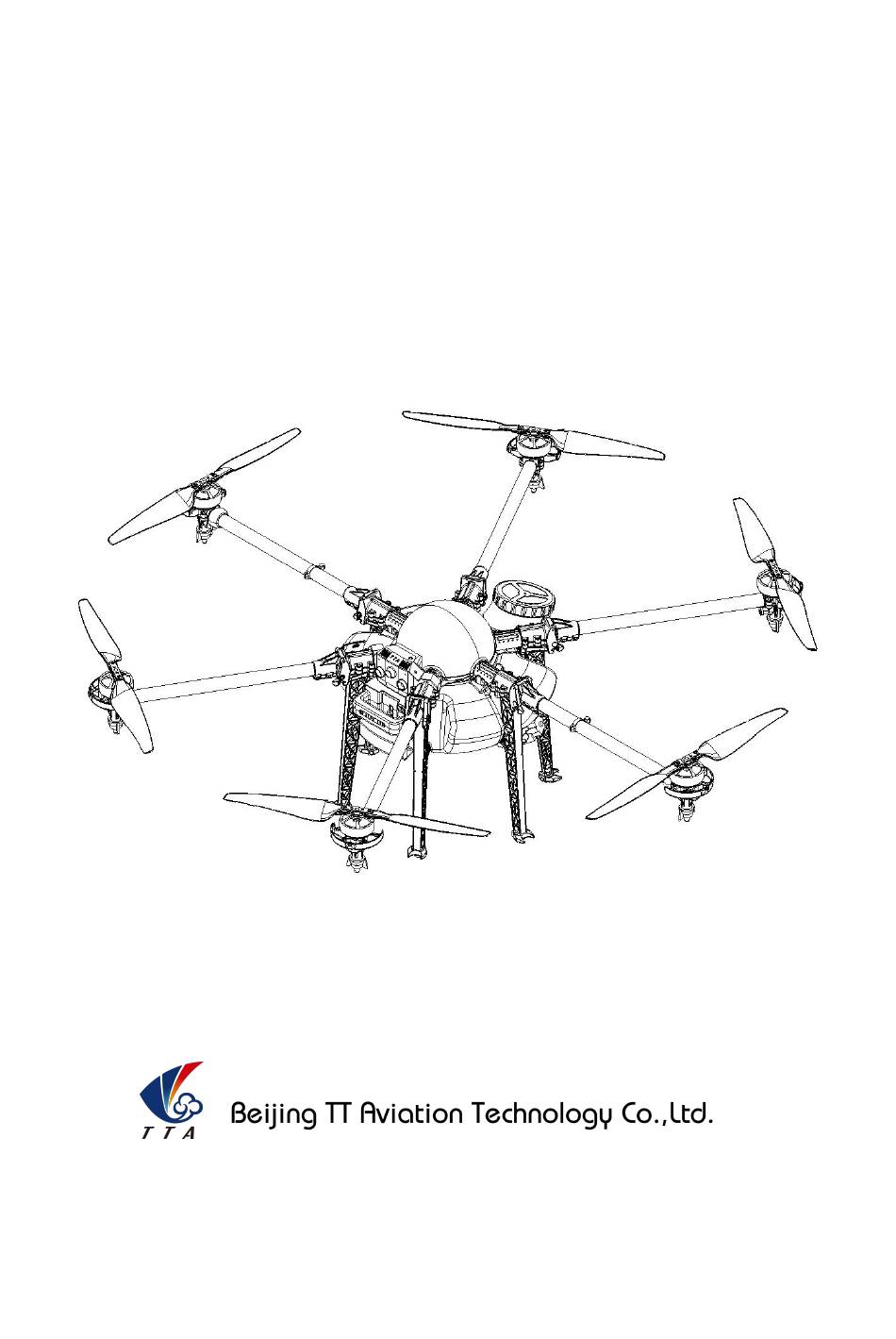

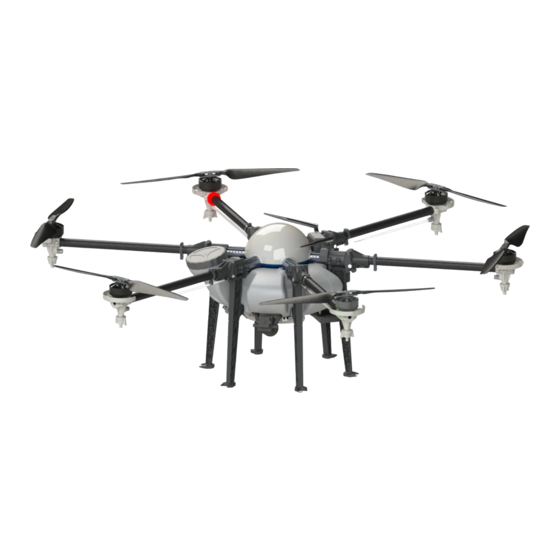

- Page 1 TIANNONG M6E-X USER INSTRUCTIONS V3.0 Make sure the pilot is well-trainned in operating UAVs before going on mission.
- Page 2 Copyright © 2020 TTA All Rights Reserved. M6E-1Use Instruction TIANNONG M6E-X Structure Picture Item Component Item Component Fuselage Intelligent Battery Clockwise Arm with LED Landing Gear Counter Clockwise Arm with LED Camera Module Clockwise Arm Arm Joint(Fuselage) Counter Clockwise Arm Propeller（clockwise）...
-
Page 3: Table Of Contents
1.5 Operation..........................6 1.6 Compass Calibration Requirements................7 2. Product Introduction........................8 2.1 TIANNONG M6E-X Parameter..................8 2.2 TIANNONG M6E-X Agriculture UAV Specification............9 2.3 Preparation Before Takeoff.................... 10 2.3.1 Installation of the Fuselage................10 2.3.2 Arm Installation.....................12 2.3.3 Spraying Tube Installation.................. 17 2.3.4 Intelligent Battery Installation................18... - Page 4 Copyright © 2020 TTA All Rights Reserved. M6E-1Use Instruction 5.7 Record..........................39 5.8 Route Planning........................ 40 5.8.1 Mapping......................... 40 5.8.2 Mission Assignment.....................44 5.8.2.1 How to share your ground to everyone nearby?.........44 5.8.2.2 ADD a ground from “Around Ground” into my ground list....45 5.8.2.3 Add the ground into my “Wait-Job”...
-
Page 5: Safety Instruction
Copyright © 2020 TTA All Rights Reserved. M6E-1Use Instruction 1.Use Instruction 1.1 Safety Instruction The product is not suitable for the ones who are less than eighteen or who do not have full capacity for civil conduct. The product have bigger fuselage size, high speed rotary and strong flight dynamics. At runtime have a certain danger. -
Page 6: Chemical Usage
Copyright © 2020 TTA All Rights Reserved. M6E-1Use Instruction You can not fly it you are in drinking , tied, drugs, physical ,discomfort, etc. . Please inspect it before using very time, including but not limited to parts of fastness, organism and propeller of cracks, and abrasion ,battery ,the effectiveness of light. -
Page 7: Inspection
Copyright © 2020 TTA All Rights Reserved. M6E-1Use Instruction sprayings. When using chemical , do not pollute river and drinking water 1.3 Inspection Before flying, ensure the battery is enough Ensure all the parts are installed firmly, and all the screws are tight as required. ... -
Page 8: Compass Calibration Requirements
Copyright © 2020 TTA All Rights Reserved. M6E-1Use Instruction When it is powered, please stand in the safe distance of above 10 meters. Ensure the propellers completely stop and power off. Please switch it to the manual operation mode when errors happen. ... -
Page 9: Product Introduction
Copyright © 2020 TTA All Rights Reserved. M6E-1Use Instruction 2. Product Introduction TIANNONG M6E-X, the multi-rotor UAV, is the most economic integrated solution for all the agriculture spraying services. This UAV is waterproof and easy to repair, long-time flight with high-strength & light fuselage material. The big power brushless motor guarantees the sensitiveness and flexibility. -
Page 10: Tiannong M6E-X Agriculture Uav Specification
12m/s Vertical ±0.5m Spraying Height 2--4m Max Flying Altitude 3500m Best Storage Max rotation angle 360° 10-25C° Temperature 2.2 TIANNONG M6E-X Agriculture UAV Specification Diagonal Wheelbase 1290mm Arm Length 435mm Unfolded Height 465mm Frame Folded Height 601mm Folded Width 400mm... -
Page 11: Preparation Before Takeoff
Copyright © 2020 TTA All Rights Reserved. Product Introduction Tank Rated Payload 10KG prevail over 10L Pressure Type Model No. ( Sector&Cone) Quantity 6 pcs Spraying Sprayer Diameter 0.5-1.5mm System Sprayer Spraying Speed 4--6m/s Spraying Volume 1.6--2.2L/min Spraying Width 4-6m (up to height) Spraying Droplet Diameter 80--200μm（adjustable）... - Page 12 Copyright © 2020 TTA All Rights Reserved. Product Introduction Nose direction with an arrow Figure 3 Figure 4 Combine well Figure 5 Figure 6 Take out drone head and tank assembly, as shown in Figure 1 and Figure 2. (The direction indicated by the arrow on dome, or the position with the TTA mark on the bottom of dome indicates the direction of drone nose.) Put the upside of drone head down as Figure1.
-
Page 13: Arm Installation
Copyright © 2020 TTA All Rights Reserved. Product Introduction 2.3.2 Arm Installation Make all the arms ready: 1 clockwise(CW) arm with LED, 1 counter clockwise(CCW) arm with LED, 2 CW arms and 2 CCW arms. Totally 6 arms. Label M1 to same Motor rotation direction same label of copter as the cover... - Page 14 Copyright © 2020 TTA All Rights Reserved. Product Introduction Motor rotation direction as the cover Label M2 same as copter frame M2 CW arm assembly rotation direction Label M3 same as same as motor the copter frame M3 CCW arm assembly with LED...
- Page 15 Copyright © 2020 TTA All Rights Reserved. Product Introduction Arm label same as Same as the motor the copter’s M4 rotation direction,CW M4 CW arm assembly Same as the label of Same as the motor copters label,M5 rotation M5 CCW arm assembly...
- Page 16 Copyright © 2020 TTA All Rights Reserved. Product Introduction Same Same as the motor copter’s label,M6 rotation direction,CW M6 CW arm assembly with LED Arm M2 same as Arm M1 same as the copter’s M2 the copter’s M1 Head direction as the arrow Copter’s M3 same Copter’s M6 same as...
- Page 17 Copyright © 2020 TTA All Rights Reserved. Product Introduction 1) Arm M1-M6 should be matched with copter’s. Match the arm’s MT60 female connector with copter’s MT60 male connector,see figure 8. 3) Match 6mm inner hole of arm clamp with copter’s main part 6mm inner hole,see figure Female and male matched Figure 8...
-
Page 18: Spraying Tube Installation
Copyright © 2020 TTA All Rights Reserved. Product Introduction Figure 13 Figure 12 Attention: The difference between CCW arm and CW arm is different rotation direction of the propellers which produce lift force. There is a mark arrow on every motor holder to help differentiate. -
Page 19: Intelligent Battery Installation
Copyright © 2020 TTA All Rights Reserved. Product Introduction Press here to plug the hose in and let it go Figure 14 2.3.4 Intelligent Battery Installation Push the Intelligent battery into the water tank as Figure 15-1, due to interference fit , it will be installed well when the battery wear pad stuck into the position Mark 3 in the Figure 15-2. -
Page 20: Intelligent Battery Instruction
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 3.Intelligent Battery Instruction 3.1 Key Function Short press 1S to check the battery real-time electricity. 3.2 Electricity Inspection When the battery is off,you can check the real-time electricity with a short press. -
Page 21: Charging
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 3.3 Charging Electric indicator will flash in cycle and displays the current electric quantity. The charging temperature of intelligent battery is 10℃ to 40℃,it’s forbidden to charge above 45℃... -
Page 22: Charger Station Introduction
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 4.Charger Station Introduction 4.1 Production Parameters Charging Manager Output current Max.30.0A Battery type LiPo Battery Cells Channel 5 channels/set Input Protection Over-current Over-voltage, under-voltage, short circuit,... -
Page 23: Wiring Diagram
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 4.2 Wiring diagram Charging Manager ①Indicator lamp ②XT90 output port ③Balance port ④Power input port ⑤Master voltage port Charging Station... - Page 24 Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org Master switch Current switch Storage button ① ⑥ ⑪ Air intake Micro-USB update port Handle ② ⑦ ⑫ Brand LCD monitor Cooling fan ③...
-
Page 25: Indicator Lamp Instruction
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org Remark: 1) Before connecting, check the ports and cable of battery to avoid breakage and break line. 2) Must connect according to the negative and positive pole label, when using... -
Page 26: Operation Instruction
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 4.4 Operation Instruction 1) Start and Self-inspection Check all connections to confirm their condition first. Press the maser power switch of charger to power on. LCD monitor and LED will turn on,meanwhile the buzzer will turn on. -
Page 27: Interface Instruction
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org Press any buttons: Stop charging Cautions: Charging station will execute some actions,such as stopping, inspection, switching channels, automatically in constant working mode. Users don’t need to do any actions to disturb the procedure. -
Page 28: Operation Instruction
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org Charger overheat! Confirm a Disconnection of output Power failure: good ventilation! or balance cable Short-circuit,stop charging！ Power failure: Overheat Discharge short-circuit or Battery over-voltage ! - Page 29 Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org Safety Warning： Charger will not work normally or be damaged for too high or too low input voltage. 12S(50.4V) LiPo battery is suitable to this product, correct battery should be chosen.
-
Page 30: App Setting Of Copter
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 5. App Setting of Copter Operation Flow of A New Drone... -
Page 31: Overall Registration Procedure
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 5.1 Overall Registration Procedure Attention: Account has two selectable level, Seller and Owner. Customer can apply to the corresponding level to update. One drone can only be added to one account of one level. -
Page 32: Registration And Login
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 5.3 Registration and Login 5.3.1 Registration (1) Click “Register” to start registration. (2) Use phone number or email to receive the verification code. - Page 33 Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org upload the photo of relevant materials for applying for the account class. (3) Click “Submit”, and then contact TTA AS engineer to notice them for further verification.
-
Page 34: Flying Homepage
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 5.4 Flying Homepage 3 4 5 6 9 10 (1) Back to home page (2) Connection Button If no device is not connected, press it to select the device to be connected as Figure 5.41. - Page 35 Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org “Green” means the remote control is connected; “Gray” means the remote controller is not connected (5) Battery display The green S icon represents a smart battery connection, and white represents an ordinary battery connection.
- Page 36 Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org (9) Terrain Following Radar Drone height to ground can be set when radar has been connected. “Green” indicates connected, and “Gray” indicates not connected; Parameters can not be reset unless radar has been connected.
-
Page 37: Connect
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 5.5 Connect (1) Open the OTG function from cellphone SETTINGS---SYSTEM---OTG (the default is Off thus it should be opened every time). (2) Power on Remote controller. -
Page 38: Device
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 5.6 Device 5.6.1 Plane list After UAV is successfully added to your account as ”5.6.2 Plane Add”, aircraft can be viewed in the “Plan List” as the Figure 5.6.1 . -
Page 39: Switch Owner
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 5.6.3 Nofly Apply 1) Waiting for permissions from UAV manufacturer. 2) After getting the permission, the time displayed on the “Device” interface will be the time you submitted in “Nofly Apply”... -
Page 40: Record
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 5.7 Record (1) Log in to your account, add the UAV to the “Device manager”. (2) Connect to the app and perform missions. -
Page 41: Route Planning
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 5.8 Route Planning Figure 5.8 Mission Planning Procedure 5.8.1 Mapping Click [Ground Plan] to enter the Plot Mapping page 1) Press [Block management] to view the marked blocks and online blocks nearby. - Page 42 Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 2) Press [New Plot] to start mark blocks and select mark method. [Handheld GPS(RTK) point device]: use portable marked device to mark out boundary point.
- Page 43 Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 3) Input contract name, cellphone number, block name to name the blocks. 4) Mark area. Slide the map to place the Mark icon on the proper point, press [Boundary...
- Page 44 Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 5) Add obstacles. Press [Obstacle point] to select the shape of obstacle: Polygon or Circle. Take a circle obstacle as an example. Slide the map to place the Mark icon on the proper point,and press [RBI] to mark one red obstacle point.
-
Page 45: Mission Assignment
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 5.8.2 Mission Assignment (1) After mapping, click “My Ground” to view the plot list. (2) Select the plot you want to share with others. -
Page 46: Add A Ground From "Around Ground" Into My Ground List
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org Input the password of this ground and “Confirm”. Everybody nearby can view the shared ground in “Around Ground”. 3.Input share password and confirm 5.8.2.2 ADD a ground from “Around Ground”... -
Page 47: Add The Ground Into My "Wait-Job" List Or A Specific Account
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org Input share password and confirm. Then ground will be added into “My Ground” list. 5.8.2.3 Add the ground into my “Wait-Job” list or a specific account You need to share the ground in “My Ground”... - Page 48 Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org Input the “Task name”and “Account name” you want to share with. Attention: The account name do not need to fill if the blocks is shared with yourself.
-
Page 49: Start Mission
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 5.9 Start Mission 5.9.1 Route Adjust (1)Press [Task Management] to view the tasks which is assigned. [Wait-Job] indicates the job need to be finished after somebody released a marked field to you. - Page 50 Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org (2)Select the task and press [Route Adjust] to edit the route. Spacing: adjust lateral distance between each 2 routes Indentation: adjust the distance between route and one selected boundary line Obstacle boundary distance: distance between obstacle boundary of nearby route.
-
Page 51: Start Spraying
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 5.9.2 Start Spraying (1) After adjusting route completely, press [Start] to enter into spraying process. (2) The spraying parameters can be adjusted in the spraying interface,such as spray type, flying speed, Radar etc. -
Page 52: Ab Mission Mode
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org (4) After uploading complete, the “Task Check” will pop up. Ensure all parameters are normal. Forbid taking off if any sensor is incorrect such as the pictures below. - Page 53 Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org (1) AB recording. Switch the flight mode to AB mode. Fly the drone to expected A point and click “A” icon to record point A .
-
Page 54: Settings
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org Note: User can adjust the take off altitude, extend or shorten the course with the remote control during the flight. 6 Settings 6.1 RC Calibration (1) “RC Calibration”... -
Page 55: Parameters Settings
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 6.2 Parameters Settings 6.2.1 Sensor (1) Accelerometer calibration Place the UAV on a horizontal platform, click the button “Accelerometer calibration”, LED will flash in red,green,yellow alternately. Solid green LED means successful calibration,data will be stored by restart. -
Page 56: Battery
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org Clicking calibration, yellow LED of copter will be on, hold and keep copter rotating clockwise and slowly; leave copter head to the ground when green led is on, rotate copter clockwise and slowly till LED flash in red,green and yellow alternately. -
Page 57: Spray
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org Before doing any settings, click “Read” on the bottom to read the current settings. (1) Low Voltage Protection When battery voltage drops to the “2nd level” of low voltage alarm, the protection will be triggered. - Page 58 Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org (3) flowmeter calibration 1) First drain all the liquid in the tank and hoses; 2) Pour 5-10 liters of water into the tank with measuring cup...
- Page 59 Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 4) Input the output percentage of pump Volume of added water Pump output percentage 5) Click “Start”, then APP will prompt the flowmeter to start calibration successfully...
-
Page 60: Parameters
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 6.2.4 Parameters User can reset the parameters in this page. . Click the button “Read” to get the current flying parameters. After resetting, click button “Save”... -
Page 61: Extra Mode
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 6.3 Extra Mode This section is used for setting external modules, including smart batteries, terrain following radar, etc.. 6.3.1 Smart Battery This function is under developing. -
Page 62: J-Rtk
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 6.3.2 J-RTK ‘RTK Location Status’ display the yaw angle fixed status; If RTK module has been mounted on aircraft, its status should be Fix before takeoff. - Page 63 Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org ‘Avoid Enhance’: Enhance the detection sensitivity of radar. ‘Automatically open avoidance’: Avoidance radar will be activated when drone is performing AB mission or Autonomous mission.
-
Page 64: About
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 6.4 About [FC] On the FC page, users can view the flight control firmware version, serial number, IOT version number, lease control status and lease management expiration date. -
Page 65: Remote Controller
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 7. Remote Controller Charger output more than 5V should not be used. Remote controller charging current should be not more than 2A. -
Page 66: Function Description
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org Power Button 3-Segment Lever F USB1/Image output 3-Segment Lever H Battery capacity indicator 7.1 Function Description Switch Channel Middle Bottom Flying mode Attitude mode... -
Page 67: Rc Connection & Device Helper.app Introduction
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 5) Give a long press on the button D to exit the RC calibrating state and the continue beeping will be stopped at the same time. -
Page 68: Hand Mode Settings Introduction
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 7.5 Hand Mode Settings Introduction Connect user’s phone, remote controller and drone 2) Open Device Helper.APP, click HAND SETTINGS and select hand mode: USA (mode 2) or JPN (mode 1). -
Page 69: Remote Controller Antenna
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 7.6 Remote Controller Antenna Remote controller antenna should straight up when it is stretched. Straight up when stretched Caution: Incorrect directions as the two pictures below. -
Page 70: Manually Arming And Take-Off
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org 7.7.1 Manually Arming and Take-off 1) Switch to Attitude mode. 2) Pull control sticks to the bottom inside corners to arm drone. 3) After armed, switch to GPS mode. Then push the throttle above the neutral position to take off. -
Page 71: Flight Mode
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org protection, operator can take over control by switching the flight mode manually if needed. Flight Mode Flight Instruction Operate Condition mode GPS satellite enough,... -
Page 72: Appendixⅰ Key Parts Maintenance
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org AppendixⅠ Key Parts Maintenance 1.Propellers (1) Blades of propeller should keep intact. If there are any cracks or missing parts, the propeller should be replaced. -
Page 73: Appendix Ⅱ Implication Of Indicator Light
Beijing TT Aviation Technology Co., Ltd. Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China www.ttaviation.org Implication of Indicator Light AppendixⅡ Items Indicator light Priority Flying Mode Gyro mode Green light single flash (stabilization,attitude) GPS mode（angle,speed） Green light double flash... -
Page 74: Appendix Ⅲ How To Connect Copter To Pc Gcs
Copyright © 2019 TTA All Rights Reserved. Appendix Technical Support Appendix Ⅲ How to connect copter to PC GCS 1 Find the correct port from the copter and open the protection cover,see figure 1: 2 Find the computer connection cable from the attached bag,see figure 2: 3 One connect to computer,another end connect to copter.Waiting for a moment(It takes few minutes to install the driver for the first connection with a new computer) 4 Open PC GCS,select the language you need.Click the connection button,see figure 3:... -
Page 75: Appendix Ⅳ How To Download Log From Pc Gcs
Copyright © 2019 TTA All Rights Reserved. Appendix Technical Support Appendix Ⅳ How to download log from PC GCS 1.Open the PC GCS, select Tool menu 2.Click Refresh button 3.Click Download button 4. Log is saved in the position as the orange word... -
Page 76: Appendix Ⅴ How To Upgrade The Firmware
Copyright © 2019 TTA All Rights Reserved. Appendix Technical Support Appendix Ⅴ How to upgrade the firmware 1 Download the upgrading tool from TTA website 2 Open the upgrading tool,see the following picture: 3 Click the button open,select the correct firmware. 4 Click the button Auto Update,then the circular indicator will turn to be green.LED of copter usually is OFF during upgrading. -
Page 77: Appendix Ⅵ Important Attentions And Clauses
Copyright © 2019 TTA All Rights Reserved. Appendix Technical Support Appendix Ⅵ Important Attentions and Clauses 1. Ingress Protection Rating Drone has a certain degree of waterproof, dustproof, when it is functioning normally. However, this protection rating is not permanent and may reduce over time after long-term use due to aging and wear. -
Page 78: Disclaimer
C) warranty card, serial number, or flight data lost; D) due to personal error caused personal injury and property damage. This content is subject to change. If you have any questions, please contact TTA: lan.li@ttaviation.com Copyright@2020 TT Aviation All rights reserved.
