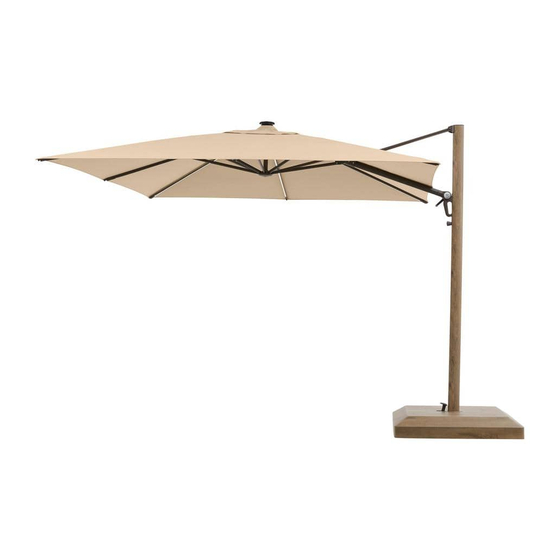

Offset umbrella with led light
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Item# 1005-874-065
Model # URA062001-LRS
USE AND CARE GUIDE
10X10FT OFFSET UMBRELLA WITH LED LIGHT
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and con dence you have placed in Home Decorators Collection through the purchase of this umbrella. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Home Decorators Collection!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the URA062001-LRS and is the answer not in the manual?

Questions and answers

Related Manuals for Home Decorators Collection URA062001-LRS

Summary of Contents for Home Decorators Collection URA062001-LRS

  • Page 1 THANK YOU We appreciate the trust and con dence you have placed in Home Decorators Collection through the purchase of this umbrella. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Planning Assembly ..............3 Important Safety Instructions ........2 Package Contents ..............4 Save These Instructions ............2 Assembly ..............5 Read All Instructions Before Use ..........2 Operation .......

  • Page 3: Warranty

    Warranty 2 YEAR FRAME AND 5 YEAR FABRIC WARRANTY WHAT IS COVERED We warrant to be free of manufacturing defects to the original purchas WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover is warranty.

  • Page 4: Package Contents

    Pre-Assembly PACKAGE CONTENTS Part Description Quantity Lower Bracket Upper Bracket Base Tube Crank Umbrella Shade Turn Plate Pedal Pedal Tube Side Base Middle Base Upper Base Cover Base Cover Solar Receiver...

  • Page 5: Assembly

    Assembly Pouring Sand and Water Into the Bases Open the side bases (I) and the middle bases (J) in the counterclockwise direction. Pour sand and water into the side bases (I) and the middle bases (J). Close the side bases (I) and the middle bases (J) in the clockwise direction. NOTE: For proper stability of the offset umbrella, please place at least 330.69lbs/150kg of water and sand into the bases, place at least 220.46lbs/100kg of water into the bases.
  • Page 6 Assembly (continued) Pulling Out the Base Tube from the Umbrella Shade Place the umbrella shade (E) on a soft surface. Pull out the base tube (C) from the umbrella shade (E).
  • Page 7 Assembly Assembly (continued) Attaching the Base Tube to the Turn Plate Attach the pedal tube (H) to the turn plate (F) using M6x10 bolt (AA) and hex wrench S5 (GG). Attach the upper bracket (B) onto the lower bracket (A). Attach the turn plate (F) to the brackets (A&B) using M10x30 bolts (DD), M10 washers (EE) and hex wrench S8 (FF).
  • Page 8 Assembly (continued) Attaching the Middle Bases to the Brackets Attach the middle bases (J) onto the brackets (A&B).
  • Page 9 Assembly Assembly (continued) Attaching the Side Bases to the Brackets Attach the side bases (I) onto the brackets (A&B). HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance...
  • Page 10 Assembly (continued) Inserting the Base Cover and the Upper Base into the Base Tube Insert the base cover (L) and the upper base cover (K) into the base tube (C).
  • Page 11 Assembly (continued) Connecting the Pedal to the Pedal Tube Connect the pedal (G) to the pedal tube (H) using M6 x10 bolt (AA) and hex wrench S5 (GG). HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance...
  • Page 12 Assembly Assembly (continued) Attaching the Solar Receiver to the Umbrella Shade Insert the plug into the plug hole of the solar receiver (M). Attach the solar receiver (M) to the umbrella shade (E) by turning the solar receiver (M) clockwise until fully tightened.
  • Page 13 Assembly (continued) Inserting the Umbrella Shade into the Base Tube Insert the umbrella shade (E) into the base tube (C) using M6x20 bolt (BB) and hex wrench S5 (GG). HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance...
  • Page 14 Assembly (continued) Attaching the Crank to the Umbrella Shade Attach the crank (D) to the umbrella shade (E). Press the button on the umbrella shade (E) and push up to desired position.
  • Page 15 Assembly Assembly (continued) Opening the Umbrella Shake the umbrella fabric before opening the umbrella. Press the button on the umbrella shade (E) and slowly turn the crank (D) clockwise to open the umbrella. HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance...
  • Page 16 Assembly (continued) Turn the LED Light On and Off Press the ON/OFF switch to turn the LED light on and off. ON-OFF...
  • Page 17 Assembly (continued) Rotating the Umbrella Hold the pedal (G) with one foot and rotate the umbrella pole (The umbrella can rotate up to 360 degrees). HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance...
  • Page 18 Assembly Assembly (continued) Tilting the Umbrella To tilt the umbrella, press the button on the umbrella shade (E) and push up or push down to desired position.
  • Page 19 Assembly (continued) Closing the Umbrella Slowly turn the crank (D) in a counterclockwise direction to close the umbrella. Press the button on the umbrella shade (E) and push down. HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance...
  • Page 20 Assembly (continued) Tying the Umbrella to the Umbrella Pole Tie the umbrella to the umbrella pole with the Velcro belt when not in use, as shown below.

  • Page 21: Operation

    Operation Attaching and Detaching the Crank Attach the crank (D) without using the tap as shown in figure 1. To detach the crank (D), just take the crank out. Attach the crank (D) to the handle as shown in figure 2. Attach the crank (D) by aligning the tap with the hole on the crank (D) until it snaps into place.

  • Page 22: Care And Cleaning

    Care and Cleaning For best results, clean the umbrella with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrasive materials, bleach, or solvents. Store the umbrella in a dry sheltered place when not in use.
  • Page 23 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use. Factory Umbrella ID# URM062002...
