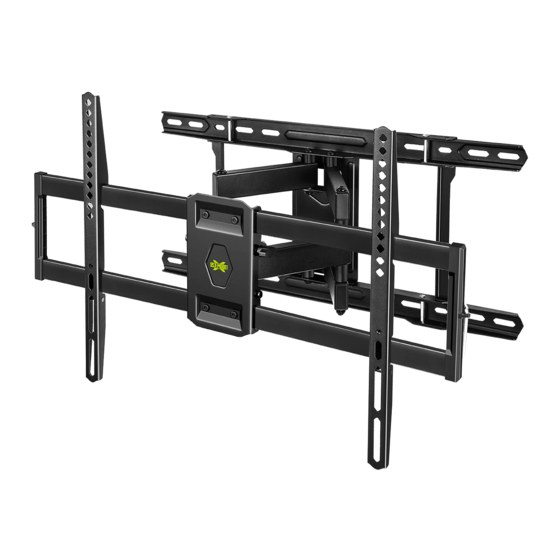

- Page 1 XML006-24K INSTRUCTION MANUAL For 42-80" TV If you have any questions along the way, just give us a call 1-800-460-0956 or mail to customerservice@x-mount.com. We’re ready to help!
- Page 3 TV INTERFACE 200mm 15mm [7.87in] [0.59in] 400mm [15.74in] 600mm [23.62in] WALL PLATE TOP VIEW - EXTENDED SIDE VIEW - EXTENDED 609.6mm Ø9mm [24in] 15° 5° [Ø0.35in] 177mm [6.97in] 372mm 282.7mm 245.2mm [11.13in] [9.65in] [14.66in] 406.4mm [16in] 649.3mm [25.56in] SIDE VIEW - RETRACTED FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED 683mm...
- Page 4 WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.
- Page 6 1-2 Need Spacer? 1-1 Select TV Screws No, go to PAGE 7 for detailed combination. Bracket Short Screw Washer TV back Yes, go to PAGE 7 for detailed combination. Long Screw Washer Spacer Bracket TV back...
- Page 7 1-3 Attach the TV Brackets Screw and washer Spacer(s), screw(s) and washer(s) Tips: If you need to combine M8( c / f ) screw with 2.5mm spacer( j ), you have to remove the inner circle.
- Page 8 Attach Wall Plate to Wall Wood Stud Option CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall, must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm) ●...
- Page 9 3. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit. IMPORTANT: Pilot holes must be drilled to a depth of 2.5 in. (64 mm). Be sure to drill into the center of the studs. 4. Install wall plate using four lag bolts and four washers .
- Page 10 Attach Wall Plate to Solid Concrete Wall CAUTION: Avoid potential personal injury or property damage! ● Mount the wall plate assembly directly onto the concrete surface ● Minimum solid concrete thickness: 8 in. (203 mm) 1. Position the wall plate on the wall at your desired height.
- Page 11 3. Insert four anchors CAUTION: Be sure the anchors are seated flush with the concrete surface. 4. Insert wall plate using four lag bolts and washers .Tighten the lag bolts only until they are pulled firmly against the wall plate. CAUTION: Improper use could reduce the holding power of the lag bolt.
- Page 13 Before hanging TV, please try to pull the mount to make sure that it has been assembled on the wall tightly. 99 LBS (45 kg)
- Page 14 Hang TV/bracket assembly onto wall plate , wrap clips on bracket around extension arms and tighten them using bolts HEAVY! You may need assistance with this step.
- Page 15 6-1 TV leveling adjustment (±4°): Loosen 4 leveling bolts on the rear of TV plate by maximum 2 turns, adjust to level, and retighten to secure. Loosen Tighten...
- Page 16 6-2 Tilting angle adjustment (+5°/-15°) ： Loosen handle and tilting bolt, adjust TV to your desired position, then tighten handle and tilting bolt. Tilting bolts Tighten Loosen +5° -15°...
