Summary of Contents for USX-MOUNT XML009-1

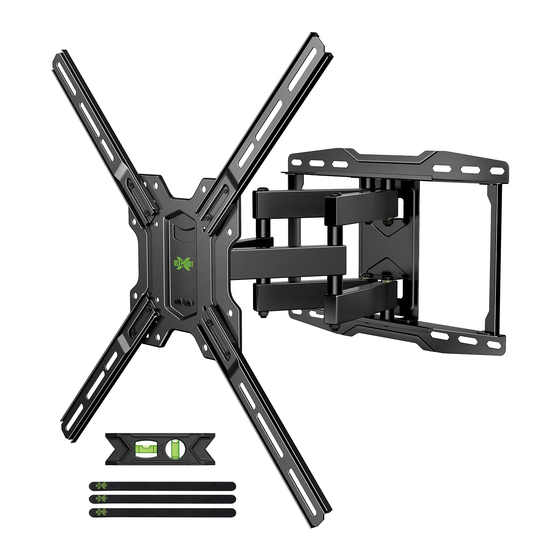

- Page 1 XML009-1 INSTRUCTION MANUAL For 42-75" TV If you have any questions along the way, just give us a call 1-800-460-0956 or mail to customerservice@x-mount.com. We’re ready to help! USA-A1...
- Page 2 Before getting started, let’s check below lists to make sure it is just right for you! MAX:600mm/23.62" (MIN:100mm/3.94") Check your TV VESA is within No? This mount is NOT compatible. Min and Max size MAX:400mm/15.74" (MIN:100mm/3.94") Yes? Perfect ! CAUTION: DO NOT exceed the maximum weight Does your TV No? Perfect –...
- Page 3 TV INTERFACE 600mm [23.62in] 100mm 400mm [3.94in] [15.75in] 100mm [3.94in] WALL PLATE TOP VIEW - EXTENDED SIDE VIEW 417mm [16.42in] 173mm +5° [6.82in] 386mm 285mm 236mm [15.20in] [9.29in] [11.22in] [0.35in] -15° 304mm [11.97in] SIDE VIEW FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED 565mm [22.24in] 285mm...
- Page 4 WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.
- Page 5 Parts and Hardware for STEP 2 Wall Plate Lag Bolt M8 Washer Contact us at telephone 1-800-460-0956 (USA) or mail to customerservice@x-mount.com. to have these additional pieces shipped directly to you. Concrete Wall Anchor 4pcs Allen Key M6x8mm Bolt M6x10mm Bolt Velcro x3...
- Page 6 1-1 Choose Correct Configuration Per VESA Size on the Back of Your TV. If your TV VESA size is bigger than 200x200, you must use allen key and bolts to attach 4pcs of extenders onto TV plate Option 2 Option 1 ④...
- Page 7 Option 5 Option 6 300X300 400X300 600X400 400X400...
- Page 8 1-2 Select TV Screws...
- Page 9 1-3 Need Spacer? 1-4 Attach the TV Plate No, choose suitable screws and washers. VESA ≤ 200mm x 200mm Yes, choose suitable screws, washers and spacers. Tips: If you need to combine M6/M8(c/e/f) screws with 2.5mm spacers( i ), you have to remove the inner circle. 200mm x 200mm <...
- Page 10 CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall, must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm) ●...
- Page 11 3. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit. IMPORTANT: Pilot holes must be drilled to a depth of 2.5 in. (64 mm). Be sure to drill into the center of the studs. 4. Install wall plate using four lag bolts and washers .
- Page 12 CAUTION: Avoid potential personal injury or property damage! ● Mount the wall plate assembly directly onto the concrete surface ● Minimum solid concrete thickness: 8 in. (203 mm) 1. Position the wall plate on the wall at your desired height. Level the wall plate and mark the hole locations.
- Page 13 3. Insert four anchors. CAUTION: Be sure the anchors are seated flush with the concrete surface. 4. Insert wall plate using four lag bolts and washers .Tighten the lag bolts only until they are pulled firmly against the wall plate. CAUTION: Improper use could reduce the holding power of the lag bolt.
- Page 14 Before hanging TV, please try to pull the mount to make sure that it has been assembled on the wall tightly. Wall plate...
- Page 16 5-1 TV leveling adjustment (±4°): Loosen 2 leveling bolts on the rear of TV plate by maximum 2 turns, adjust to level, and retighten to secure. ±4 ° Loosen Tighten...
- Page 17 5-2 Tilting angle adjustment (+5°/-15°) ： Loosen handle and tilting bolt, adjust TV to your desired position, then tighten handle and tilting bolt. Put the handle level when finish. Level Handle +5° -15° +5° Tilting bolts Tilting bolts Tighten -15° Tighten Loosen Loosen...
- Page 18 Cables manage: Manage TV cables orderly and guide them through the velcros. Velcro...
