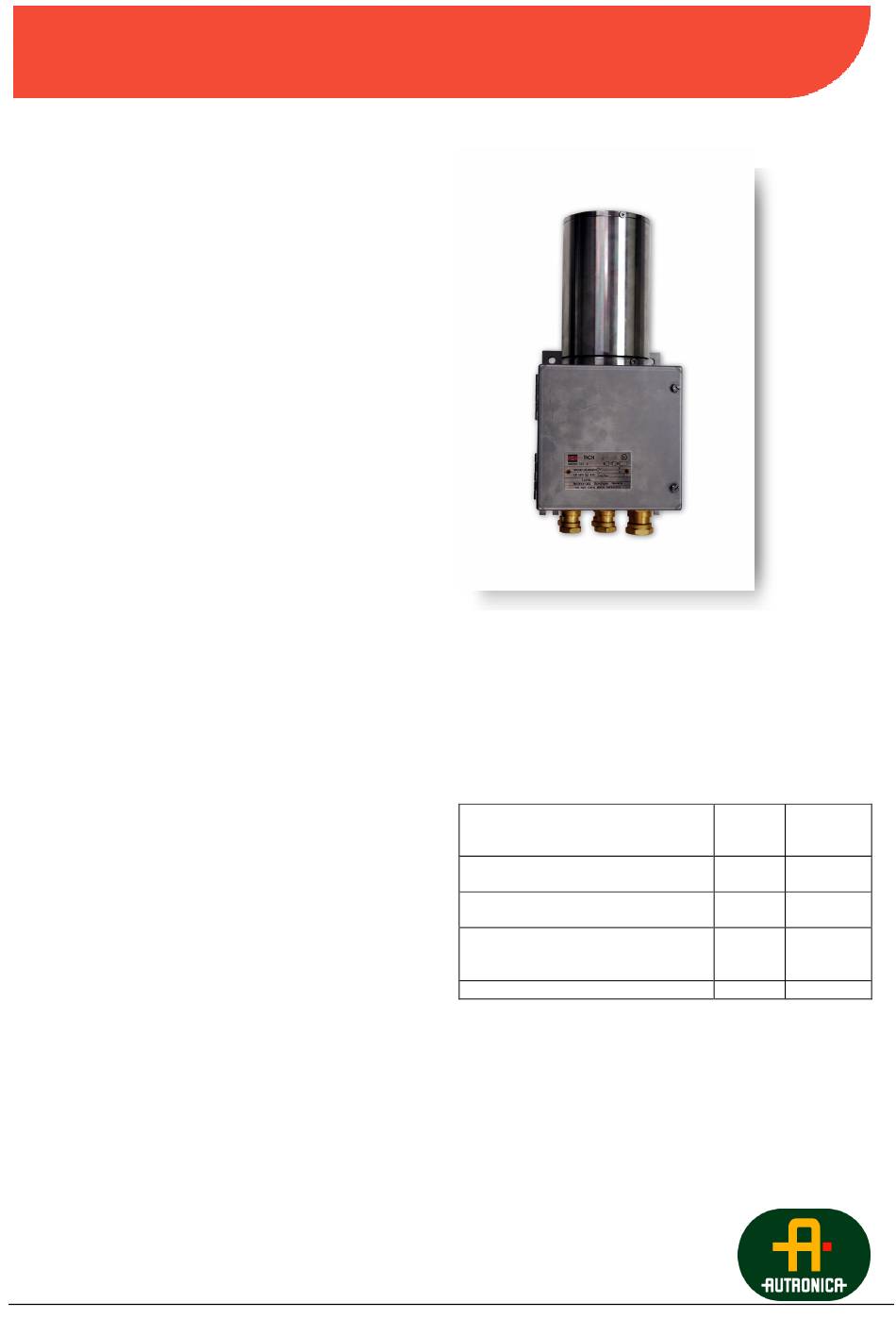

AutroSafe

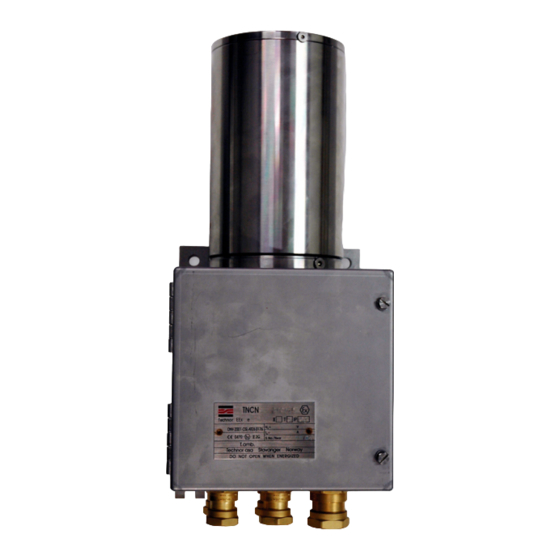

AUTROFIELDBUS Protocol Converter EEx de BSD-321/EX
Declaration of conformity and instructions
Features
•
Interfaces various types of flame and gas detectors
with the AutroSafe I
System
•
The AUTROFIELDBUS address and protocol type
are easily defined by means of switches
•
RS-485 connection to detectors
•
Built-in protocol converters
•
Trending and maintenance facilities
•
Approved by NEMKO
EEx de version for mounting in hazardous areas:
•
zone 1 and 2
Application / Description
The BSD-321/EX can be configured to interface
various types of detectors into the AutroSafe Inte-
grated Fire and Gas Detection System.
BSD-321/EX contains a protocol converter for the
specific type of detector to be interfaced. All events
such as alarms, prealarms and fault warnings are
transmitted to the AutroSafe Integrated Fire and Gas
Detection System.
Depending on the specific detector, analogue read-
ings of gas concentration, for example, are also
transmitted for trending and maintenance purposes.
The built-in short-circuit isolator of AUTROFIELDBUS
will, together with the ring topology, ensure that neither
a single short-circuit nor a wire break will cause loss of
functionality.
Furthermore, the BSD-321/EX provides optional
AUTROFIELDBUS earth fault detection.
The BSD-321/EX basic model has RS485 communi-
cation ports for interfacing field equipment.
There can be a maximum of 31 BSD-321/EX units on
each AUTROFIELDBUS ring.
P-BSD321/EX/CE 050310
ntegrated Fire and Gas Detection
Overview Protocol Type and Interface Switches
Settings
The AUTROFIELDBUS address and type of
protocol/detector are defined by on-board rotary
switches.
Type of interface
AutroPath Pulsar,
Open Path Gas Detector
SafeEye series 200/300,
Open Path Gas Detector
AutroFlame CCTV Flame
Detector and Video Switches
Kidde Fenwal AnaLaser II HSSD
1)
To select protocol type: Set address switches according to
table, then press reset button. After choosing protocol set
the address switches to the actual address in the range of
1-31.
Protecting life, environment and property...
Switch
Max no of
setting
units/
1)
BSD-321
70
16
71
16
72
27 camera
2 video
switches
73
16
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Autronica AutroSafe BSD-321/EX
Summary of Contents for Autronica AutroSafe BSD-321/EX
- Page 1 AutroSafe AUTROFIELDBUS Protocol Converter EEx de BSD-321/EX Declaration of conformity and instructions Features • Interfaces various types of flame and gas detectors with the AutroSafe I ntegrated Fire and Gas Detection System • The AUTROFIELDBUS address and protocol type are easily defined by means of switches •...
- Page 2 Oil & Gas, Stavanger, Norway. Phone: + 47 51 84 09 00, fax: + 47 51 84 09 99 Maritime Sales, Spikkestad, Norway. Phone: + 47 31 29 55 00, fax: + 47 31 29 55 01 Visit Autronica Fire and Security’s website: www.autronicafire.com...
- Page 3 Oil & Gas, Stavanger, Norway. Phone: + 47 51 84 09 00, fax: + 47 51 84 09 99 Maritime Sales, Spikkestad, Norway. Phone: + 47 31 29 55 00, fax: + 47 31 29 55 01 Visit Autronica Fire and Security’s website: www.autronicafire.com...
- Page 4 Oil & Gas, Stavanger, Norway. Phone: + 47 51 84 09 00, fax: + 47 51 84 09 99 Maritime Sales, Spikkestad, Norway. Phone: + 47 31 29 55 00, fax: + 47 31 29 55 01 Visit Autronica Fire and Security’s website: www.autronicafire.com...
- Page 5 Oil & Gas, Stavanger, Norway. Phone: + 47 51 84 09 00, fax: + 47 51 84 09 99 Maritime Sales, Spikkestad, Norway. Phone: + 47 31 29 55 00, fax: + 47 31 29 55 01 Visit Autronica Fire and Security’s website: www.autronicafire.com...
-
Page 6: Installation / Dismantling
4. Inspect the o-ring on the bottom part, we recommend that this o-ring is replaced upon every opening of the enclosure, note new o-ring to be purchased by Autronica. 5. Before assembly the o-ring and threads to be protected with copper grease or other approved greases.
