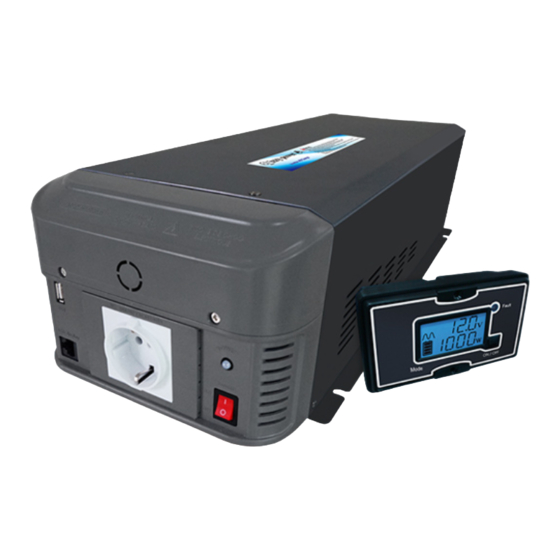

Hon Turing HT-B-S1000-12 User Manual

Inverter / Charger (bypass function)
HT-B-S1000
Firstly, thank you for purchase our product.
Please read this manual carefully before installing or using this product.

Specification

Model No.:
Inverter
DC input volt:
Volt range:
Surge power:
Continuous power:
Wave form:
THD:
AC voltage:
Frequency:
AC Regulation:
DC no load current:
Bat. low alarm:
Bat. low shutdown:
Over voltage:
Bat . Polarity Reverse:
Over load:
USB port:
Efficiency:
Bypass function:
Low AC input volt transfer to inverter mode.:
Low AC input volt recovery to AC mode.:
Input AC terminal:
Output AC Terminal:
Connector
Output Receptacles:
Charger
Output current:
AC input volt:
Charging type:
Bulk stage:
Absorption stage:
Float stage:
Frequency:
Recommended Battery Type:
Recommended Battery Size:
Efficiency:
PROTECTION
Over load protection:
Over temp protection:
Inverter input reverse protection:
Charger output reverse protection:
Inverter output short circuit protection:
Over temperature:
ENVIRONMENT
Working temp.:
Storage temp.:
Working humidity:
Storage humidity:
Temp. Coefficient:
OTHERS
Dimension(LxWxH)
Net weight
Optional
EXTRA FUNCTION
Model no.
Solar charger controller:
Net weight:

Introduction

The Inverter/Charger series are the member of the
most advanced line of mobile AC power systems
available.
This model is used in a wide range of application
including remote homes, RVs, sailboats and
powerboats. It will operate most televisions and
VCR's, personal computers, small appliances and
tools such as drills, sanders, grinders, mixers and
blenders.
Damage caused by reversed polarity is not covered by the
!
warranty.
LCD Display
HT-B-S1000-12
12V
10-16VDC
2000W
1000W
Pure sine wave
<2%
100V
50/60Hz±3%
±8%(100V:±10%)
0.9A
10.5±0.5V
10±0.5V
16±0.5V
Fuse burn out
Re-start 1 time, shutdown if failed
5V / 2A
85%
Yes
90Vac+/-5% or 180Vac+/-5%
95Vac+/-5% or 190Vac+/-5%
Yes, hard wiring.
Yes, hard wiring.
Yes
10A
120V(90-135V) / 230V(180-265V)
multistage
14.5±0.5V, 10A
14.5±0.5V, 10A-1A
13.6±0.5V, min. 0.5A
45-65Hz
Lead acid
40-160AH
80%
Yes
Yes
Fuse blow
Fuse blow
Shut-off
55°C ±5°C
-15°C ~45°C
-25°C ~70°C
20%~90% RH non-condensing
-30°C ~70°C,10~95% RH
±0.05%°C(0~55°C)
520*215*130mm
6.7kgs
HT-B-S1000SC-12
20A(PWM)
6.9kgs
To get the most out of the inverter/charger,
it must be installed and used properly.
Please read the instructions in this manual
before installing and using this model.
1. Front view
a. ON/OFF switch:
Leave in the OFF position during installation.
b. Over heat protection:
LED sparkles when product temperature gets
(Front view)
USB Port Power indicator
AC Output
Receptacle
/ 120V / 230V

Name and Main function

AC Input & AC
Output terminal.
ON/OFF
SWITCH
(Rear view)
Standard (no solar charger controller)
Input for inverter
DC
Output for charger
-
Battery
Connect to battery or other power source.
"+" is positive (Red),
"-" is negative(Black),
Reverse polarity connection will blow internal
fuse and may damage inverter permanently.
With solar charger controller
Solar Connector
-
Battery
PV
PV
connector
Solar Charger Controller Led
high, it would shut down automatically while
temperature arrives 55±5°C.
c. Overload protection:
Orange LED lights when inverter/charger
shut down due to overloading. Inverter would
re-start one time, if failed, inverter would shut
down. Please turn inverter OFF, reduce load
and turn inverter ON to reset.
d. AC socket:
Outlet sockets available: Australia
2. Rear view:
a. Ventilation window:
Do not obstruct, allow at least one inch for
airflow.
b. Battery terminals:
Connect to 12V battery or other 12V power
source. "+" is positive, "-" is negative.
Breaker
+
Battery
Warning:
Don't reverse the (+)
and (-) of the battery,
or internal damage.
E A R T H
Battery terminals
Ventilation window
Do not obstruct, allow at least
one inch for airflow.
+
Battery
Warning:
Don't reverse the (+)
and (-) of the battery,
or internal damage.
E A R T H
NZ
North America
Europe
Universal
Japan
