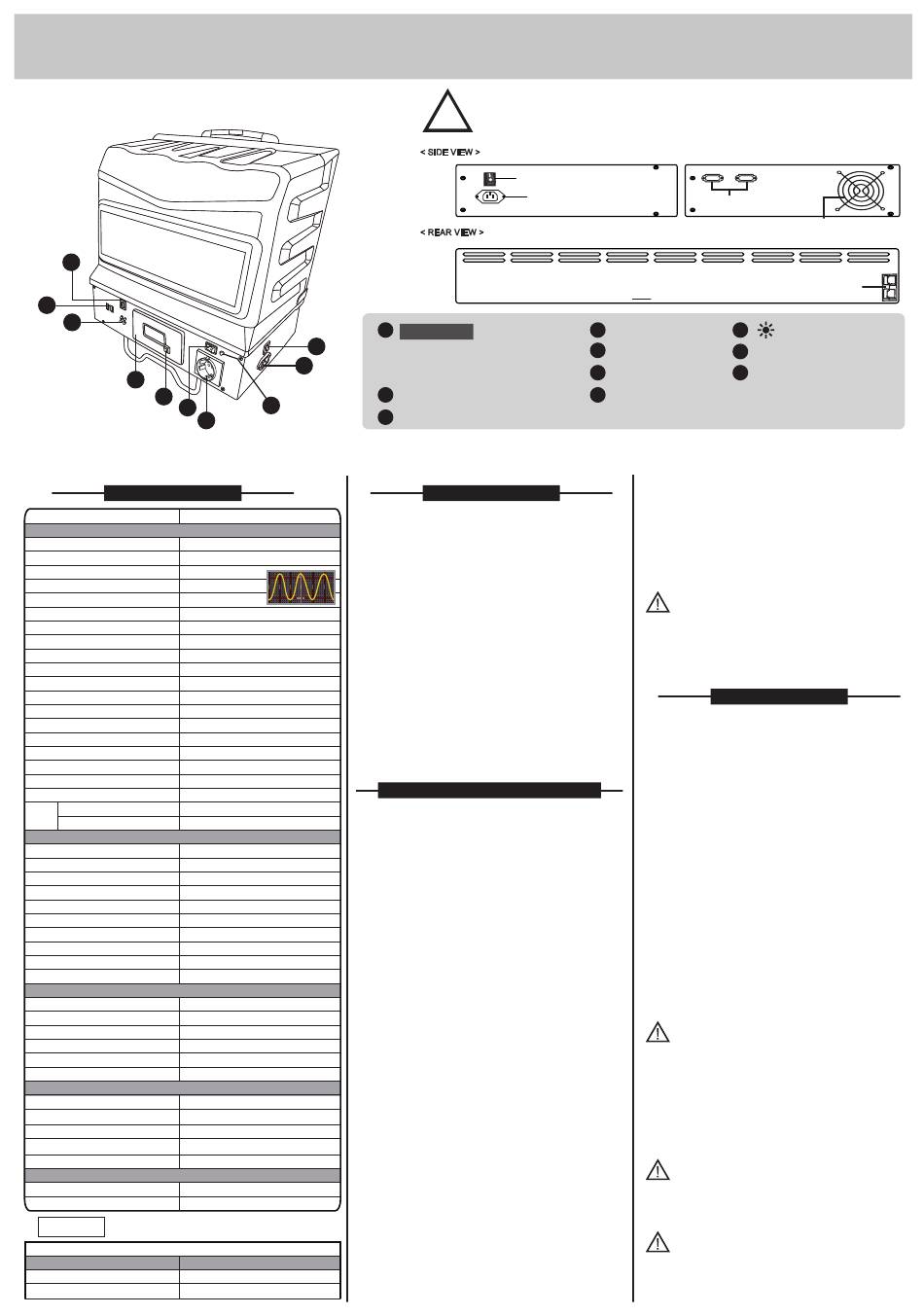

Hon Turing HT-T-S1000-12 Introduction

Inverter / Charger (by pass function)

HT-T-S1000
1
2
3
4
5
6
Firstly, thank you for purchase our product.
Please read this manual carefully before installing or using this product.

Specification

Model No.: HT-T-S1000-12
Inverter
DC input volt:
12V
Volt range:
10-16VDC
Surge power:
2000W
Continuous power:
1000W
Wave form: Pure Sine Wave
AC voltage:
100V / 120V / 230V
Frequency:
50/60Hz±3%
AC Regulation:
±8%(100V:±10%)
DC no load current: 0.9A
10.5±0.5V
Bat. low alarm:
Bat. low shutdown: 10±0.5V
Over voltage: 16±0.5V
Bat . Polarity Reverse: Fuse burn out
Over load: Re-start 1 time, shutdown if failed
5V / 3A max
USB port:
Efficiency: 85%
Bypass function: Yes
90Vac+/-5% or 180Vac+/-5%

Low AC input volt transfer to inverter mode.:

95Vac+/-5% or 190Vac+/-5%

Low AC input volt recovery to AC mode.:

Input AC Plug: Yes
Connector
Output AC Receptacle: Yes
Charger
Output current:
10A
AC input volt:
120V(90-135V) / 230V(180-265V)
Charging type: Multistage
Bulk stage:
14.5±0.5V, 10A
Absorption stage:
14.5±0.5V, 10A-1A
Float stage:
13.6±0.5V, min. 0.5A
Frequency:
45-65Hz
Recommended Battery Type: Lead acid
Recommended Battery Size:
40-160AH
Efficiency:
80%
PROTECTION
Over load protection: Yes
Yes
Over temp protection:
Inverter input reverse protection: Fuse blow
Charger output reverse protection: Fuse blow
Inverter output short circuit protection:
Shut-off
Over temperature:
55°C ±5°C
ENVIRONMENT
Working temp.:
-15°C ~45°C
Storage temp.: -25°C ~70°C
Working humidity: 20%~90% RH non-condensing
Storage humidity:
-30°C~ 70°C,10~95% RH
Temp. Coefficient:
±0.05%°C(0~55°C)
OTHERS
Dimension(LxWxH): 403x340x455mm
Net weight: 9.0kgs(without battery)
Optional

EXTRA FUNCTION

Model no. HT-T-S1000SC-12
Solar charger controller: 20A(PWM)
9.2kgs
Net weight:
10
9
8
7
The Inverter/Charger series are the member
of the most advanced line of mobile AC
power systems available.
This model is used in a wide range of
application including remote homes,
RVs, sailboats and powerboats. It will
operate most televisions and VCR's,
personal computers, small appliances and
tools such as drills, sanders, grinders, mixers
and blenders.
To get the most out of the inverter/charger,
it must be installed and used properly.
Please read the instructions in this manual
before installing and using this model.

1. Front view

a. ON/OFF switch:
Leave in the OFF position during installation.
b. Over heat protection:
When product temperature gets high, it would
shut down automatically while temperature
arrives 55±5°C.
c. Overload protection:
When inverter/charger shut down due to
overloading. Inverter would re-start one time,
if failed, inverter would shut down. Please turn
inverter OFF, reduce load and turn inverter
ON to reset.
d. AC socket:
Outlet sockets available: Australia

2. Rear view:

a. Ventilation window:
Do not obstruct, allow at least one inch for
airflow.
Damage caused by reversed polarity is not covered by the warranty.
!
Damage caused by wrong AC input volt to charger is not covered by
the warranty.
< SIDE VIEW >
Breaker
Charger AC Input
< REAR VIEW >
1
Light Switch
● ON permanently
● OFF
● ON only when AC power is failed
2
USB Port (2A/5V)
3
Emergecy Light
Introduction

Name and Main function

NZ
North America
Europe
Universal
Japan
Fuse
Thermal cooling fan
• DC Terminal: 30A charging current max.
( for more battery connection.)
• Solar Terminal
( ONLY with solar charger controller function.)
4 8
Display
5
Power LED 9
Charger AC Input Port
6
ON/OFF Switch
Breaker
10
7
Inverter / City Power AC
Output Receptacle
b. Battery terminals:
Connect to 12V battery or other 12V power
source. "+" is positive, "-" is negative.
Reverse polarity connection will blow internal
fuse and may damage inverter/charger
permanently.
WARNING!!
Operation of the inverter/charger without a
proper ground connection may result in an
electrical safety hazard.

Installation

1. Where to install

The inverter/charger should be installed in a
location that meets the following requirements:
a. Dry - Do not allow water to drip or splash
on the inverter/charger.
b. Cool - Ambient air temperature should
be between -15°C ~ 45°C, the cooler
environment is better.
c. Ventilated - Allow at least 3 inch (15cm)
of clearance around the inverter for airflow.
Ensure the ventilation openings on the rear
and bottom of the unit are not obstructed.
d. Safe - Do not install the inverter/charger
in the same compartment as batteries or
in any compartment capable of storing
flammable liquids such as gasoline.
CAUTION!!
This equipment is not ignition protected and
employs components that tend to produce
arcs or sparks. To reduce the risk of fire or
explosions, do not install in compartments
containning batteries or flammable materials
or areas in which ignition protected equipment
is required.
CAUTION!!
To reduce the risk of electric shock and
prevent premature failure due to corrosion,
do not mount where exposed to rain or spray.
CAUTION!!
To prevent fire, do not obstruct ventilation
openings. Do not mount in a zero clearance
Terminal
Solar Charger Controller Led
