Zte Telstra MF985T User Manual

4gx wi-fi hotspot
Hide thumbs Also See for Telstra MF985T:

Advertisement

Table of Contents

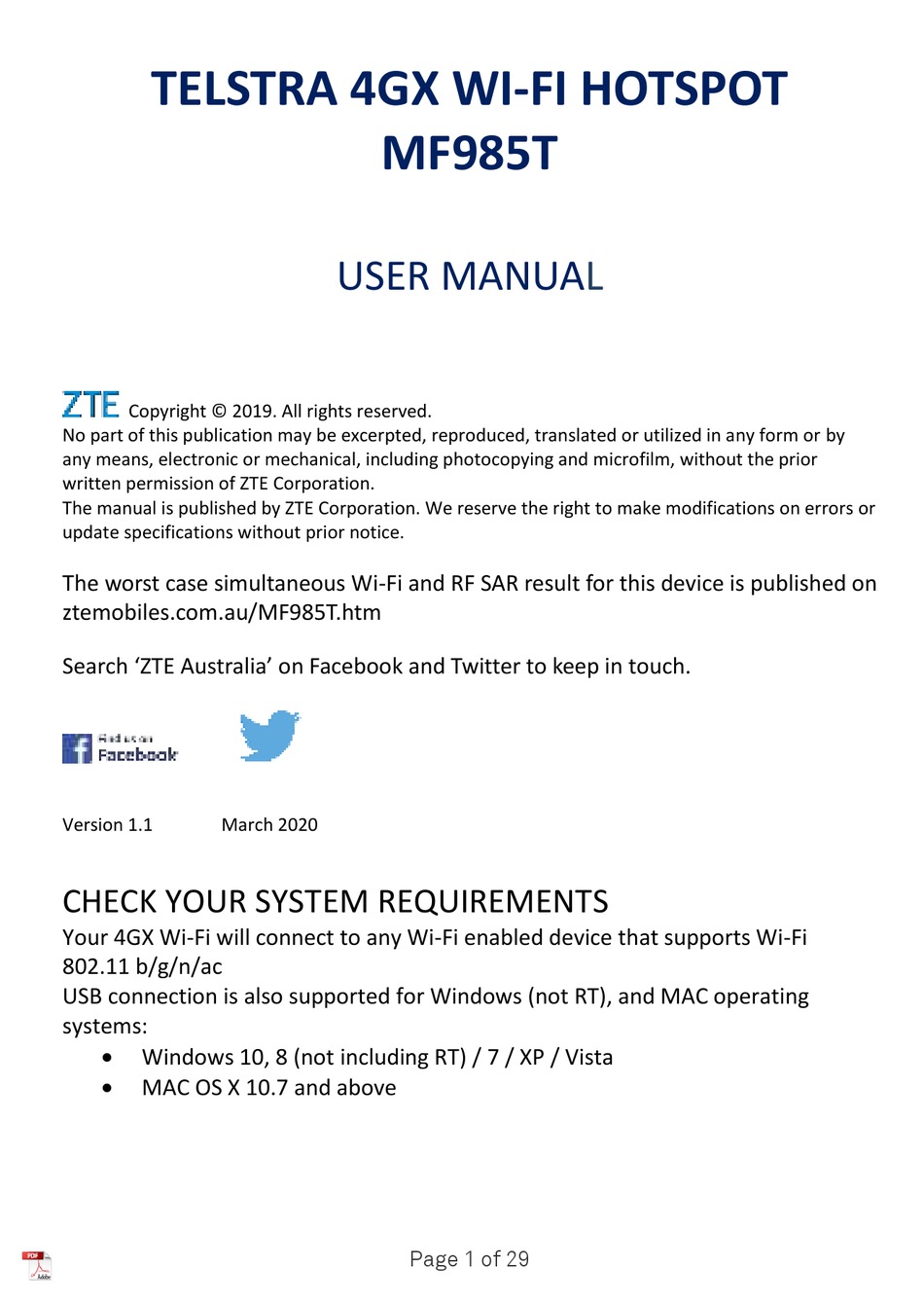

TELSTRA 4GX WI-FI HOTSPOT
Copyright © 2019. All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make modifications on errors or
update specifications without prior notice.
The worst case simultaneous Wi-Fi and RF SAR result for this device is published on
ztemobiles.com.au/MF985T.htm
Search 'ZTE Australia' on Facebook and Twitter to keep in touch.
Version 1.1
March 2020
CHECK YOUR SYSTEM REQUIREMENTS
Your 4GX Wi-Fi will connect to any Wi-Fi enabled device that supports Wi-Fi
802.11 b/g/n/ac
USB connection is also supported for Windows (not RT), and MAC operating
systems:
Windows 10, 8 (not including RT) / 7 / XP / Vista
MAC OS X 10.7 and above
MF985T
USER
MANUAL
Page 1 of 29

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Telstra MF985T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zte Telstra MF985T

Summary of Contents for Zte Telstra MF985T

  • Page 1 ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on errors or update specifications without prior notice. The worst case simultaneous Wi-Fi and RF SAR result for this device is published on ztemobiles.com.au/MF985T.htm...

  • Page 2: Get To Know Your Device

    GET TO KNOW YOUR DEVICE INSERT YOUR SIM CARD This device supports a nano SIM card ONLY (4FF). The SIM card is pre-installed and needs to be activated. You may need this information if you need to replace or check your SIM card. 1.
  • Page 3 TIPS Remember to keep your plastic SIM card holder. It has a record of your SIM card details which you should keep handy. The Reset button is located under the battery cover. With the device switched on, press the Reset button until the screen go out. A reset will restore all settings to factory default.
  • Page 4 rates or low network signal, charging by USB will not have sufficient current to charge the device. In this situation the battery will discharge so it is preferable to use the mains charger.  Always insert and remove the charging lead with care and take care not to trip or pull on the lead harshly which could damage your device.

  • Page 5: Quick References

    4. With Connect Automatically enabled your computer will remember the password and connect to your Wi-Fi device when it is on and in range. If you cannot log on via Wi-Fi, connect using the USB connection where you can check your Wi-Fi settings, or update your password. See later for details. QUICK REFERENCES http://m.home (or http://192.168.0.1) Browser...

  • Page 6: Using The Touch Screen

    USING THE TOUCH SCREEN  Press the power key to light up the display.  Press and hold the unlock symbol to unlock the screen.  The screen shows your current data usage and three icons. Touch the icons to access those features, scroll down when appropriate to view all the settings available.
  • Page 7 SETTINGS For detailed changes and further configuration please go to the device web interface. WEB INTERFACE, MODEM HOMEPAGE  Connect any device to the modem and open a browser.  Enter m.home or 192.168.0.1 in the browser address bar to open the modem homepage.

  • Page 8: International Roaming

     If you have problems with the installation please contact your supplier or see our website, ztemobiles.com.au for more assistance and FAQ’s or call our hotline on 1300 789 475 (ZTE Support hotline is available during normal business hours, AEST 10am to 4pm) Page 8 of 29...

  • Page 9: Web Interface Guide

     If you can’t connect to the internet check your SIM card is inserted correctly, contact your service provider and check your account is active.  To uninstall the application: Windows users: Start > All Programs > TELSTRA 4GX WI-FI > Uninstall MAC Users: ...
  • Page 10 SETTINGS > QUICK SETTINGS Step through the Quick Settings wizard to quickly review your current default settings. SETTINGS > NETWORK SETTINGS > WAN CONNECTION MODE: Page 10 of 29...
  • Page 11 The default connection setting will automatically connect to the network. The setting is greyed out if you are connected.  Press the Disconnect button to change this setting and to enable International Roaming if required.  If you make any changes, press Apply to save the change ...
  • Page 12 SETTINGS > APN:  Press Disconnect to disconnect from the Network  Press Add New to create a new APN  Add the Profile Name, eg Telstra WAP  Enter the correct APN details eg telstra.wap  Press Save to save your new APN ...
  • Page 13 may not be able to connect to the network.  Consult your new carrier to obtain alternate APN details for your device. SETTINGS > WI-FI SETTINGS > BASIC SETTINGS: The SSID is the Wi-Fi Network Name for your device  You can change the SSID to something more memorable or personal ...
  • Page 14 SETTINGS > WI-FI SETTINGS > ADVANCED SETTINGS  You can change the Wi-Fi settings to suit your personal choices or for specific requirements of your attached devices.  Press Apply to save your changes  Press the Help icon to get in context tips SETTINGS >...
  • Page 15  WPS is enabled for 2 minutes once pressed and the device LED’s will flash to indicate WPS mode.  If you have enabled PIN mode then you need to enter the same PIN on devices you wish to connect. ...
  • Page 16 SETTINGS > DEVICE SETTINGS > USIM PIN MANAGEMENT:  Enter your current PIN code to change or disable the PIN  If you make any changes, press Apply to save the change  If you enter the incorrect PIN code three times in succession you will lock your SIM card.
  • Page 17 SETTINGS > DEVICE SETTINGS > POWER SAVE  If there is no Wi-Fi traffic detected then the device will switch off Wi-Fi as determined by the Wi-Fi sleep setting.  Set Wi-Fi sleep time to Never Sleep to keep the Wi-Fi always on. ...
  • Page 18  You need to be in the Connected state to download new versions.  Press the Update Now button to see if there are software updates for your device.  Roaming Settings control if the device will update when roaming. This is disabled to reduce high data charges when roaming.
  • Page 19 SETTINGS > FIREWALL > PORT FORWARDING  Select Enable to turn on the port forwarding settings.  Port forwarding can be used to allow a specific external server or computer access to devices located on your LAN side or to translate a specific incoming port into a different destination port.
  • Page 20 SETTINGS > FIREWALL > UPNP SETTINGS  Universal Plug and Play is a set of networking protocols that permits networked devices, such as personal computers, printers, Internet gateways, Wi-Fi access points and mobile devices to seamlessly discover each other's presence on the network and establish functional network services for data sharing, communications, and entertainment.
  • Page 21 SETTINGS > FIREWALL > DMZ  Enable the DMZ Setting to open up all ports from the WAN side (mobile network) to the LAN side for this particular allocated IP address.  It is advisable to set a Static IP address for this device outside of the DHCP range eg 192.168.0.20 ...
  • Page 22 SETTINGS > ROUTER SETTINGS  Control the IP Range for your network and enable or disable DHCP is required.  Press the Help icon to get in context tips SETTINGS > INTERNET WI-FI  Enable the Wi-Fi router to connect to another Hotspot to share that internet connection.
  • Page 23  Internet Wi-Fi or the WAN side on your hotspot refers to the radio network connection.  When the Internet Wi-Fi Switch option is enabled, it is not possible to disconnect the RF WAN side. The Disconnect button is greyed out. This is because the Wi-Fi Switch function over-rides the manual disconnect feature.
  • Page 24 displayed in the main panel.  View SMS > SMS Settings to enable delivery reports and to check the SMS centre number (read from your SIM card) PHONEBOOK  Click Phonebook to view your SIM card contacts.  Contacts are automatically read into the device but you can also copy and save on your device.
  • Page 25 INFORMATION  View the device IMEI number, Signal strength and other details.  Change the SSID EXTERNAL ANTENNA PORTS  Signal strength can be improved by adding external antennas.  It is preferred to use both ports for best quality reception and service. ...

  • Page 26: Troubleshooting

    TROUBLESHOOTING If you have any problems with your connection or modem please consult the manual and check this section. If the problem still exists contact your service provider or check our website for more details at ztemobiles.com.au Problem Possible Causes Suggested Solution The user interface PC configuration is not...
  • Page 27 centimetres away from such medical devices. Turn the modem off if necessary. Consult a physician or the manufacturer of the medical device before using the modem near such devices.  Be aware of regulations when using the modem at places such as oil refineries or chemical factories, where there are explosive gases or explosive products being processed.
  • Page 28 RF SAFETY INFORMATION The Wi-Fi modem has an internal antenna. For optimum performance with minimum power consumption do not shield the device or cover with any object. Covering the antenna affects signal quality and may cause the modem to operate at a higher power level than needed.

  • Page 29: Technical Specifications

    TECHNICAL SPECIFICATIONS LTE Band 1, 3, 7, 8, 28 Network compatibility UMTS 850, 2100 MHz Chipset 1.2GHZ Qualcomm MDM9240 Wi-Fi 802.11b/g/n/ac Dual band Dimensions 115.1 x 66.1 x 15.5mm. Approx 128g LTE download speeds up to 600Mb/s Data Rates* LTE upload speeds up to 100Mb/s HSPA+ Downlink up to 42Mb/s Battery 3000mAh internal battery, user replaceable...
