FMI LBG12-BM Installation Instructions

CONCRETE LOG MODELS LBG(18,24,30)-BM
Note: Your appliance may vary from model
shown but log placement will be the same.

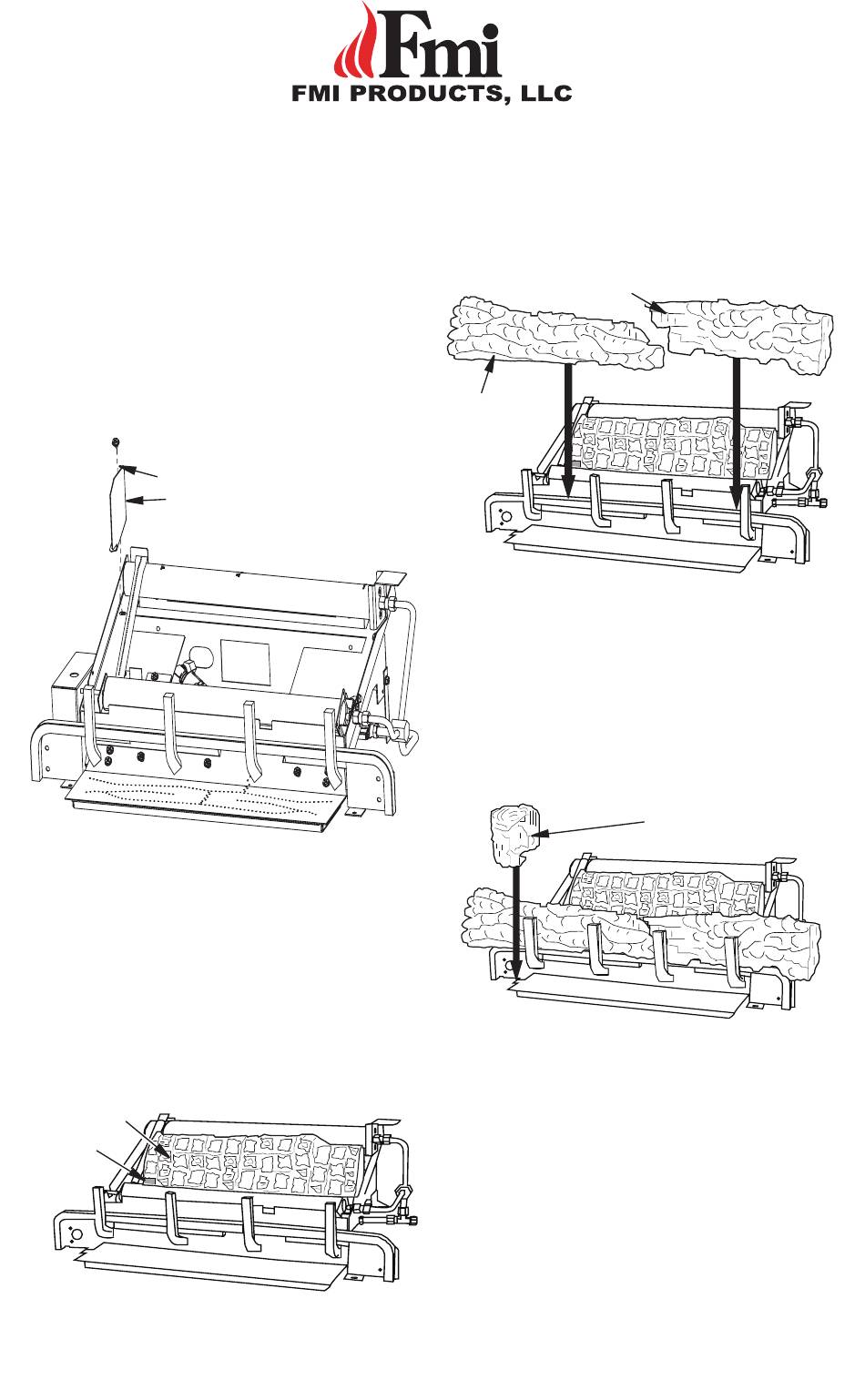

1. Before placing any logs on the chassis you
will need to remove the Air Shield located
on the left side near the rear burner as
shown in Figure 1. The Air Shield is held in
place with one screw, remove the Air Shield
and place the screw back into the hole in
the chassis. Place the Air Shield with you
owner's manual and keep.
Screw
Air Shield
Figure 1 - Removing Air Shield
2. Place fiber ramp log in center of chassis
as shown in Figure 2. The fiber ramp log
can be identified by the shape and much
lighter weight when compared to the other
logs. The log must sit flat on the black
sheet metal and behind the left metal tab
as shown. Make sure the side marked
''BOTTOM'' is setting down.
Ramp Log
Metal
Tab
Figure 2 - Installing Fiber Ramp Log
INSTALLATION INSTRUCTIONS FOR
Save this manual for future reference
3. Place front left (18" D-064, 24" D-057 & 30"
D-038) and front right (18" D-065, 24" D-058
& 30" D-039) logs as shown in Figure 3.
Right Front Log
Left Front
Log
Figure 3 - Installing Left/Right Front Logs
4. Place left ember bed log (18" D-073, 24" &
30" D-048) as shown in Figure 4. The log has
groove on one side that sets on the ember
bed pan. The back side of this log needs to
rest against the front of the base assembly.
Make sure the flame from the ember pan
does not touch the ember bed log.
Figure 4 - Installing Left Ember Bed Log
5. The right ember bed log 24" & 30'' (D-047)
has a hole in the log that sets on the grate
finger and the other end rest on the fire-
place floor, place log as shown in Figure 5,
page 2. The right ember bed logs for 18"
(D-072) has a groove on the side that sets
on the ember bed pan and the back of the
log needs to rest against the front of the
base. Make sure the flame from the ember
pan does not touch the ember bed log.. The
back side of this log needs to rest against
the front of the base assembly, make sure
the flame from the ember pan does not
touch the ember bed log.
Left Ember
Bed Log
