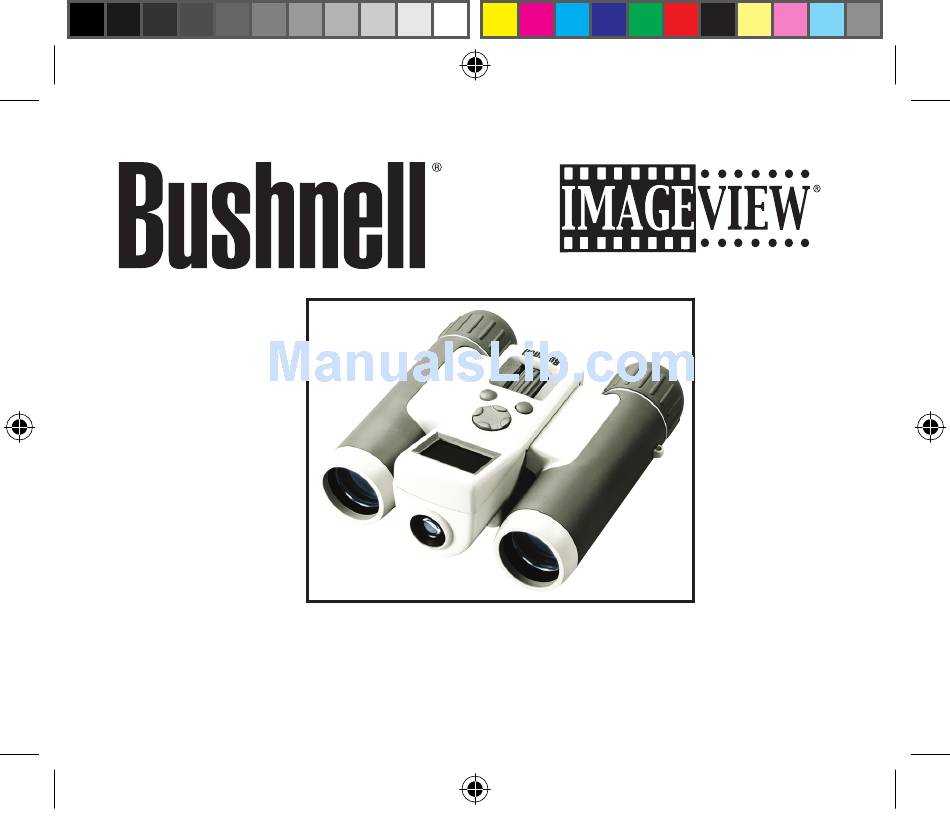

- Page 1 Instruction Manual Model#: 111211 Lit. #: 98-0921/03-07 ImageView 111211 1LIM draft.indd1 1 3/12/07 4:01:02 PM...
- Page 2 NOTE: To reset the camera if you experience problems or if the display becomes unresponsive, remove the batteries for at least one minute, then re-install them. This may result in the loss of all photos/videos stored in the internal memory. ImageView 111211 1LIM draft.indd2 2 WARNING WARNING Do NOT look directly at the sun through your binoculars. Doing so may cause permanent eye damage. 3/12/07 4:01:03 PM...

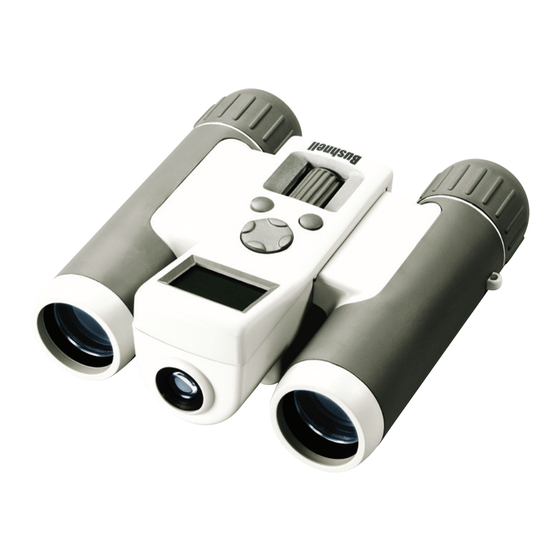

- Page 3 Congratulations on your purchase of the Bushnell ImageView ® binocular! The Bushnell ImageView binocular takes the technology of digital photography and combines it with a high-quality compact binocular. This allows you to observe sporting events, wildlife, scenic vistas or anything you would normally use a binocular for, and then save the image in a built-in attached digital camera. You can then...
-
Page 4: Camera And Binocular Parts Guide
Camera and Binocular Parts Guide Display Mode/Power Button ImageView 111211 1LIM draft.indd4 4 4-Way Snap Keypad Button Diopter Adjust Binocular Focus Remote Card Jack Slot Port Tripod Socket Battery Compartment (Slide Open In Direction of Arrow) 3/12/07 4:01:03 PM... -
Page 5: Setup And Basic Operation
Setup and Basic Operation CAMERA PARTS 1.The camera is powered by two AAA alkaline, lithium, or NiMh batteries (not included). Insert batteries into the compartment, with the springs in contact with the negative (flat) end of each battery. A meter on the display will indicate battery condition when the camera is in use. 2. - Page 6 Using the Optional Settings and Special Features Your ImageView is already set to high resolution and quality right out of the box, and it is not necessary to make any special setting-you will normally get good photos by simply pressing the SNAP button. However, as you might want to shoot a video clip, delete a previous photos, or explore other options, we recommend you review the available optional settings listed on the following pages.
- Page 7 Using the Optional Settings and Special Features To change settings such as resolution and quality, press the MODE button once so that the main screen is displayed. Next, press the "down" button on the 4-way keypad. You will see the first setting screen, resolution. You have two options, high (VGA-recommended) or low resolution. To toggle between these two settings, press the "up"...
-
Page 8: Special Features
Special Features Mode Icon Self-Timer Clock Video Video Camera Sequence Shot Three overlapping frames ImageView 111211 1LIM draft.indd8 8 Settings Description 10 sec delay Press SNAP while clock icon is showing, a photo will be taken after approx. 10 sec delay. This can be used to avoid accidently shaking the camera when the SNAP button is pressed. - Page 9 Mode Icon Resolution 2 Stars (High) or 1 Star (Low) Quality HQ or SQ USB Mode Computer or Camera Line Frequency 60 or 50 ImageView 111211 1LIM draft.indd9 9 Settings/Options (Bold indicates default settings) Settings Description High (640x480 Select High (recommended) or Low resolution, pixels), Low based on your preference for better looking photos (320x240 pixels)
- Page 10 USING THE IMAGEVIEW WITH YOUR COMPUTER: 1. The camera will be recognized as a USB mass storage device (if it is set to "STO" and not "PC"), which means no special drivers are required for all operating systems later than Windows 98 (Me, 2000, XP, Vista.) Mac OS 9 and OSX are also compatible.
-
Page 11: Software Installation
System Requirements (Minimum) OS: Windows® 98/98SE/2000/ME/XP/Vista (PhotoSuite 5 is not compatible with Vista) CPU: MMX Pentium® 200MHZ equivalent or faster ( Memory: 32MB minimum (64MB recommended for PhotoSuite) SVGA video card w/2MB VRAM, 800x600 screen display, 16 bit High color 200 MB available hard disk space (if installing PhotoSuite) Internal USB Port Software Installation... -
Page 12: Transferring The Photos & Videos To Your Pc
Transferring The Photos & Videos to Your PC continued 3. The LCD display will indicate “USB” along with a hard drive icon, and the ImageView will be recognized as a standard “USB Mass Storage” device. This means that the camera files can be easily viewed, edited, or copied to your hard drive, just as if they were stored on an external hard drive or a CD-ROM. - Page 13 Transferring The Photos & Videos to Your PC continued 7. You’re now ready to open the photo files in any photo editing software. Just use File>Open and go to the folder where you stored the photos earlier. If you are using PhotoSuite, select File>Open Photo, then use the “Look in” pull down menu at the top of the Open window, select “My Computer”, select your hard drive, and double click any photo in the folder where you copied the files from the camera.
- Page 14 Always re-set your binocular to this position before using. How to Adjust For Individual Eye Strength As individual eyesight varies from one person to another, most Bushnell binoculars have a diopter setting feature which allows you to fine-tune the binocular to your vision. Follow the focusing instructions below for your type of binocular.
- Page 15 EYECUPS (Figure 3) Your Bushnell binocular is fitted with rubber roll-down eyecups designed for your comfort and to exclude extraneous light. If you wear sun/eyeglasses, roll down the eyecups. This will bring your eyes closer to the binocular lens thus providing improved field of view.
- Page 16 INSTRUCTIONS FOR CARE OF BINOCUlARS Your Bushnell binocular will provide years of trouble-free service if it receives the normal care you would give any fine optical instrument. The Imageview is not waterproof, and should not be exposed to any source of moisture. Water damage is not covered by the warranty.
- Page 17 In the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that you return the product postage prepaid. This warranty does not cover damages caused by misuse, improper handling, installation, or maintenance provided by someone other than a Bushnell Authorized Service Department.
- Page 18 NOTES ImageView 111211 1LIM draft.indd18 18 3/12/07 4:01:07 PM...
- Page 19 ImageView 111211 1LIM draft.indd19 19 3/12/07 4:01:07 PM...
- Page 20 For further questions or additional information please contact: Bushnell Outdoor Products 9200 Cody, Overland Park, Kansas 66214 (800) 423-3537 • www.bushnell.com ©2007 Bushnell Outdoor Products ImageView 111211 1LIM draft.indd20 20 3/12/07 4:01:08 PM...
