Summary of Contents for Bushnell Imageview 11-1025

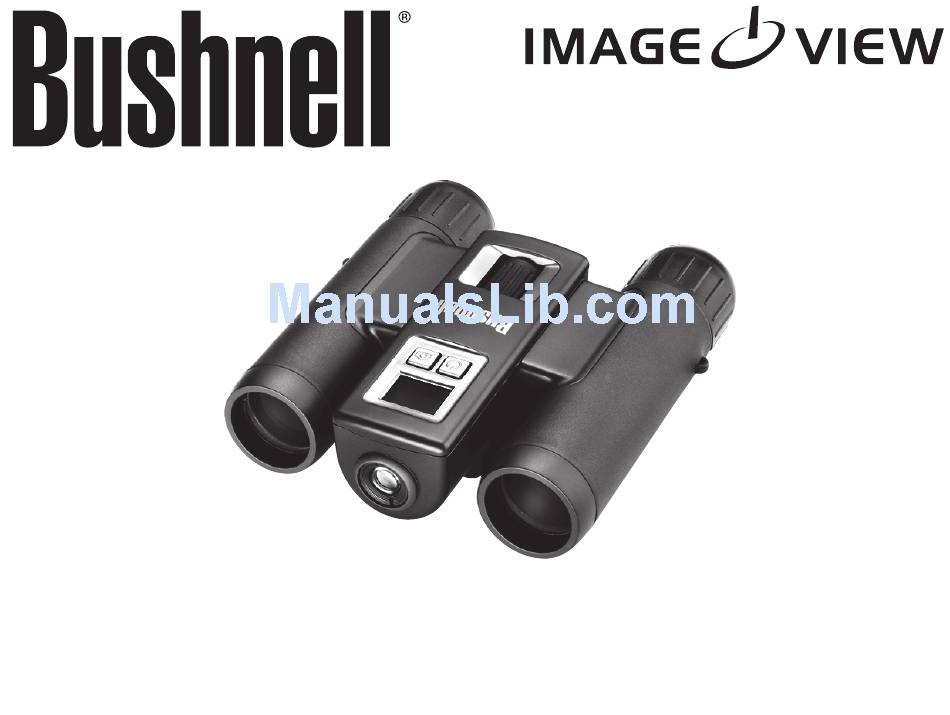

- Page 1 Instruction Manual Model #: 111026 Version 2.1 Lit. #: 98-0828/06-11...
- Page 3 Do NOT look directly at the sun through your binoculars. Doing so may cause permanent eye damage. NOTE: To reset the camera if you experience problems or if the display becomes unresponsive, remove the batteries for at least one minute, then re-install them.
- Page 4 You can then download these images to your computer and e-mail them to your friends and family, print out the pictures, or save them in a photo album for future use. Before using the product, please read the instructions contained in this manual and take time to familiarize yourself with the different parts and features of the product.
-
Page 5: Camera And Binocular Parts Guide
Camera and Binocular Parts Guide Remote Binocular Jack Focus SD Card Slot Port Power/ MODE Button SNAP “No SD Card” Display Button Camera Lens Normal Display Tripod Battery Socket Compartment... - Page 6 (flat) end of each battery. A power meter on the left center of the display indicates battery condition. 2. insert an SD card ("upside down" with metal contacts facing up) in the slot if greater storage is desired. You may use SD cards (not MMC cards) up to 8 GB capacity. As the camera has no internal memory, it cannot be operated without an SD card.
- Page 7 MODE and SNAP buttons at the same time, until the display begins to flash. the display now shows the last two digits of the year. Press the MODE button to move the cursor to the second digit if necessary. Press the SNAP button to advance the digit to the current year ("10"...
- Page 8 Camera (640x480 resolution instead of "OFF" to put the camera in pixels per video mode. Wait a few seconds for the camera to frame, 29 fps), automatically return to the normal display, then Low (320x240 begin shooting by pressing SNAP. the counter...
- Page 9 Continuous OFF, 3, 5 Select 3 or 5 frames to shoot a rapid series of photos instead of a single frame when SNAP is pressed (in normal still photo mode). to cancel, enter this mode again and select OFF.
- Page 10 Format FOr+trash None-press if you are using a new SD card, or one previously SNAP to used in other devices, we recommend you select format card Format and press SNAP before you start taking...
-
Page 11: System Requirements
Vista, and Windows 7.) Mac OS 9 and OSX are also compatible. if you have a computer OS as listed above that is USB mass storage compliant, a new disc icon will appear in Windows Explorer (under “My Computer”) as a new “Removable Disc”... - Page 12 “USB Mass Storage” device. this means that the camera files can be easily viewed, edited, or copied to your hard drive, just as if they were stored on an external hard drive or a CD-ROM. (Note for Mac users: you may need to select "StO"...
- Page 13 “disk” first (your photo files will not be harmed). if so, check the box that adds an icon to your system tray or taskbar. then next time you finish transferring photos, you can click that icon first, and “Stop the USB Mass Storage Device”...
- Page 14 Hold the binocular in the normal viewing position, with a firm grip on each side. Move the barrels closer together or further apart (Fig. 2) until you see a single circular field. Always re-set your binocular to this position before using.
- Page 15 Caution should be used as over turning or forcing the diopter eyepiece may damage the binocular. 8. Your binocular should now be adjusted for your eyesight. Focus at any far or near distances can now be attained simply by turning the center focus wheel. Make a...
- Page 16 5. Never expose your imageView binocular to any type of excessive liquid or fluid, as it is not water/fogproof. 6. take the batteries out of your imageView if you are not going to use it for a long period of time.
- Page 17 1. Blow away any dust or debris on the lens (or use a soft lens brush.) 2. to remove dirt or finger prints, clean with a soft cotton cloth rubbing in a circular motion. Use of a coarse cloth or unnecessary rubbing may scratch the lens surface and eventually cause permanent damage.
- Page 18 TWO-YEAR LIMITED WARRANTY Your Bushnell ® product is warranted to be free of defects in materials and workmanship for two years after the date of purchase. in the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that you return the product postage prepaid.
- Page 19 •...
- Page 20 For further questions or additional information please contact: Bushnell Outdoor Products 9200 Cody, Overland Park, Kansas 66214 (800) 423-3537 • www.bushnell.com ©2011 Bushnell Outdoor Products...
Need help?
Do you have a question about the Imageview 11-1025 and is the answer not in the manual?
Questions and answers

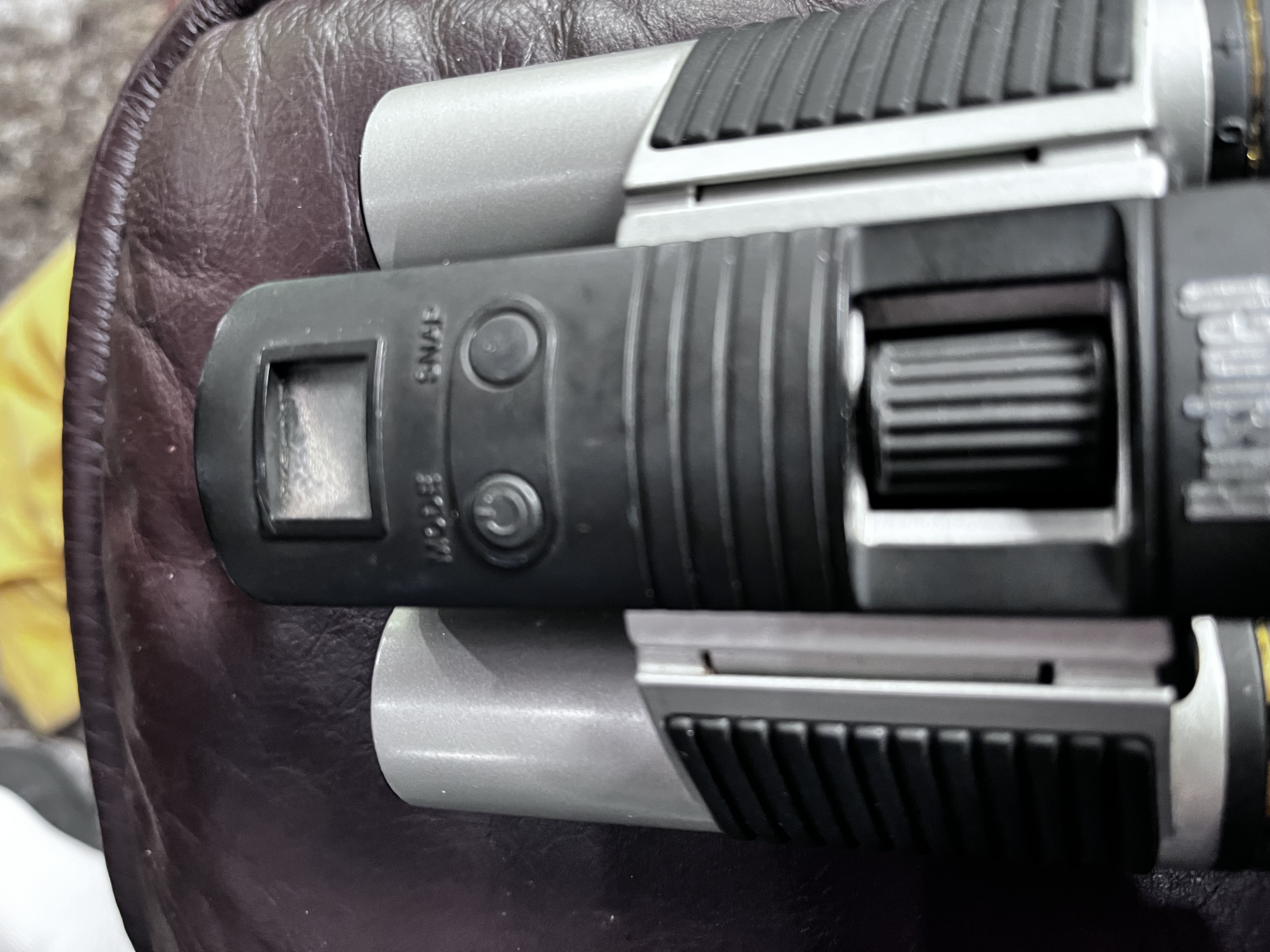

How do I replace battery springs in bushnell 10x25 unit
