Chapter 3 Machine Disassembly - Acer AL1702 Service Manual

Hide thumbs Also See for AL1702:
Table of Contents

Advertisement

Machine Disassembly
This chapter contains step-by-step procedures on how to disassemble the monitor for
maintenance.
Disassembly Procedure

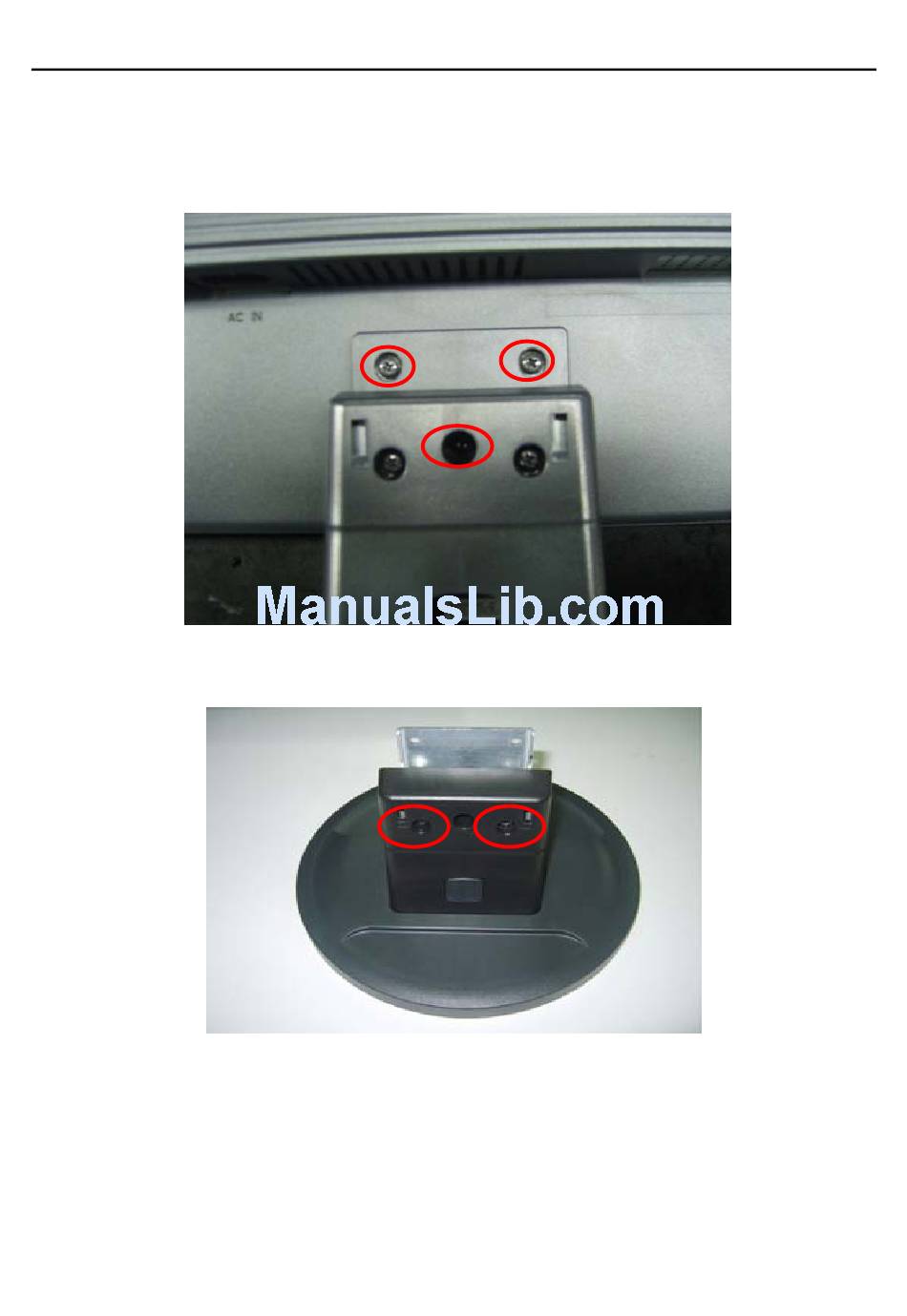

1. Remove the screws to release base stand and gemel. (Fig 1-3)
Fig 1
Fig 2
28
Chapter 3
