Info: The most current version of these instructions can be found online at
Info: For use with incandescent light bulbs up to 60 watts, LED equivalent bulbs up to
10 watts, or CFL equivalent bulbs up to 13 watts.
WARNING: Important! Read and understand these instructions before assembling or using
the 1697-1C Exam Lamp. If you do not understand any part of these instructions, contact
a healthcare professional for direction in the use of this product. If the Exam Lamp is not
properly assembled and operated, personal injury and / or damage to the Exam Lamp could
result.
WARNING: If components are damaged or missing, contact your dealer immediately. DO
NOT use substitute parts. Use only Grafco replacement parts. Non-Grafco replacement
parts could cause personal injury and / or damage to the Exam Lamp.
WARNING: Notice for California Customers- California Proposition 65 WARNING: This
product contains a chemical known to the State of California to cause cancer and
reproductive or developmental harm.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury
caused by improper installation or use of this product.
ASSEMBLY INSTRUCTIONS (SEE PICTURES AT RIGHT)
1. Screw lower pole onto base until secure.
2. Screw flex arm assembly onto upper pole until secure.
OPERATION
WARNING: Ensure Exam Lamp is securely
assembled as instructed above before use.
WARNING: DO NOT use an extension cord or
adapter. To make alterations, contact a qualified
electrician.
WARNING: To reduce the risk of fire, use:
maximum 60W type A bulb, or
maximum 10W type LED bulb, or
maximum 13W type CFL bulb.
Height Adjustment
Exam Lamp height is adjustable from 34
adjust lamp height, hold upper pole with one hand and
pull it up or push it down to desired height.
MAINTENANCE / CLEANING
WARNING: Before cleaning lamp or replacing bulb,
disconnect the power and allow the unit to cool.
WARNING: There are no serviceable components
inside the Exam Lamp. DO NOT open the casing.
WARNING: DO NOT submerge or immerse unit in
water or other liquid.
Clean Exam Lamp weekly or whenever soiled with a low-
level hospital grade disinfectant. Ensure Exam Lamp is
securely assembled before each use.
1697-1C-INS-LAB-RevA15

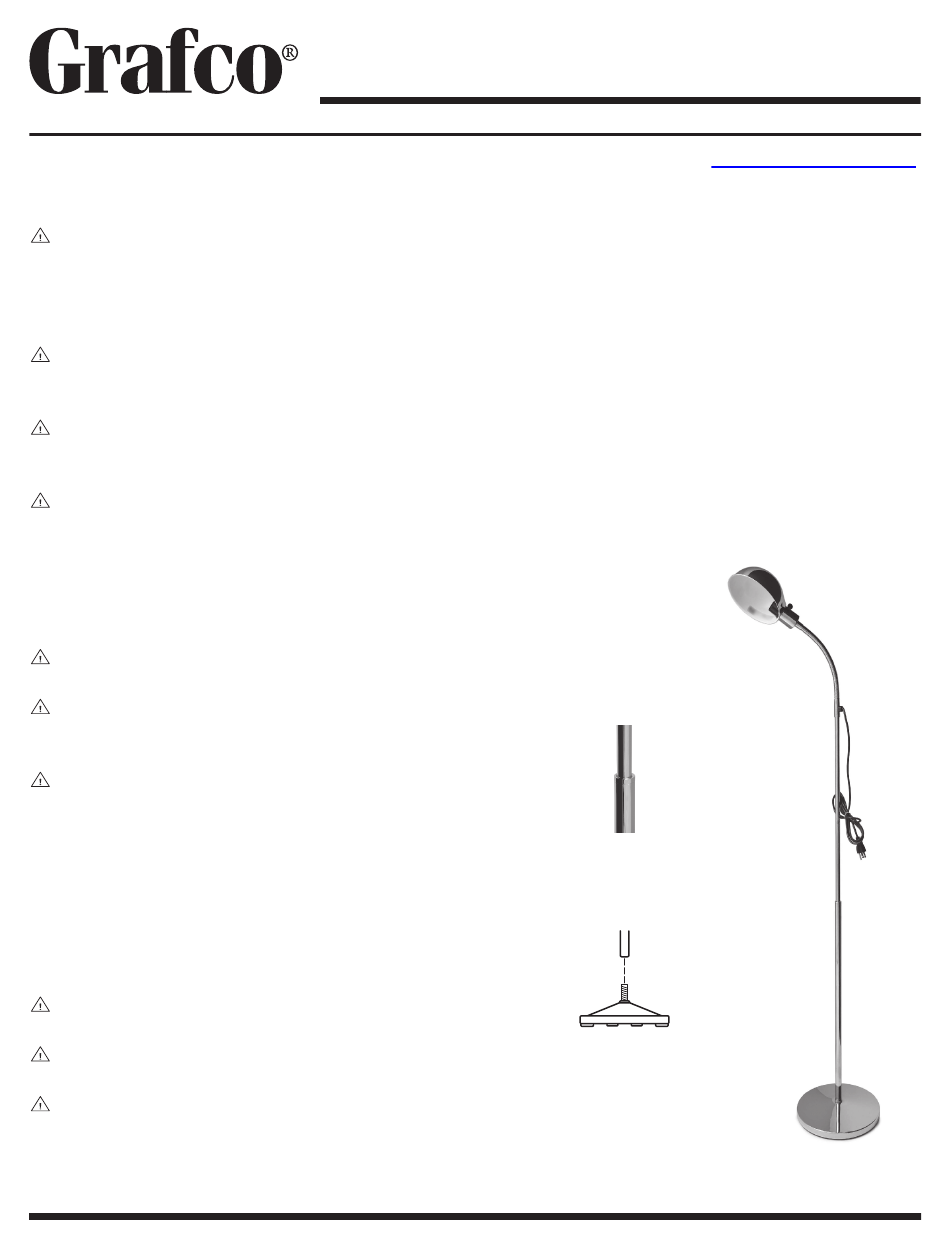

1697-1C EXAM LAMP WITH CHROME-PLATED BASE,
CLUTCH COLLAR LOCK, AND 3-PIN PLUG:
ASSEMBLY AND OPERATION INSTRUCTIONS
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE USE
/
" to 53
/
". To
1
1
2
2
www.grahamfield.com.
Shade
Upper Pole
Lower Pole
Clutch Collar
Lock
Clutch Collar Lock
Lower Pole
Base
with Chrome-Plated Base,
Flex Arm
Assembly
Power
Cord
3-Pin
Plug
Pole Set
Base
1697-1C Exam Lamp
Clutch Collar Lock,
and 3-Pin Plug
1
