Removing the Mainboard

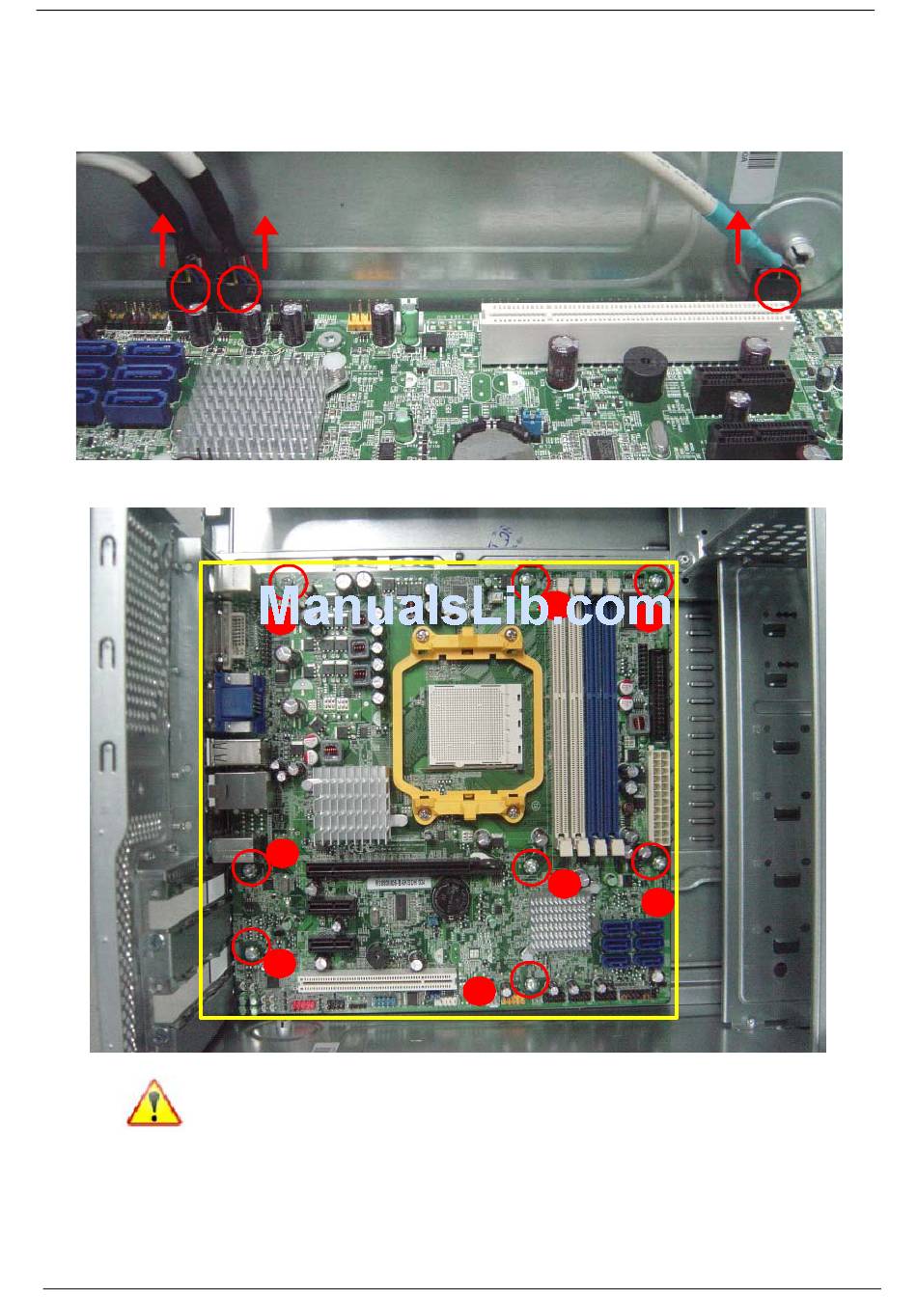

1. Disconnect the power switch/LED/Audio/ USB cable from the mainboard.
2. Remove the eight screws that secure the mainboard to the chassis.
Note:
Please detach the Circuit boards and follow local regulations for disposal.
46
2
6
3
Circuit boards >10 cm² has been highlighted with the yellow rectangle as above image shows.
7
4
8
6
1
Chapter 3
