H-6509, H-6510
HARD-WIRED EXIT SIGN
TOOLS NEEDED
Flathead Screwdriver
CAUTION! When using electrical equipment,
always follow basic safety precautions, including:
• Do not use outdoors.
• Do not mount near gas or electric heaters.
• Do not let power cords touch hot surfaces.
• Use caution when servicing batteries to avoid
possible shorting.
• Mount in locations and at heights where it
will not readily be subjected to tampering by
unauthorized personnel.
• Use of accessories not recommended by the
manufacturer may cause an unsafe condition.
• Do not use this equipment for anything other
than intended use.
• Before wiring to AC service, turn off AC power
at fuse or circuit breaker.

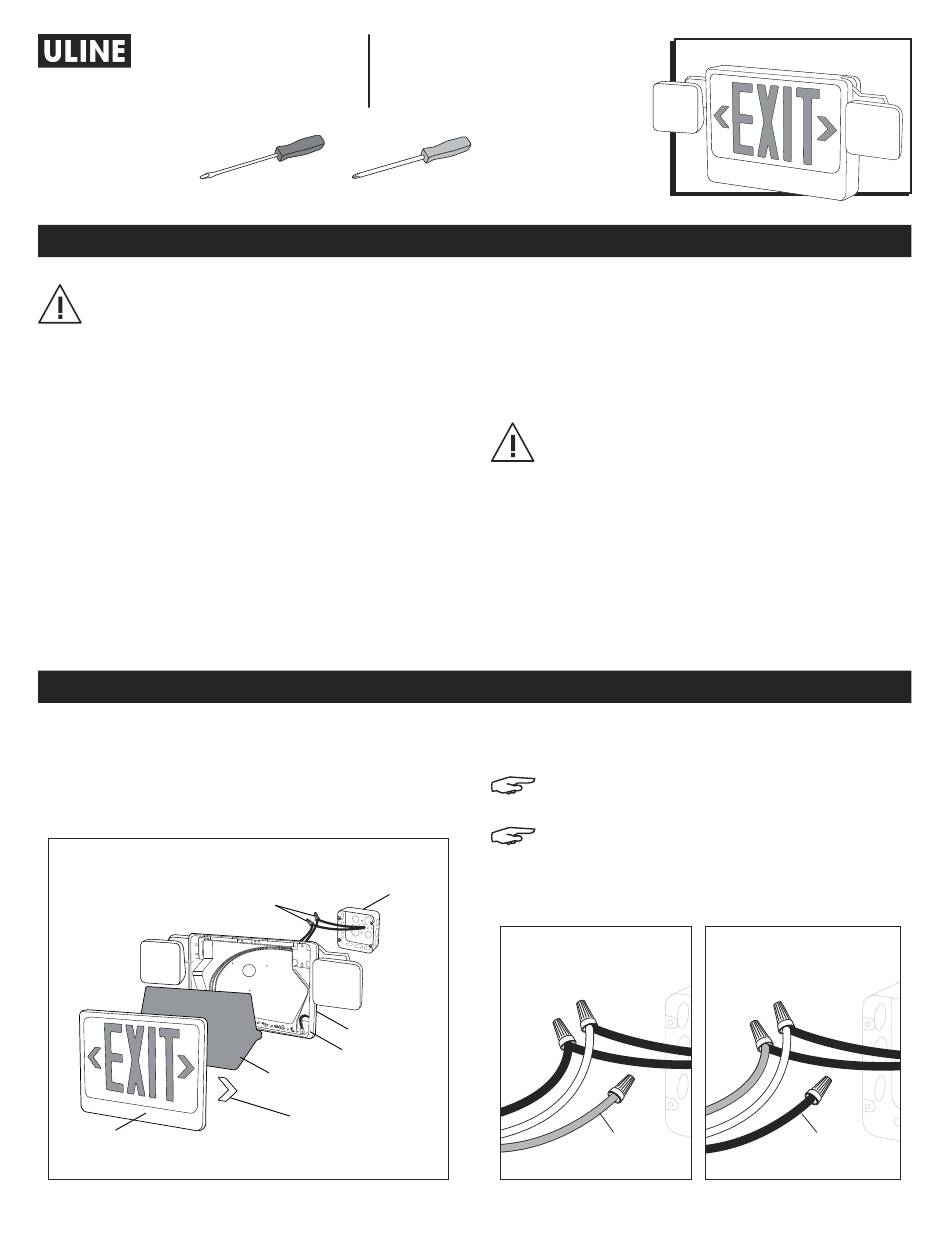

BACK MOUNTING
1.
Drill 1/4" holes into oblong knock outs on back plate
that correspond to junction box holes to be used.
(See Figure 1)
Figure 1
Wire Nuts
EXIT Panel
PAGE 1 OF 9
1-800-295-5510
uline.com
Phillips Screwdriver
SAFETY
INSTALLATION
Junction
Box
Back Plate
Plastic
Housing
Diffuser
Snap-in
Directional Arrow
• Disconnect AC power and unplug battery
before servicing.
• Only use specified lamps in the fixture.
• Battery in unit may not be fully charged. After
AC service is supplied to unit, let battery charge
for at least 24 hours before performing any tests.
CAUTION: Halogen cycle lamps are used in
this equipment. To avoid shattering: Do not
operate lamp in excess of rated voltage.
• Protect lamp against abrasion and scratches
and against liquids when lamp is operating,
dispose of lamp with care.
• Halogen cycle lamps operate at high
temperatures. Do not store or place
flammable materials near lamp.
2. Feed transformer input leads through center hole
and make the proper connections. (See Figures 2-3)
NOTE: If using 120VAC, connect black and white
leads to building utility.
NOTE: If using 277VAC, connect orange and
white leads to building utility.
If the unit is self-powered, be sure to snap battery
connector together.
120VAC
Connect black and white
leads to building utility.
Cap Unused
Orange Wire
Figure 2
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
277VAC
Connect orange and white
leads to building utility.
Cap Unused
Black Wire
Figure 3
0621 IH-6509
