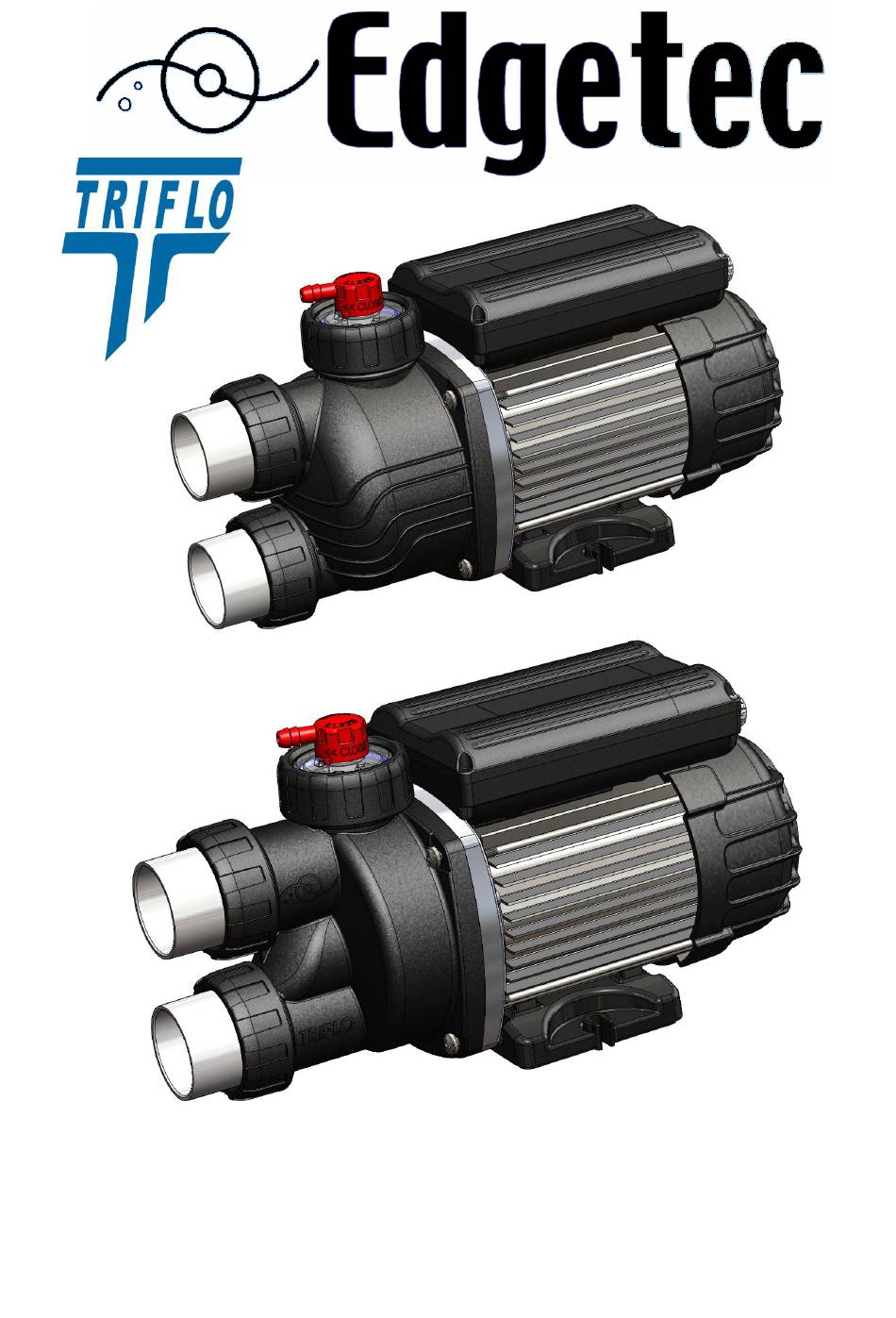

- Page 1 Owner's Manual Triflo Spa Bath Pump...
- Page 2 40mm pipe is preferred for both the suction and return lines. IMPORTANT REQUIREMENT: Installation of the TriFlo pump must have access for servicing the pump or pipe work. A service access panel must be provided so that the pump can be easily removed for service (if required) on every installation.
-
Page 3: Triflo Technical Data
Length Voltage (watts) (watts) (amps) Head m (mm) (mm) (mm) TF060-AH-50 230-240 TF075-AH-50-HF 230-240 TF110-AH-50 230-240 1100 TF060-XH, ET, ST, SK-50 230-240 TF075-XH, ET,ST, SK-50-HF 230-240 TF110-XH, ET,ST, SK-50 230-240 1100 EDGETEC SYSTEMS PTY LTD Part # 9-2100 MAY 2012... - Page 4 *Important - Only Activate Air Bleed if pump does not prime (refer page 10) Prior to August 2012 Attach 10 mm Flexible drain tube (Not Supplied) After August 2012 Twist Cap Air Bleed - Rotate Fully Anticlockwise to Open EDGETEC SYSTEMS PTY LTD Part # 9-2100 MAY 2012...
- Page 5 Diagram 5 Touch Pad Connection EDGETEC SYSTEMS PTY LTD Part # 9-2100 MAY 2012...
- Page 6 The TriFlo pump internal design allows the water to self drain so that there is no residue water left in the pump when the spa is emptied in accordance with Local Health Regulations.
- Page 7 PUMP key on the SPA-KEY handset within 30 seconds, refer www.spakey.com.au for further technical information. Your hand set that is provided with your pump has already been programmed during assembly and is ready to use. EDGETEC SYSTEMS PTY LTD Part # 9-2100 MAY 2012...
- Page 8 1. Spa bath pumps must be fitted in accordance with the relevant national wiring rules and electrical standards, particularly AS 3000 or equivalent. 2. The TriFlo spa bath pump is fitted with a standard lead and three pin plug for 240-220V 50Hz power supply.
- Page 9 Never run your spa pump without water as this can cause serious damage to the mechanical seal which may cause the spa pump to leak. Running the pump without water will void your warranty. EDGETEC SYSTEMS PTY LTD Part # 9-2100 MAY 2012...
- Page 10 To avoid any water damage, we recommend that you place a 10mm tube (not supplied) over the air bleed barb and place the tube in a position where the excess water will not cause any damage (i.e. into a drain or outside). EDGETEC SYSTEMS PTY LTD Part # 9-2100 MAY 2012...
- Page 11 Most spa jets are now adjustable ensure that all the spa jets are in the open Spa Jets position by rotating the jet face No water coming from Contact service technician. Spa Jets EDGETEC SYSTEMS PTY LTD Part # 9-2100 MAY 2012...
- Page 12 Edgetec Product Warranty Edgetec Systems Pty Ltd warrants that the items sold hereunder shall be free from defects in material and workmanship for a period of one (1) year at the time of the original purchase date and to the original purchaser.
