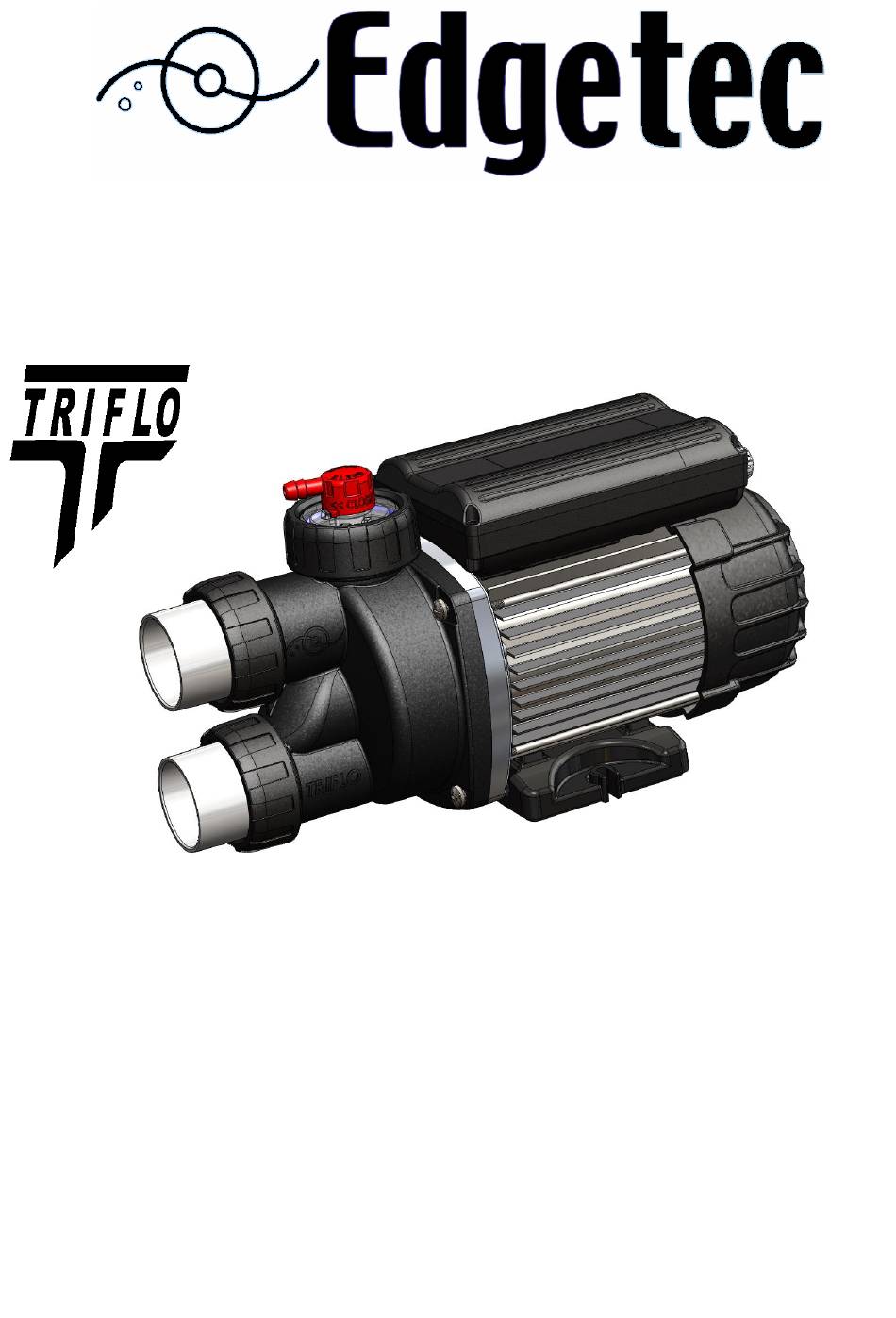

- Page 1 Owner's Manual TriFlo Spa Bath Pump...
- Page 2 Return Line Minimum 1:36 Gradient (1.5°) Suction Line Minimum 1:36 Gradient (1.5°) TriFlo Installation Return Line Minimum 1:36 Gradient (1.5°) Suction Line Minimum 1:36 Gradient (1.5°) EDGETEC SYSTEMS PTY LTD Part # 9-2100 SEP2015 www.edgetec.net...
- Page 3 Height Length Voltage (watts) (watts) (amps) (mm) (mm) (mm) Rating TF060-AH-50 230-240 TF075-AH-50-HF 230-240 TF110-AH-50 230-240 1100 TF060-XH, ET, ST, SK-50 230-240 TF075-XH, ET,ST, SK-50-HF 230-240 TF110-XH, ET,ST, SK-50 230-240 1100 EDGETEC SYSTEMS PTY LTD Part # 9-2100 SEP2015 www.edgetec.net...
- Page 4 2. Push the connector into the housing until it “clicks” into the fixed position. 3. Push the protective rubber cap on the touch pad cable over the circular housing (failure to do this will void the warranty). EDGETEC SYSTEMS PTY LTD Part # 9-2100 SEP2015 www.edgetec.net...
- Page 5 TriFlo spa bath pumps are designed for spa bath operation only and should not be used in chemically treated water or any other purpose without seeking written approval from Edgetec Systems Pty Ltd for the application. EDGETEC SYSTEMS PTY LTD Part # 9-2100 SEP2015 www.edgetec.net...
- Page 6 The Green indicator light in the centre of the touch pad is showing that the communication cable from the pump is fitted correctly and that there is power to the spa bath pump. EDGETEC SYSTEMS PTY LTD Part # 9-2100 SEP2015 www.edgetec.net...
- Page 7 TriFlo applications, available at www.edgetec.net or sales@edgetec.net. This appliance is not intended for use by young children or infirm persons without supervision EDGETEC SYSTEMS PTY LTD Part # 9-2100 SEP2015 www.edgetec.net...
- Page 8 If damage occurs to the power cord it must be replaced by Edgetec or an authorised service agent or suitably qualified person. EDGETEC SYSTEMS PTY LTD Part # 9-2100 SEP2015...
- Page 9 Never run your spa pump without water as this can cause serious damage to the mechanical seal which may cause the spa pump to leak. Running the pump without water will void your warranty. EDGETEC SYSTEMS PTY LTD Part # 9-2100 SEP2015 www.edgetec.net...
- Page 10 ATTACH 10 MM FLEXIBLE DRAIN TUBE (NOT To avoid any water damage, SUPPLIED) LOOP TUBE ABOVE BATH MAXIMUM WATERLINE AND TERMINATE PIPE IN DRAIN TRAY After August 2012 Prior August 2012 EDGETEC SYSTEMS PTY LTD Part # 9-2100 SEP2015 www.edgetec.net...
- Page 11 EDGETEC SYSTEMS PTY LTD Part # 9-2100 SEP2015 www.edgetec.net...
