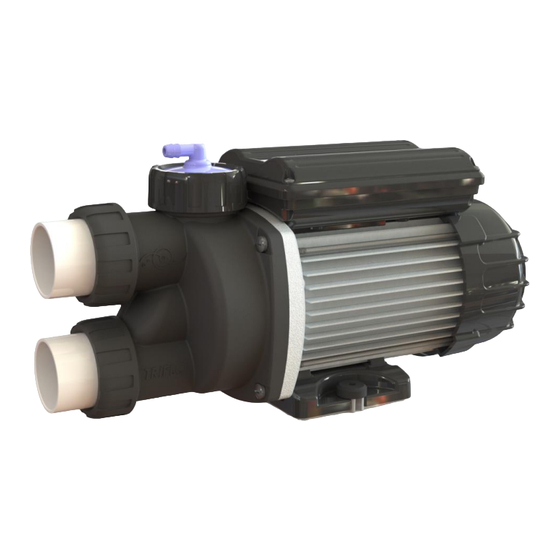

- Page 1 Owner's & Installation Manual TriFlo Spa Bath Pump...
-
Page 2: Table Of Contents
TriFlo Technical Data ....................15 Edgetec Product Warranty ..................16 Terms & Conditions ....................16 Commercial Installation ................... 16 TriFlo Pump Details Model Number: Serial Number: Date of Purchase: Invoice Number: EDGETEC SYSTEMS PTY LTD Part # 9-2100 FEB2017 www.edgetec.net... -
Page 3: Pro-Tec Accessories
Easy To Install. Protects indoor installations from water damage should any small drip from the mechanical seal occur due to normal wear -Part #6450 Pro-Tec Drain Tray Pump Mounted on Drain Tray EDGETEC SYSTEMS PTY LTD Part # 9-2100 FEB2017 www.edgetec.net... -
Page 4: Correct Spa Bath Pump Installation
Bleed cannot be activated in this installation. Return Line (0.5°) Minimum 1:100 Gradient Suction Line Minimum 1:100 Gradient (0.5°) TriFlo Installation Return Line Minimum 1:100 Gradient (0.5°) Suction Line Minimum 1:100 Gradient (0.5°) EDGETEC SYSTEMS PTY LTD Part # 9-2100 FEB2017 www.edgetec.net... -
Page 5: Incorrect Spa Bath Pump Installation
For under the hob installation- an access panel must be provided on the installation. PUMP MOUNTED TO LOW PUMP CANNOT DRAIN PUMP MOUNTED TO HIGH PUMP CANNOT PRIME INCORRECT PIPEWORK LOOP-PUMP WILL AIRLOCK PUMP CANNOT PRIME EDGETEC SYSTEMS PTY LTD Part # 9-2100 FEB2017 www.edgetec.net... -
Page 6: Correct Mounting On External Wall
Incorrect Mounting on External Wall – – Pump too High Pump too Low PUMP CAN NOT PRIME PUMP CAN NOT DRAIN EXTERNAL WALL INSTALLATION WITH Pro-Tec Pump Cover and Pro-Tec Cover Plate EDGETEC SYSTEMS PTY LTD Part # 9-2100 FEB2017 www.edgetec.net... -
Page 7: Air Tube Connections - Ah And Xh Models
(failure to do this will void the warranty). 4. Do not wrap or loop excess cable around frame work of the bath or pipe work! EDGETEC SYSTEMS PTY LTD Part # 9-2100 FEB2017 www.edgetec.net... -
Page 8: Activating Air Bleed
(Use 4 mm drill bit) AIR BLEED – INTERNAL INSTALLATION Edgetec highly recommend a drain tray be fitted on ALL internal installation Drain tray will protect indoor installations from water damage should any small drip from the mechanical seal occur due to normal wear. Will also collect any minor “squirt”... -
Page 9: Triflo Spa Bath Pump
The heating function will automatically come on once the pump has primed and water is detected in the spa bath pump. EDGETEC SYSTEMS PTY LTD Part # 9-2100 FEB2017 www.edgetec.net... - Page 10 Never run your spa pump without water as this can cause serious damage to the mechanical seal – which may cause the spa pump to leak. Running the pump without water will void your warranty. EDGETEC SYSTEMS PTY LTD Part # 9-2100 FEB2017 www.edgetec.net...
-
Page 11: Installation Instructions (Refer Page 4, 5 & 6)
2. The pump can be located internally or externally. If the pump is fitted externally, Edgetec recommends to fit the Pro-Tec pump cover as shown on page 4 (not supplied). 3. Internal installation must have adequate ventilation (minimum area 50cm²) for the... -
Page 12: Electrical Connection
If damage occurs to the power cord it must be replaced by Edgetec or an authorised service agent or suitably qualified person. Air Tube Connection AH & XH Models (refer page 7) 1. - Page 13 Your spa bath pump should be installed on a well-drained location or on a suitable drain tray on internal installations to avoid water damage to property should any leaks occur from pipe work, connections or normal wear. EDGETEC SYSTEMS PTY LTD Part # 9-2100 FEB2017 www.edgetec.net...
-
Page 14: Trouble Shooting Guide
10 Check that adjustable spa jets are in the open position seconds Activate Air Bleed-Refer to activating Air Bleed- page12 No water from Jets Contact service technician or spa installer. EDGETEC SYSTEMS PTY LTD Part # 9-2100 FEB2017 www.edgetec.net... -
Page 15: Triflo Technical Data
EDGETEC SYSTEMS PTY LTD Part # 9-2100 FEB2017 www.edgetec.net... -
Page 16: Edgetec Product Warranty
Edgetec Product Warranty Edgetec Systems Pty Ltd warrants that the items sold hereunder shall be free from defects in material and workmanship for a period of one (1) year at the time of the original purchase date and to the original purchaser.
