Foremost Groups F170262 Manual

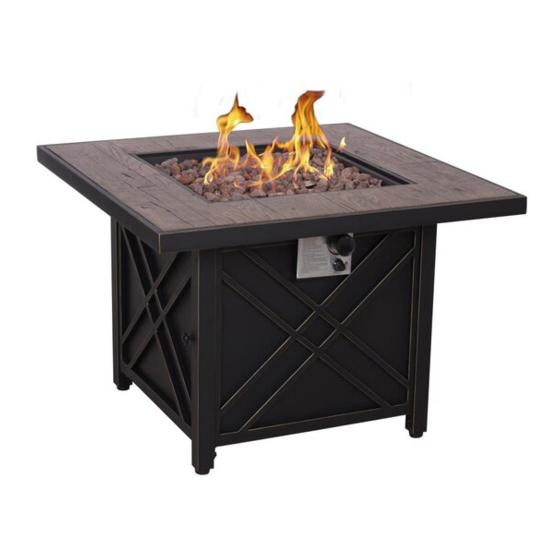

Darwin square gas fire pit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DARWIN SQUARE GAS FIRE PIT
ITM./ART.#: 505105F170262
MODEL#: F170262
ANS Z21.97/CSA 2.41-2014
Outdoor Decorative Gas Appliances
Installer: Leave these instructions with consumer.
Consumer: Keep these instructions for further reference.
DANGER
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, keep away from the
appliance and immediately call your
gas supplier or fire department.
DANGER
WARNING:
Improper installation,
or maintenance can cause injury or property damage.
Read the installation, operating, and maintenance
instructions thoroughly before installing or servicing
this equipment.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has
no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a
camper, tent, car or home.
adjustment, alteration, service
WARNING: For Outdoor Use Only.
WARNING
Do not store or use gasoline, or other
flammable vapors and liquids,in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
Questions, Problems, Missing Parts?
Before returning to your retailers, contact
Foremost Groups Customer Relations
Department toll free number at 1-800-443-1410
(USA) between the hours of 8:30 am and 5:00
pm EST, Monday thru Friday or fax your
request to (973) 428-8026 or email us at
customerservice@foremostgroups.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F170262 and is the answer not in the manual?

Questions and answers

Related Manuals for Foremost Groups F170262

Summary of Contents for Foremost Groups F170262

  • Page 1 Never use this appliance in an enclosed space such as a camper, tent, car or home. Questions, Problems, Missing Parts? WARNING: Before returning to your retailers, contact Foremost Groups Customer Relations Improper installation, adjustment, alteration, service Department toll free number at 1-800-443-1410 or maintenance can cause injury or property damage.

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1 NFPA 54; National Fuel Gas Code; Natural Gas and Propane Installation Code, CSA B149.1; ● or Propane Storage and Handling Code, CSA B149.2, as applicable.

  • Page 3: Specifications

    IMPORTANT SAFETY INFORMATION ABOUT PROPANE (LP) GAS The LP-gas supply cylinder to be used must be constructed and marked in accordance with the U.S. Deparment of Transportation (D.O.T.) Specifications for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for Transportation of Dangerous Goods and Commission, CAN/CSA-B339, as applicable. The LP-gas supply cylinder to be used must have a listed overfilling prevention device (See Figure 1).

  • Page 4: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Upper beam Table Top Back-left leg Weather cover Back panel Back-right leg Door handle Foot glider Right panel Front-right leg Lava rock (13.2 lbs) 2 pkg Gas cylinder support Natural gas orifice Bottom beam Bolt (M6 x 15) Door...

  • Page 5: Illustrated Parts List

    ILLUSTRATED PARTS LIST Table Top Back panel Back-right leg Right panel Front-right leg Gas cylinder support Bottom beam Door Front-left leg Left panel Upper beam Back-left leg Weather cover Door handle Natural gas orifice Foot glider Lava rock (13.2 lbs) Bolt (M6 x 15) Washer (M6) Hex screw driver...
  • Page 6 ASSEMBLY INSTRUCTIONS NOTE: Tool Required for Assembly: phillips screw driver ( NOT included) 1. Carefully unpack all parts from the box, compare parts with package content listed above, make sure all parts are present before beginning assembly of product. If any part is missing or damaged, do not attempt to assemble the product.
  • Page 7 Hardware Used: Bolt (M6 x 15) Washer (M6) Hex screw driver Figure 4 5. Attach upper beam (L) to front-left Leg (J) and front-right leg (F) with bolt (AA) and washer (BB) using hex screw Driver (CC). Attach bottom beam (L) to front-left leg (J) and front-right leg (F) with bolt (AA) and washer (BB) using hex screw driver (CC), (see Figure 5).
  • Page 8 7. Attach door (I) to upper beam (L) and bottom beam (H) with bolt (AA) and washer (BB) using hex screw driver (CC), (see Figure 7). NOTE: DO NOT tighten the screws completely. Hardware Used: Bolt (M6 x 15) Washer (M6) Hex screw driver Figure 7 8.
  • Page 9 10. Put lava rock (P) around the burner, then remove the label from pilot box (see Figure 10). A gas fire pit requires 13.2 lbs lava rock. NOTE: DO NOT completely cover the burner element or block the pilot box with the lava rocks.

  • Page 10: Natural Gas Conversion

    STOP STOP NATURAL GAS CONVERSION Natural gas conversion must be performed only by natural gas provider or service company. Disconnect the propane hose from the gas valve (see Figure 13). gas valve propane hose Figure 13 Unscrew and disconnect the propane orifice from the bellows (see Figure 14). Propane orifice (2.21 mm diameter size) is painted with red mark.

  • Page 11: Gas Valve

    Follow all warnings and instructions when using the appliance. If instructionsor parts are missing, contact Foremost Groups Customer Relations Department toll free number at 1-855-390-5474 or 1-800-443-1410 (USA) or 001-855-286-4931 (Int) between the hours of 8:30 am and 5:00 pm EST, Monday through Friday or fax your request to (973) 428-8026 or email us at customerservice@foremostgroups.com...
  • Page 12 BATTERY Make sure the control knob is in the “OFF” position. Unscrew the push button cap on the ignitor module located on the control panel to access the battery compartment. The ignitor module requires one AAA size battery (See Figure 19), BATTERY IS NOT INCLUDED. WARNING: 1.

  • Page 13: Lighting Instructions

    gas valve-hose connection (Figure 22) inlet tube-bellows connection (Figure 23) To perform a leak test: Make 2~3 oz. of leak solution by mixing one part liquid dishwashing detergent and three parts water. Noted: make sure control knob is “OFF”. Apply several drops of solution where the cylinder attaches to regulator (see Figure 20), inspect the solution at the connection looking for bubbles.

  • Page 14: Care And Maintenance

    Observe Flame Height When Lit: The burner will display blue and yellow flames. These flames should be a blue / yellow color between 1~2 in. height (see Figure 25. These flames should not be yellow or produce thick smoke. This would indicate an obstruction of airflow through the burners. The flames should be blue with straight yellow tops.

  • Page 15: Replacement Parts List

    REPLACEMENT PARTS LIST PART# DESCRIPTION CLTN-L CLTN-SQTTA Table top CLTN-RP Right panel CLTN-LP Left panel CLTN-DR Door CLTN-BP Back panel CLTN-FRLG Front-right leg CLTN-BRLG Back-right leg CLTN-FLLG Front-left leg CLTN-BLLG Back-left leg CLTN-UPBM Upper beam CLTN-BTBM Bottom beam CLTN-GCSPT Gas cylinder support CLTN-FOOTGD Foot glider CLTN-HDL...

  • Page 16: Warranty Exclusions

    Should replacement of the warranted item be unavailable, Foremost Groups Inc. reserves the right to substitute items of our choice similar in style, color and quality. For quality control purposes and verification, we reserve the right to request photographs of the damage item(s).
