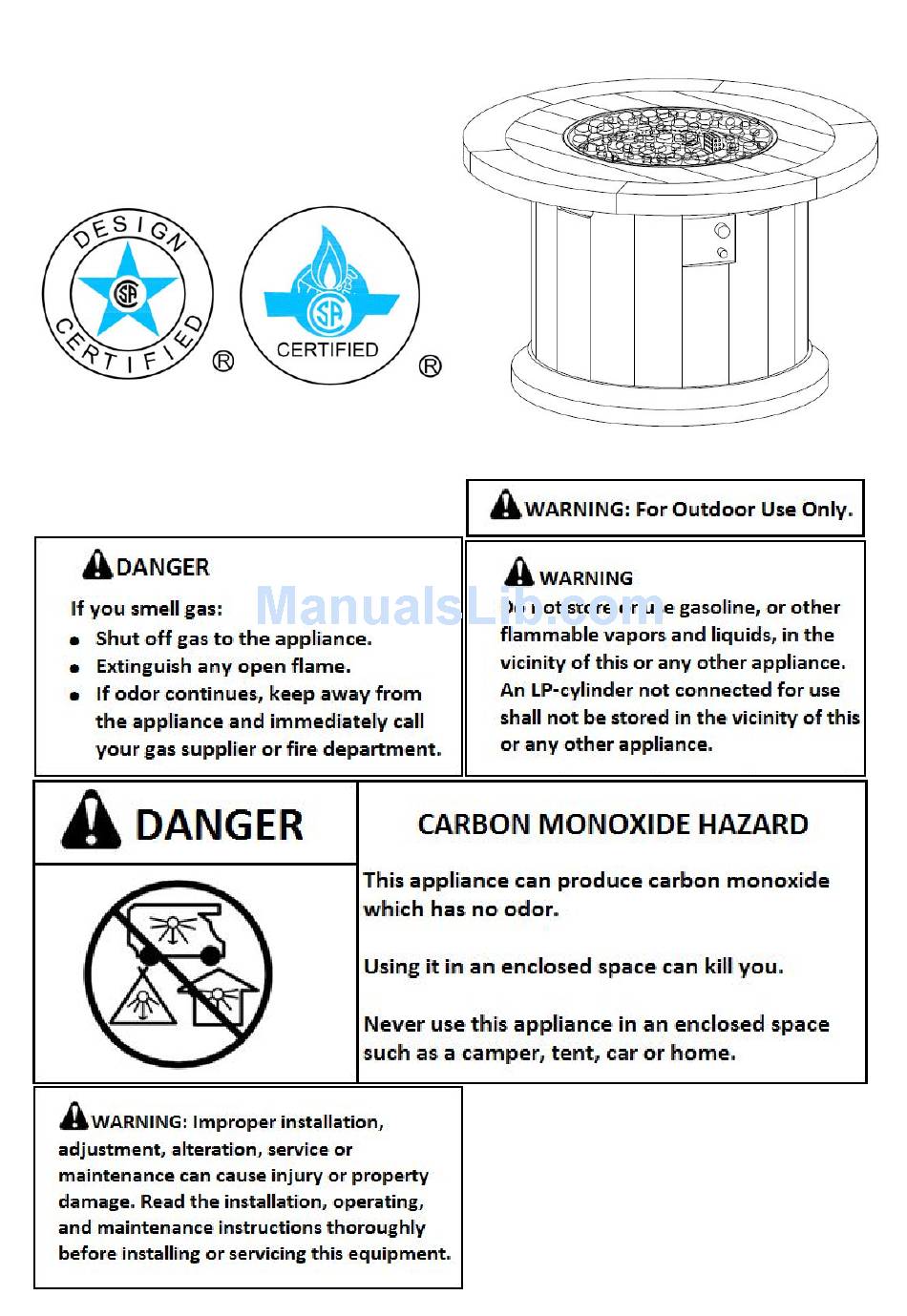

TerraFab Round Grey Fire Table
ITM./ART.#: 2595136
MODEL#: RO47248GFP-WD
ANSI Z21.97/CSA 2.41-2014
Outdoor Decorative Gas Appliances
Installer: Leave these instructions with consumer.
Consumer: Keep these instructions for further reference.
Questions,Problems,Missing Parts? Before
returning to your retailers, contact Foremost Groups
Customer Relations Department toll free number at
1-800-443-1410 between the hours of 8:30 am and
5:00 pm EST, Monday thru Friday or fax your re
quest to (973) 428-8026 or email us at
customerservice@foremostgroups.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RO47248GFP-WD and is the answer not in the manual?

Questions and answers

Related Manuals for Foremost Groups RO47248GFP-WD

Summary of Contents for Foremost Groups RO47248GFP-WD

  • Page 1 Installer: Leave these instructions with consumer. Consumer: Keep these instructions for further reference. Questions,Problems,Missing Parts? Before returning to your retailers, contact Foremost Groups Customer Relations Department toll free number at 1-800-443-1410 between the hours of 8:30 am and 5:00 pm EST, Monday thru Friday or fax your re quest to (973) 428-8026 or email us at customerservice@foremostgroups.com...

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION 1. The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1 NFPA 54; National Fuel Gas Code; Natural Gas and Propane Installation Code, CSA ● B149.1;...

  • Page 3: Specifications

    IMPORTANT SAFETY INFORMATION ABOUT PROPANE (LP) GAS 1. The LP-gas supply cylinder to be used must be constructed and marked in accordance with the U.S. Deparment of Transportation (D.O.T.) Specifications for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for Transportation of Dangerous Goods and Commission, CAN/CSA-B339, as applicable.

  • Page 4: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION QUANTITY Fire table Door Lava rock (16.5 lbs) 2 pkg Weather cover ASSEMBLY INSTRUCTIONS 1. Carefully unpack all parts from the box, compare parts with package content listed above, make sure all parts are present before beginning assembly of product. If any part is missing or damaged, do not attempt to assemble the product.
  • Page 5 black handle Figure 3 4. Secure the cylinder by tightening clockwise the butterfly screw found on the cylinder holder (see Figure 4), so that the cylinder cannot move from side to side or fall down. Attach the door (B) with fire table (A) tenderly (see Figure 5).

  • Page 6: Natural Gas Conversion

    STOP STOP NATURAL GAS CONVERSION Natural gas conversion must be performed only by natural gas provider or service company. 1. Disconnect the propane hose from the gas valve (see Figure 7). gas valve propane hose Figure 7 2. Unscrew and disconnect the propane orifice from the bellows (see Figure 8). Propane orifice (dia2.09mm size) is painted with red mark.
  • Page 7 4. Connect the natural gas hose with the gas valve by screwing clockwise tightly (see Figure 10). Plug the natural gas fixture into the natrual gas supply piping system (see Figure 11). natrual gas supply gas valve natrual gas fixture piping system natural gas hose Figure 10...

  • Page 8: Leak Test

    BATTERY Make sure the control knob is in the “OFF” position. Unscrew the push button cap on the ignitor module located on the control panel to access the battery compartment. The ignitor module requires one AAA size battery (See Figure 13). WARNING: 1.

  • Page 9: Lighting Instructions

    inlet tube-bellows connection (Figure 17) gas valve-hose connection (Figure 16) To perform a leak test: 1. Make 2~3 oz. of leak solution by mixing one part liquid dishwashing detergent and three parts water. Noted: make sure control knob is “OFF”. 2.

  • Page 10: Care And Maintenance

    Observe Flame Height When Lit: Flame should be a blue / yellow color between 1~2 in. height (see Figure 19). Good Figure 19 CARE AND MAINTENANCE To enjoy the outstanding performance from your fire pit, make sure you perform the following activities on a regular basis: 1.

  • Page 11: Warranty

    Also excluded: loss of use of time and or inconvenience, money, travel, packaging or any other consequential or incidental damages. In no event shall Foremost Groups Inc. responsibil- ity exceed the value of the replacement product. Warranty is to the original purchaser when items are purchased from one of our authorized retailers and is not transferable.
