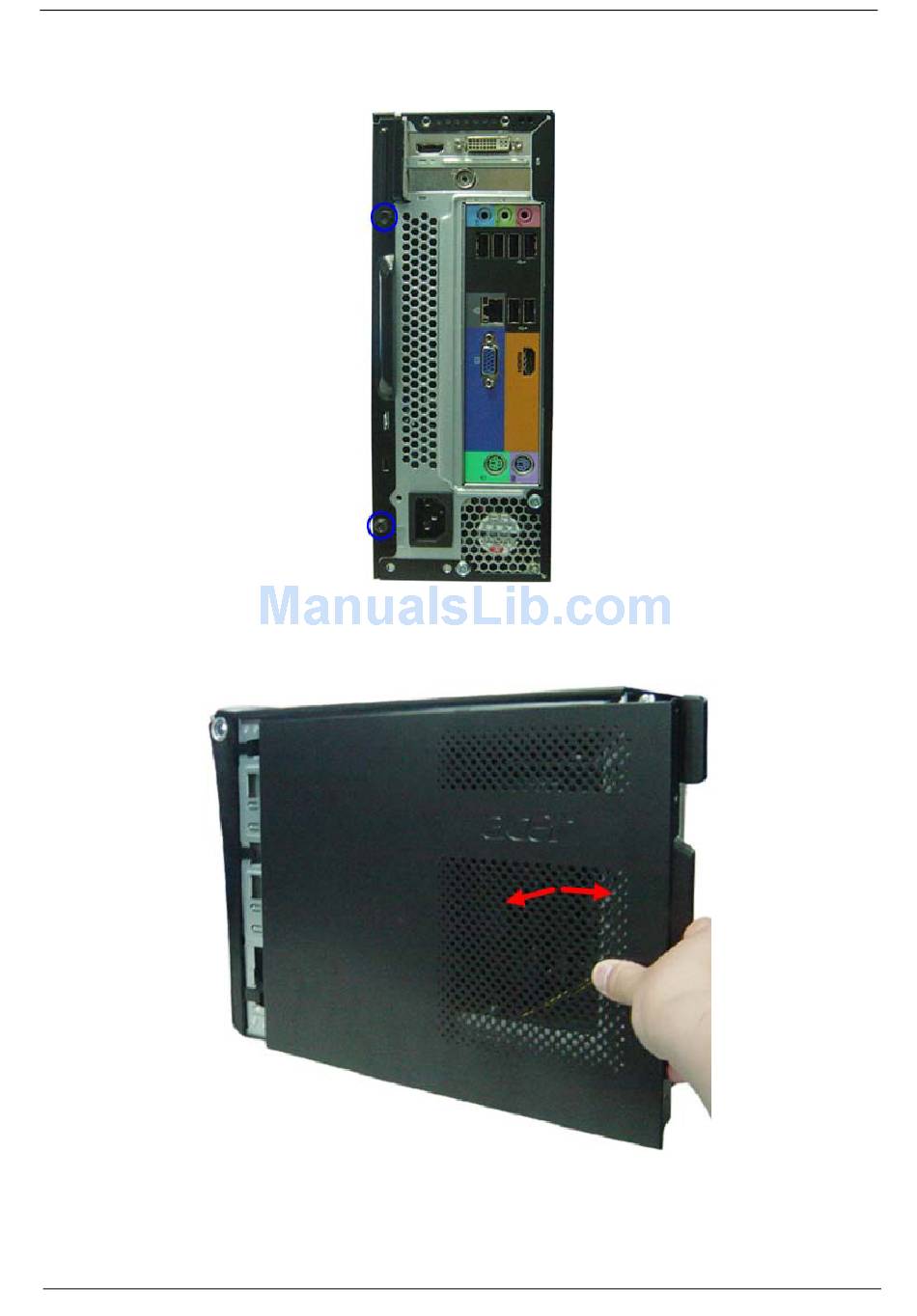

Removing the Side Panel
Remove the two screws located on the rear edge of the side panel.
1.
Slide the side panel toward the back of the chassis until the tabs on the cover disengage with the slots on
2.
the chassis.
Lift the side panel away from the server and put it aside for reinstallation later.
3.
Chapter 3
26
