Mainboard Layout

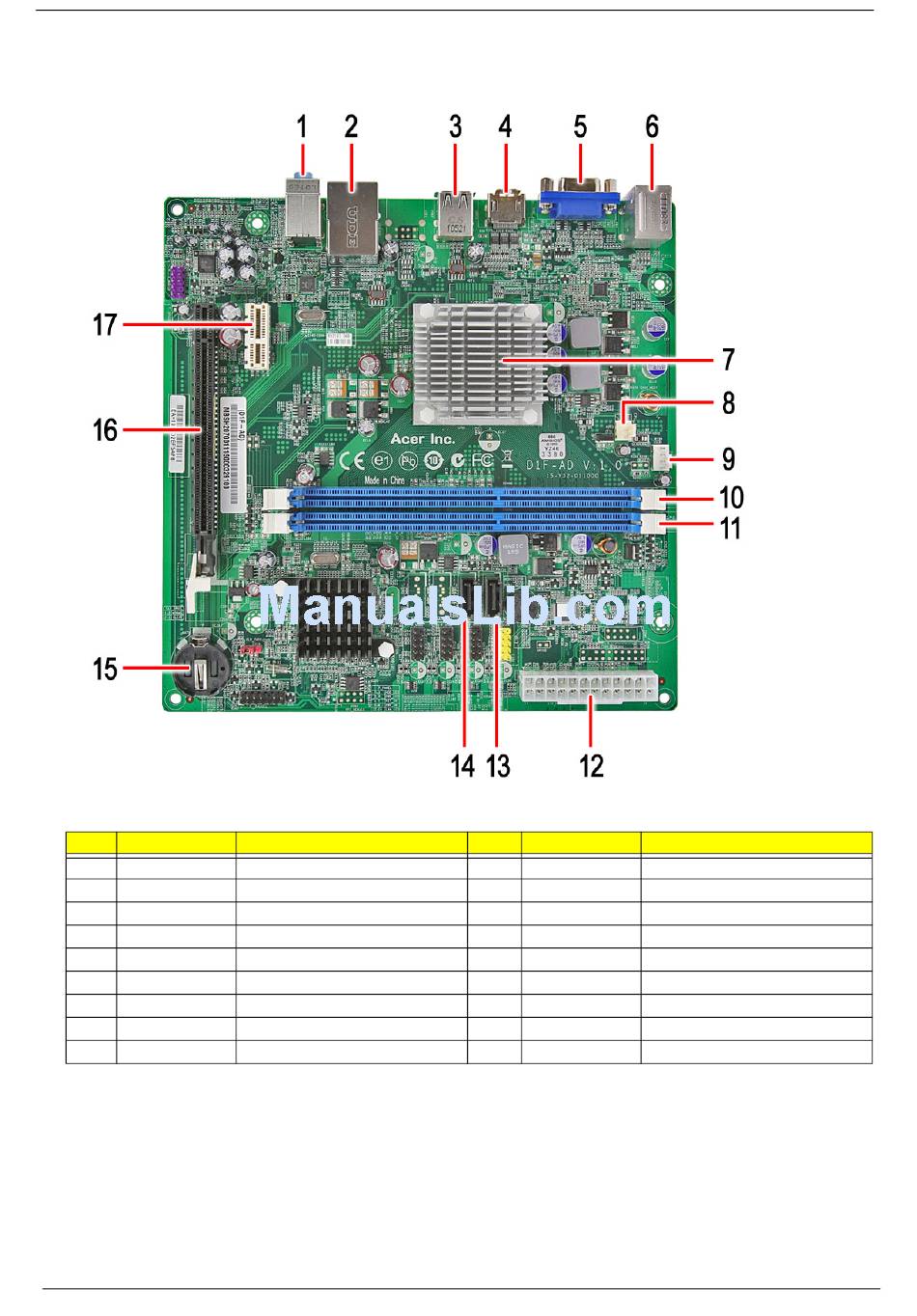

This section shows the major mainboard components.
No. Label
1 AUDF1
2 USBLAN1
3 USB2
4 HDMI1
5 VGA1
6 PSKM1
7 CPU1
8 CPU_FAN1
9 SYSFAN9
82
Description
Front panel audio jack header
RJ45+USB connectors
USB connectors
HDMI connector
VGA connector
Keyboard and mouse connectors
Processor socket
CPU cooling fan connector
System fan connector
No. Label
10 DIMM1
11 DIMM
12 ATX_POWER1
13 SATA1
14 SATA2
15 BAT1
16 PCIEX16
17 PCIEX1
Description
DDR3 240-pin slot 1
DDR3 240-pin slot 2
Standard 24-pin power connector
Serial ATA connector 1
Serial ATA connector 2
Battery holder
PCIEX16 Slot
PCIEX1 36-pin slot
Aspire AX1430 Service Guide
