Thor Kitchen TWC2403DI Instruction Manual

Hide thumbs Also See for TWC2403DI:
Table of Contents

Advertisement

Quick Links

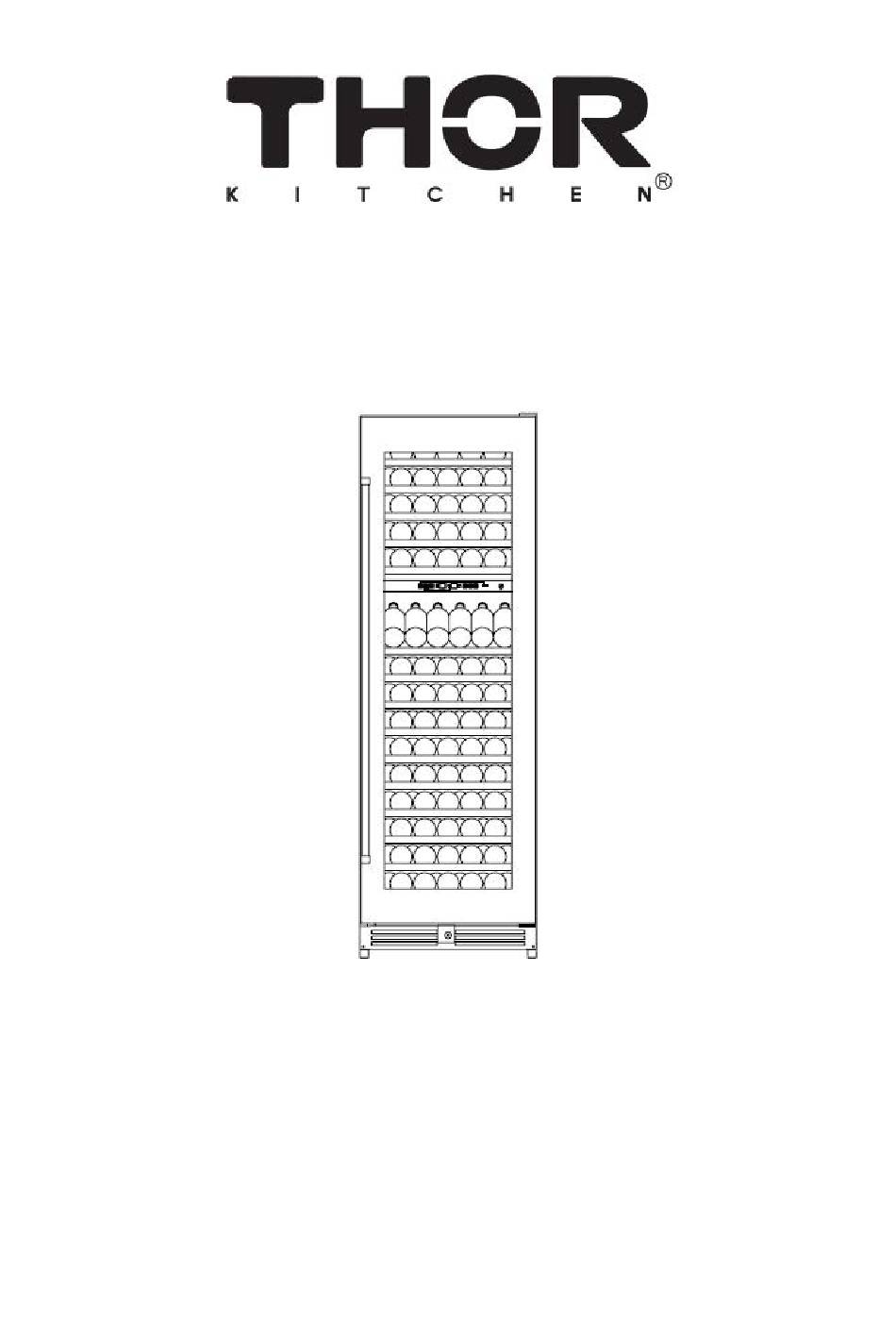

INSTRUCTION MANUAL
TWC2403DI
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TWC2403DI and is the answer not in the manual?

Questions and answers

Related Manuals for Thor Kitchen TWC2403DI

Summary of Contents for Thor Kitchen TWC2403DI

  • Page 1 INSTRUCTION MANUAL TWC2403DI...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Contents Page# ● Wine Cooler Package Contents ● Important Safety Instructions  Main structure of Product  Installation  Operating Instructions 7-10  Points of intentions  Product parameters  Layout and storage  Care and maintenance 11-12 ...

  • Page 3: Wine Cooler Package Contents

    ● Wine Cooler Package Contents  Instruction Manual  1 Wine Cooler unit ● Important Safety Instructions WARNING: To reduce the risk of fire, electric shock or personal injury, unplug or disconnect the appliance from the power supply before servicing. ...

  • Page 4: Main Structure Of Product

    Main Structure Of Product 1. Stainless steel Door 2. Stainless Steel Handle 3. Display Control panel 4. Display shelf 5. Roll-Out Wood Shelves 6. Lock 7. Adjustable Feet...

  • Page 5: Installation

    Installation Install handle Locate the handle(1)over the pins(3)of the door and tighten the handle by screwing the Allen key grub screws(2) CAUTION: do not over tighten the screws...
  • Page 6 Install the wine cooler: Your product has been designed built-in or free standing installation. Cutout Dimensions Dimensions of the recess Height of housing: 74Inch(1880mm) Depth of housing: 27.6Inch(701mm) Width of housing: 24.1Inch(612mm) MIN 24.1’ Attention: The ventilator should not be covered, or it will cause unpredictable breakdown;...

  • Page 7: Operating Instructions

    Operating Instructions It is recommended that you installed your appliance in a place where the ambient temperature is between 16-32℃（61℉-90℉）. If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected and it may not be possible to obtain temperature between 5-12℃...
  • Page 8 Temperature selection The wine cooler has two temperature zones. The temperature setting of upper zone is adjustable with the range 5-12℃（41-54℉）, which is ideal for storing sparkling and white wines. The temperature setting of lower zone is adjustable with the range 12-20℃ （54-68℉）, which is ideal for storing white and red wine.
  • Page 9 （41-54℉）or 12-20℃（54-68℉）) - You switch the appliance on, if the temperature inside the appliance is very different (+/- 4℃) from the temperature set after hours working - Too many items have been put into the unit at one time, and the temperature inside the appliance is very different (+/-4℃（39℉）) from the temperature set after 7 hours working.

  • Page 10: Points Of Intentions

    silent mode is the default factory setting, Thus, your can switch off the silent mode to switch to the ventilated cooling mode by pressing the key “+” (C) for 5 seconds. The cellar will emit 5 sound signals to confirm the passage in ventilated cooling mode. Conversely, to deactivate the ventilated cooling mode and return to the default silent mode, press and hold the key ”-”...

  • Page 11: Layout And Storage

    4, Temperature range in cabinet: 5-12℃（41-54℉） for upper zone,12-20℃（54-68℉） for lower zone. ●Layout And Storage Your cabinet was designed to store a maximum number of bottles securely. We recommend that you observe the below tips to optimize loading.  Remove tape from shelves once unit is stable and ready for storage. ...

  • Page 12: Troubleshooting Guide

     Long absences: If the appliance will not be used for several months, remove all items, turn off the appliance and unplug. Clean and dry the interior thoroughly. To prevent odour and mold growth, leave the door open slightly : blocking it open if necessary. Moving Your Wine Cooler ...

  • Page 13: Warranty

    Vibrations Check to assure that the Wine Cooler is level. The door will not close properly. The Wine Cooler is not level. The door was reversed and not properly installed. The gasket is dirty. The shelves are out of position. The Wine Cooler seems to make The rattling noise may come from the flow of the too much noise...
  • Page 14 Warranty and Product Registration Thor Group is not responsible for incidental or consequential damages. Under no circumstances will Thor Kitchen’s liability exceed the cost that you paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential...
  • Page 15 This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. Whenever you call our customer service at 877-288-8099 (THORKITCHEN WINE COOLER) for technical information and parts sales in the United States or to request service for your appliance, please have your complete model number and serial number ready.
