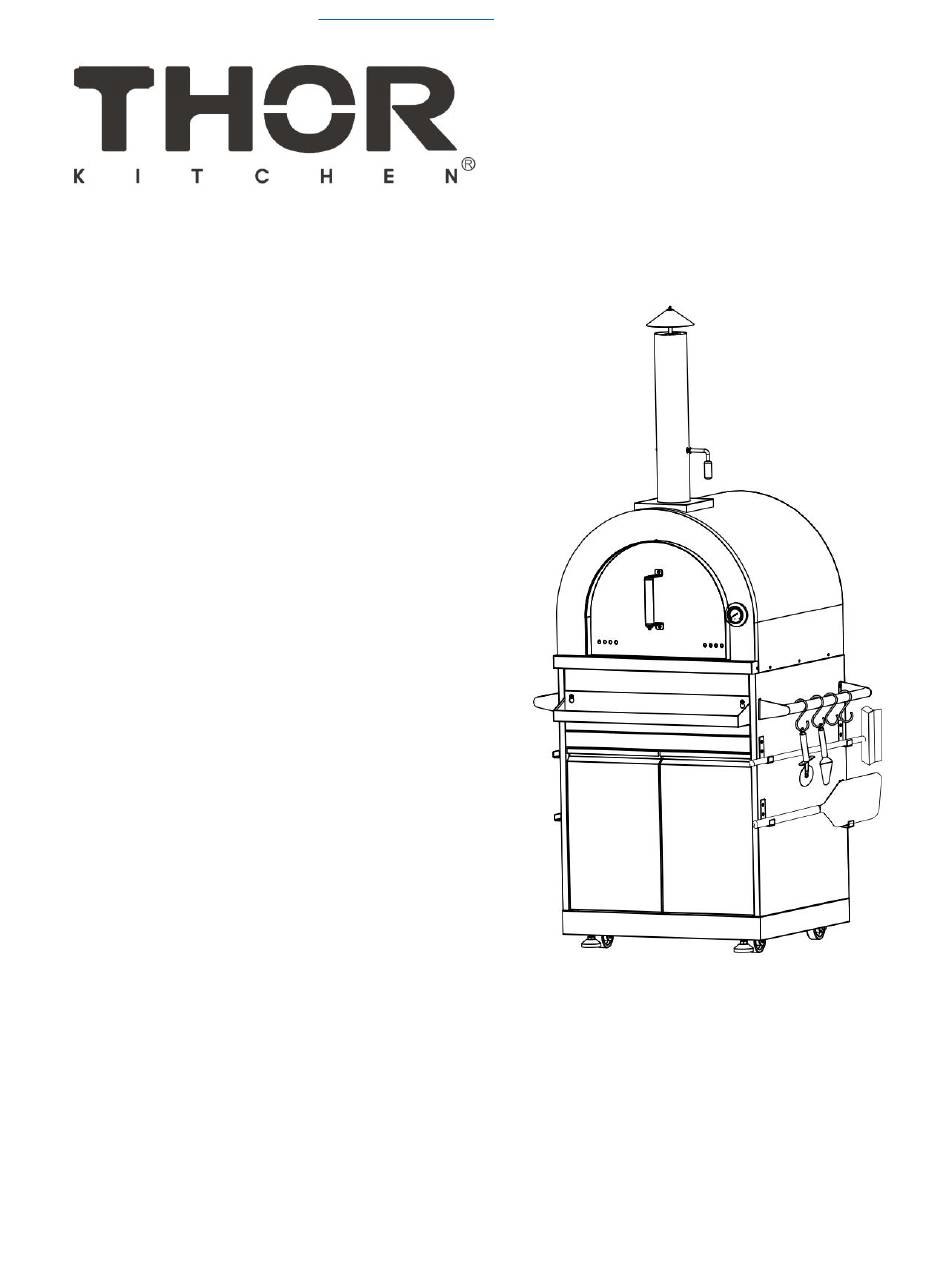

+1 877-288-8099 THOR KITCHEN OUTDOOR Pizza Oven Cabinet Installation Manual MODEL# MK07SS304 IMPORTANT: Save for electrical inspector’s use. Installer: Leave installation instructions with the homeowner. Homeowner: Keep installation instructions for future reference.
Page 2
+1 877-288-8099 Welcome Thank you for purchasing your Thor Kitchen Appliance! We appreciate your business and we recommend that you read this entire User’s Manual before operating your new appliance for the first time. This manual contains instructions on how to properly install and set up your new range, as well as insights into the unique features that our product offers.
Page 3
service@thorgroup.us +1 877-288-8099 Parts Explosive Pictures...
Page 4
+1 877-288-8099 Parts List If you are missing any part, please contact Thor Kitchen Customer Service Department at 877-288-8099 at business hours, or email service@thorgroup.us for help. Explosive # Part # Part Name Quantity 05.99.000119-000-A0 Chimney coping 05.19.008003-000-A0 Chimney supporting rod 22.99.009241-000-A0...
Page 5
service@thorgroup.us +1 877-288-8099 05.99.000200-000-A0 Pizza oven brush 05.99.000201-000-A0 Large pizza oven shovel ¼” Philips thumb head screw with anti- 06.02.000093-000-A0 slip design 06.10.000042-000-A0 Philips thumb head screw 06.11.008056-000-A0 flat head screw 06.09.000099-000-A0 1/4" nut 04.01.002580-000-A0 cabinet back connecting plate 04.01.002579-000-A0 cabinet front connecting plate 06.04.000030-000-A0 ¼”...
Page 7
service@thorgroup.us +1 877-288-8099 Cabinet Installation Step 1 1. Install 2 pcs supporting legs (Part # 18) to bottom welding part (Part # 21) and adjust the supporting legs to suitable position; 2. Use 16 pcs ¼” flat Philip’s screw head (Part # 37) to connect 2 pcs fixed casters (Part # 19) and 2 pcs universal casters with brake (Part # 20) to Part #21;...
Page 8
service@thorgroup.us +1 877-288-8099 Step 2 1. Use 2 pcs Philips thumb head screw (Part # 38) to install Kick panel plate (Part # 17) to Part # 21; 2. Use 3 pcs ¼” flat Philip’s screw head (Part # 37) to connect left side panel (Part # 10) to Part # 21;...
Page 9
service@thorgroup.us +1 877-288-8099 Step 3 1. Use 4 pcs Part # 37 to connect beam welding part (Part # 24) to Part # 10 and Part # 25; 2. Use 4 pcs Part # 37 to connect top cover welding part (Part # 15) to Part # 10 and Part # 25;...
Page 10
service@thorgroup.us +1 877-288-8099 Step 4 1. Make sure all the connections are smooth and the design is looking like below picture.
Page 11
service@thorgroup.us +1 877-288-8099 Step 5 1. Use 2 pcs ¼” 14” screw (Part # 37) to go through the two holes on Pizza oven door handle assembly (Part # 67), then go through 4 pcs mica plates (Part # 6), 2 pcs ¼” flat gasket (Part # 43), 2 pcs ¼” spring gasket (Part # 44), and 2 pcs ¼”...
Page 12
service@thorgroup.us +1 877-288-8099 Step 6 1. Use 4 pcs ¼” Philips thumb head screw with anti-slip design (Part # 37) to put 2 pcs ash pan holder (Part # 32) to the back of Pizza oven cavity (Part # 2. One part # 32 are installed, install ash pan welding assembly (Part # 27).
Page 13
service@thorgroup.us +1 877-288-8099 Step 7 1. Use 1 pc ¼” nut (Part # 40) and 1 pc ¼” flat gasket (Part # 43) to connect chimney coping (Part # 1) to chimney supporting rod (Part # 2) 2. Install Part # 1 and # 2 to the top of Chimney Pipe Assembly (Part # 3); 3.
Page 14
service@thorgroup.us +1 877-288-8099 Step 8 1. Put 4 pcs Cordierite Brick B (Part # 28), 2 pcs Cordierite Brick A (Part # 29) and 1 pc net cover (Part # 30) inside Pizza oven Cavity (Part # 4) 2. Insert Pizza oven door assembly (Part #8) into designated position on Part # 3.
Page 15
service@thorgroup.us +1 877-288-8099 Step 9 1. Use 6 pcs ¼” Philips thumb head screw with anti-slip design (Part # 37) to install Pizza oven cavity (Part # 4) to Cabinet left side panel (Part # 10) and Cabinet right panel (Part # 25). Make sure the connection is smooth; 2.
Page 16
service@thorgroup.us +1 877-288-8099 Step 10 1. Use 2 pcs Part # 37 to connect condiment storage welding assembly (Part # 16) to front panel assembly (Part # 15); 2. Use 24 pcs Parts # 39 to install door hinge (Part # 31) Part # 22 with Part # 10, and Part # 23 with Part # 25;...
Page 17
service@thorgroup.us +1 877-288-8099 Detailed Installation Pictures for Door hinge is shown below:...
Page 18
service@thorgroup.us +1 877-288-8099 Step 11 1. Use 4 pcs Part # 37 to connect Left handle welding assembly (Part # 11) to Left side panel (Part # 10), then put S-shape pothook (Part # 12) on Part # 2. Use 8 pcs Part # 37 to connect side panel hook 1 (Part # 13) and side panel hook 2 (Part # 14) to the left panel (Part # 10);...
