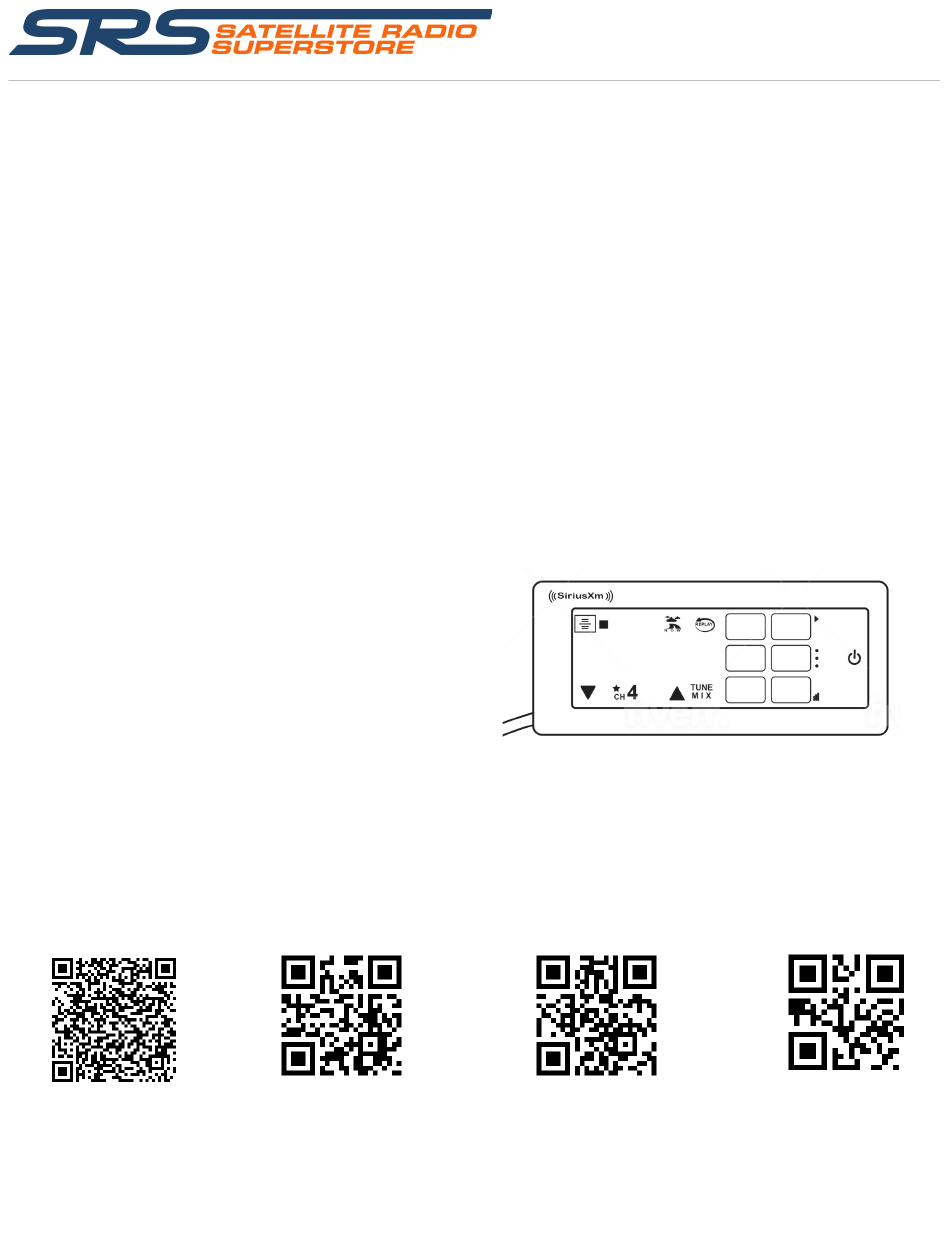

Thank you for purchasing the SiriusXM™ Commander Touch UTV Kit! The SiriusXM™ Commander Touch™ has these
exciting features to enhance your overall experience:
•
Enjoy SiriusXM through your vehicle's in-dash audio system with controls on the color touchscreen display
•
Compact touchscreen controller mounts directly to the UTV mount for a fully integrated full-color display with
album art, artist name, song title, channel logos and program information
•
Pause, Rewind and Replay live Satellite Radio
•
Automatically start songs from the beginning on your favorite channels with TuneStart™
•
Use TuneMix™ to hear a mix of songs from your favorite channels
•
Keep moving with the most current updates using Traffic & Weather Now™
•
Connects to any radio with either an AUX input or FM connection
•
Professional installation recommended for best results
•
Can be updated by a USB flash drive (not included) to add new features and capabilities as they become available
•
Works on the XM Network
Package Includes:
(1) Commander Touch™ Controller
(1) SiriusXM™ Radio Tuner with Multi Pin Cable
(1) SiriusXM™ Antenna
(1) FMDA25 Direct Wire Adapter
(1) Rubber Wrap for Controller
(1) Female AMPS Plate / (1) Male AMPS Plate
(1) RAM Mount Adapter
(1) Adhesive Swivel Mount
(1) AUX Audio Cable
Additional Resources
Scan the QR codes below for additional installation documentation, support articles and user manuals.
Online Installation Guide
Satellite Radio Superstore | www.SatelliteRadioSuperstore.com | (800) 513-8554 | contactus@SatelliteRadioSuperstore.com | Page 1
Commander Touch™
User Guide
Satellite Radio Commander Touch™
SXMCMTU64 UTV Kit Installation Instructions
Commander Touch™
Update Instructions
1
2
Need help?
Scan the QR code for
SMS/Text support
Advertisement
Related Manuals for SRS Labs SXMCMTU64
Summary of Contents for SRS Labs SXMCMTU64
- Page 1 Satellite Radio Commander Touch™ SXMCMTU64 UTV Kit Installation Instructions Thank you for purchasing the SiriusXM™ Commander Touch UTV Kit! The SiriusXM™ Commander Touch™ has these exciting features to enhance your overall experience: • Enjoy SiriusXM through your vehicle’s in-dash audio system with controls on the color touchscreen display •...
- Page 2 Prepping the Rubber Case The rubber case is used to keep out dust and water from the edges of the Commander Touch™ controller. On the back of the case are four holes used to mark the location of the four screw holes on the back of the controller. It is recommended to use a small screw driver to push through the case inside the circles and make a small hole.
-
Page 3: Flush Mount
Mount Assembly Options Before getting started, it is recommended to locate an installation spot on your UTV that will allow you to see the screen of the receiver and operate the unit safely while driving. There are three different mounting options included with this kit. - Page 4 1) Selecting the Correct Antenna Adapter Included in the kit are two FAKRA antenna adapters that are used to connect the FMDA25 to the Ride Command® antenna system. For vehicles prior to 2020 use the blue colored adapter. For vehicles manufactured in 2020 and newer use the cable with the black FAKRA connector.
- Page 5 3) Locate the RIDE COMMAND® AM/FM Antenna Port Locate the AM / FM antenna connector in your UTV. The color and location may vary based on the year and model of your vehicle. In our example it is the connect on the right of the connection cluster shown below. 4) Connect the FMDA25 to the Vehicle AM/FM Antenna Port Plug the connection from the FMDA25 labeled "TO VEHICLE FM RADIO"...
- Page 6 Step 5) Connect the Audio Cables to the SiriusXM Dock On the FMDA25 locate the audio cable labeled "TO SIRIUS RADIO" and connect the cable into the FM Port on the docking cradle. Shown by the arrows in the pictures below. Step 6) Connecting Power and Power Options Included in the package are 3 power options 1.
- Page 7 7) SiriusXM Radio Antenna Installation Once you have the audio and power connected it's time to install the SiriusXM Radio antenna. It is recommended to select a location on your UTV that will allow the antenna to have maximum clearance from a roof or other objects.
-
Page 8: Installation Wiring Diagram
Installation Wiring Diagram Refer to the wiring diagram below and install the Power Wiring Harness, and the AUX In or FM Input audio connection. Commander Touch Connections Display Controller Connections Display Controller Pigtail Cable: Connects to the DISP connection on the Tuner Module. Micro USB Port: SiriusXM may occasionally release a system software update for Commander Touch. - Page 9 Install the Power Wiring Harness The wiring harness has 4 wires: BAT (battery, yellow); ACC (accessory, red); ILL (illumination, orange); GND (ground, black). When installing the harness, keep the fuse holder which is connected to the BAT wire in a location that is accessible in case the fuse ever needs to be replaced.
- Page 10 5. The audio level can be adjusted by swiping to the Settings page, tap Audio Options, then tap Audio Output Level and adjust the audio output level. Connecting the Audio Using the FMDA25 FM Direct Adapter Certain models of motorcycles will require adapters to connect the AM/FM antenna to the FMDA25 and to connect the FMDA25 to the motorcycle’s radio.
- Page 11 9. The audio level can be adjusted by swiping to the Settings page, tap Audio Options, then tap Audio Output Level and adjust the audio output level. NOTE! The Audio Output Level adjusts both the AUX audio output level as well as the FMDA audio output level.
