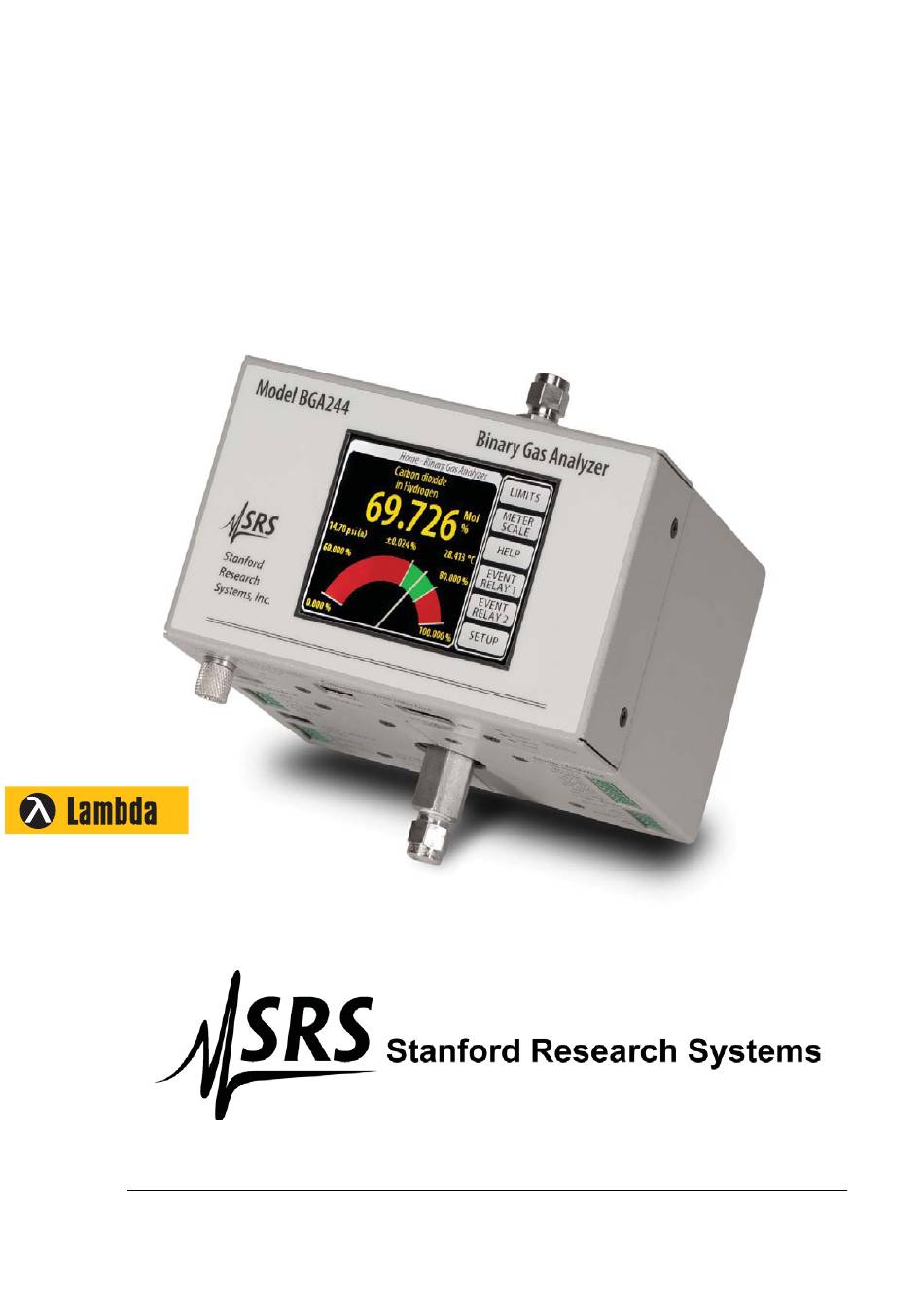

- Page 1 BGA244 Binary Gas Analyzer Quick Start Guide Distribution in the UK & Ireland Lambda Photometrics Limited Lambda House Batford Mill Harpenden Herts AL5 5BZ United Kingdom info@lambdaphoto.co.uk W: www.lambdaphoto.co.uk +44 (0)1582 764334 +44 (0)1582 712084 Revision 1.0...
- Page 2 Support, Repair/Calibration. All users returning a BGA244 back to the factory for repair and/or service must submit a correctly completed “Declaration of Contamination of Equipment” form, available as part of the RMA process. The SRS personnel carrying out repair and service of the BGA244 must be informed of the condition of the components prior to any work being performed.
-
Page 3: Safety Procedures And Precautions
Purge the instrument under a ventilation hood. Wear gloves for protection during this procedure. EXPLOSIVE ENVIRONMENT WARNING The BGA244 is not ATEX rated. Under normal operating conditions the BGA244 cannot ignite the gas being analyzed. However, if the instrument is used with flammable or explosive gas mixtures, SRS recommends the use of flame arrestors on both gas ports. - Page 4 “Declaration of Contamination of Equipment” form, available as part of the RMA process. The SRS personnel carrying out repair and service of the BGA244 must be informed of the condition of the components prior to any work being performed. See the BGA244 User Manual, Appendix D: Declaration of Contamination for information required for the RMA form.
- Page 5 BGA244 User’s Manual. It is recommended to read the following chapters of the BGA244 User Manual prior to installing and operating the BGA244. ƒ Chapter 2 (Installation Guide) prior to installing the BGA244 into your system ƒ...
- Page 6 Do not remove the gas port caps until just prior to connecting the unit to your gas manifold to reduce the chance of contamination of the cell. Inspect all components of the SRS BGA244 upon unpacking. Report any damage to Stanford Research Systems immediately. Compare the contents of the shipping container to the list below and report any discrepancies.
- Page 7 Getting Started What is included with the BGA244E 1. One BGA244E (BGA244 installed within a NEMA / UL-50 enclosure) 2. One 6’ (1.8 m) USB cable 3. One Quick Start Guide (this document) Accessories (if ordered) 1. BGA-24 +24 V Power Supply 2.
-
Page 8: Quick Start
Getting Started Quick Start This guide is intended to help users get started making measurements with the BGA244, BGA244HP or BGA244E. If the BGA244 has accessory BGA-M (metal cover) in place of the display it is recommended to use the BGAMon software to configure the unit and monitor the results. -
Page 9: Installation And Configuration
Plan your installation, including mounting and gas tubing connections. Depending on your application, this can be as simple as setting the BGA244 on a bench and connecting flexible tubing or may involve hard mounting the unit and forming metal tubing. Be sure to clean out gas lines prior to connecting them to the BGA244 to avoid contamination. - Page 10 Allow it to install the drivers if you plan to configure or control the BGA244 using this computer. If there are difficulties installing the driver, see Appendix E of the User Manual for details on manually installing the drivers.
