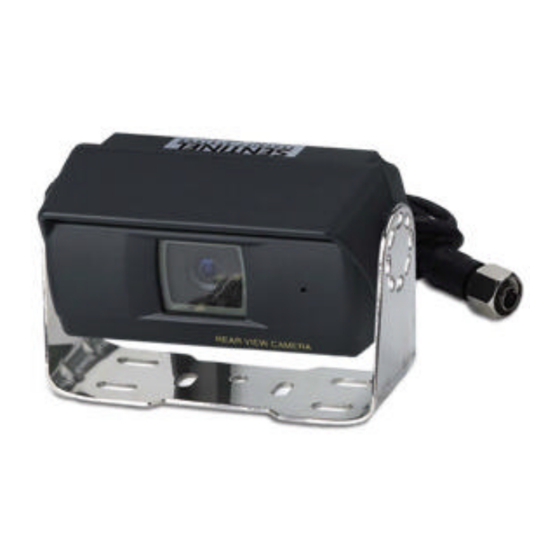

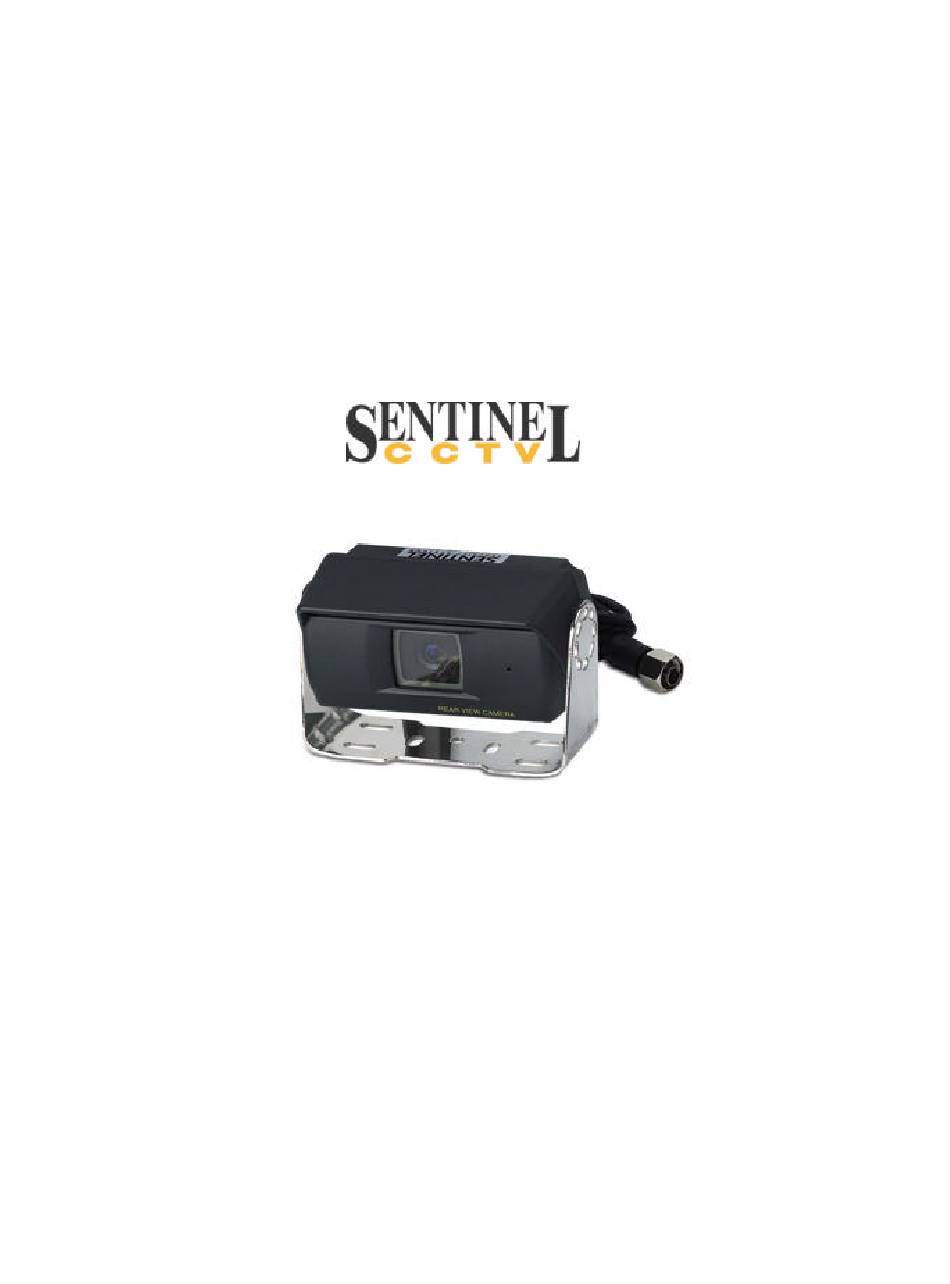

- Page 1 B&W RearView Camera Installation & Operation CA72 (Camera) FOR MORE INFORMATION WWW.STRATEGICVISTA.COM BEFORE OPERATING THIS SYSTEM, PLEASE READ THIS MANUAL THOROUGHLY AND RETAIN IT FOR FUTURE REFERENCE...
-
Page 2: Safety Precautions
Safety Precautions Before using this unit please read these operating instructions carefully. Take special care to follow th warnings indicated on the unit itself as well as the safety suggestions listed below. Keep them handy for future reference. Power source – The unit should be connected to power supply only of the type described in the operating instructions or as marked on the unit. -
Page 3: Table Of Contents
Table of Contents Safety Precautions………………………………………………………. Introduction……………………………………………………………….. System Contents………………………………………………………… Features…………………………………………………………………... Camera Controls………………………………………………………… Camera Installation……………………………………………………… Connections……………………………………………………………… Operating Instructions………………………………………………….. Care & Maintenance……………………………………………………. Specifications……………………………………………………………. -
Page 4: Introduction
Introduction Thank you for purchasing the Sentinel Black & White Rearview Cam era . This camera promotes and prevents backing-up and parking accidents, where you can view or check on the traffic behind your vehicle, or when rounding corners (blind spot prevention). This camera can be used in combination with the Sentinel monitor for waste trucks, RV campers, vans &... -
Page 5: Camera Controls
Camera Controls Lens Microphone Mounting Bracket Cable Pin Number Description Camera Connector Not Connected Video Output Audio DC 12V power Ground Camera Installation Allen key Supplied Note: Shake proof and plain washers to be fitted 1.8M, 4 Pin Cable with mini DIN Plug (female) 1. - Page 6 Camera Installation 1. At camera mounting position, fit the camera mounting bracket to its position using the supplied screws on the center hole and slide hole. 2. Turn the bracket left and right to a correct direction and then tighten the screws.
-
Page 7: Connections
Connections Back of Monitor DC12-24V CAM 1 CAM 2 VIDEO NOR MIR AUDIO Fuse Power cable lead (Red) L=15 m L= 15 m Ground lead (Black) Reverse power lead (Green) L= 5 m L= 1.8 m Camera A L=5 m Waterproof Connector L= 1.8 m Camera B... -
Page 8: Operating Instructions
Operating Instructions • When you turn the ignition key to the Accessory or ON position, power is supplied to the monitor and the monitor is in standby (Power button not pushed) • When you push the power button you can view the picture from the camera manually •... -
Page 9: Specifications
Specifications Camera Pick-up Device 1/3” B&W CCD Picture Elements 270,000 pixels Fixed Focus Lens 3.0 mm Viewing Angle 120° Diagonal Horizontal Resolution 380 lines Video Output 1V p-p, 75 ohms Minimum Illumination 0.5 lux Shock Rating 6.8 g Vibration 0 – 2000 Hz Input Voltage Range 12VDC from the monitor Operating Temperature...
