Summary of Contents for Sentinel CCTV RV56

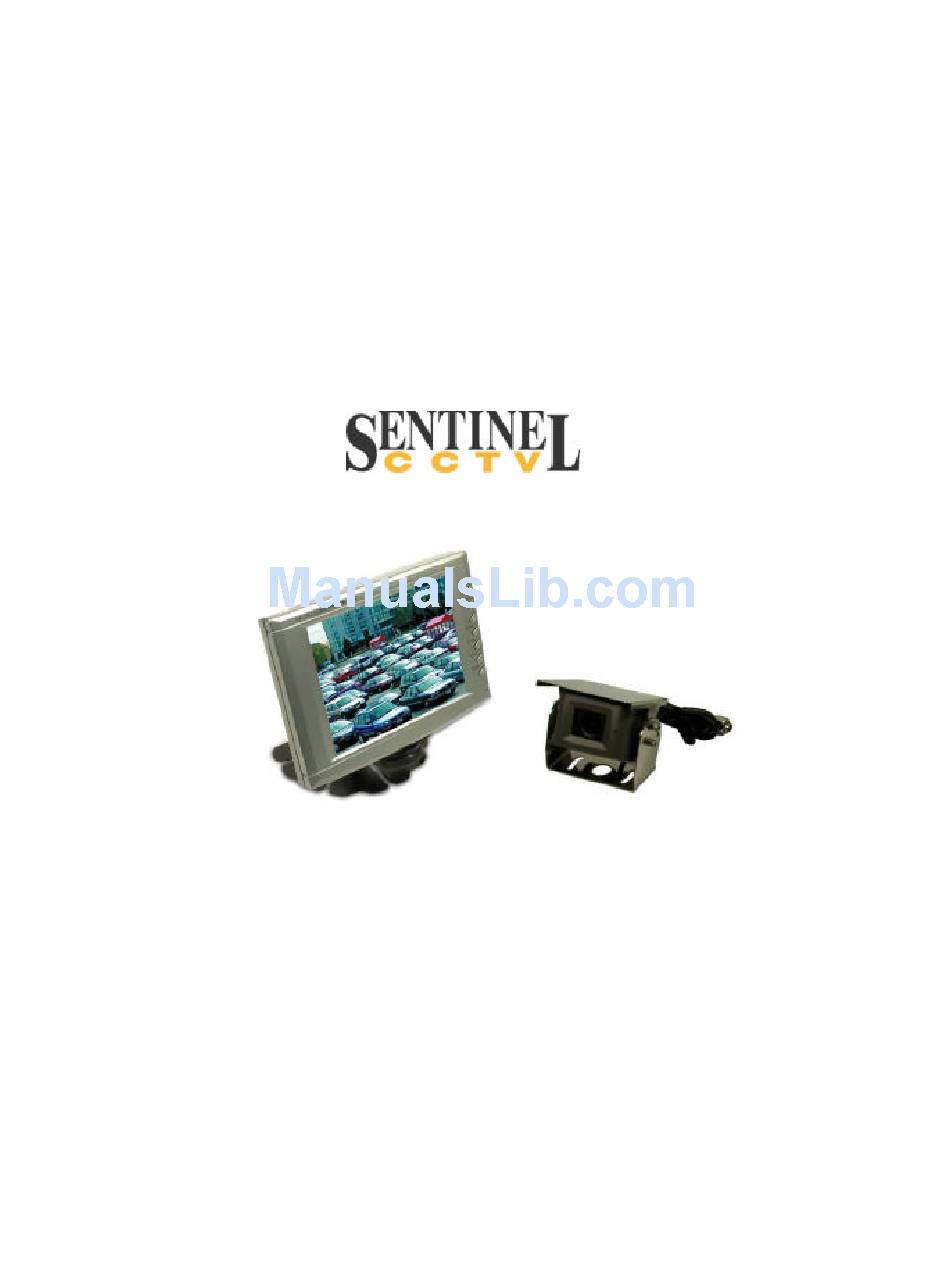

- Page 1 5.6” Color Rear View Safety System Installation & Operation RV56 (Includes MO56 monitor & CA56 camera) FOR MORE INFORMATION WWW.STRATEGICVISTA.COM BEFORE OPERATING THIS SYSTEM, PLEASE READ THIS MANUAL THOROUGHLY AND RETAIN IT FOR FUTURE REFERENCE...
-
Page 2: Safety Precautions
Safety Precautions Before using this unit please read these operating instructions carefully. Take special care to follow th warnings indicated on the unit itself as well as the safety suggestions listed below. Keep them handy for future reference. Power source – The unit should be connected to power supply only of the type described in the operating instructions or as marked on the unit. -
Page 3: Table Of Contents
Table of Contents Safety Precautions………………………………………………………. Introduction……………………………………………………………….. System Contents………………………………………………………… Features…………………………………………………………………... Monitor Controls Front Panel………………………………………………………… Power Pack Controls………………………….………………………… Camera Controls………………………………………………………… Camera Installation……………………………………………………… Monitor Installation……………………………….……………………… Connections……………………………………………………………… Operating Instructions………………………………………………….. Care & Maintenance……………………………………………………. Specifications……………………………………………………………. -
Page 4: Introduction
Introduction Thank you for purchasing the Sentinel 5.6” Color Rear View Safety System. This system promotes and prevents backing-up and parking accidents by allowing you to view or check on the traffic behind your vehicle, or when rounding corners (blind spot prevention). This system is suitable for waste trucks, RV campers, vans, delivery vehicles &... -
Page 5: Monitor Controls
Monitor Controls Front Panel 1. Power : Power On/Off button 2. Menu : Press the MENU button to go into the programming mode for contrast, brightness, color and tint 3. Volume ( - VOL + ) : Control the volume up/down or the picture in the MENU mode 4. -
Page 6: Power Pack Controls
1. Power Input : Power input wires (Green, Black, Red) 2. NOR/MIR Switches: When the switch is in the NOR (Normal) position the picture for that particular camera is normally displayed. When the switch is in the MIR (Mirror) position the picture will be reversed (Mirror Image) for that particular camera 3. -
Page 7: Camera Controls
Camera Controls Lens Microphone Mounting Bracket Pin Number Description Camera Connector Not Connected Video Output Audio DC 12V power Ground Camera Installation Mount Sunshield over camera using the 2 screws provided 1. Connect the 1.8 M cable from the camera to the short 5M piece of the 20M (15M + 5 M) 2-piece extension cable provided. - Page 8 Camera Installation 1. At the desired camera mounting position, fit the camera mounting bracket into position using the supplied screws on the center hole and slide hole. 2. Turn the bracket left and right to a correct direction and then tighten the screws.
-
Page 9: Monitor Installation
Monitor Installation • Install the monitor on a surface which will support more than 1.8 kg (4 lbs) of weight • Do not install the unit in an extremely hot or humid place (radiator, air duct, etc) or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock •... - Page 10 Monitor Installation Fan Shaped Bracket Insert Fix Knob here L-Shaped Bracket Top View Thumb Screw Side View Thread – to insert into bottom of monitor Back of TFT Monitor Assembled Monitor Bracket...
-
Page 11: Connections
Connections System uses a maximum of 3 cameras OPTIONAL Connect the RED wire to the (10V–32V DC) power terminal, which is energized with the ignition key. Connect the BLACK wire to the metal portion of the vehicle or the negative battery post. -
Page 12: Operating Instructions
Operating Instructions When you turn the ignition key to the Accessory or ON position, power is supplied to the monitor. To power the monitor push the ON/OFF power button. The monitor is turned off when the ignition key is in the off position When you set the gear lever in the reverse position, the monitor is turned on and the picture from the Camera 1 appears. -
Page 13: Specifications
Specifications Monitor TV System Picture: 5.6” TFT LCD Color monitor with OSD (On-Screen Display) function Power Source 12V DC ± 10% Power Requirements 10V ~ 32V Operating Temp. -10°C ~ +60°C Dimensions 174 (W) x 129 (H) x 36 (D) mm Weight 540 g Camera...
