Removing the Bezel Door

1. Perform the pre-disassembly procedure described on page 28.

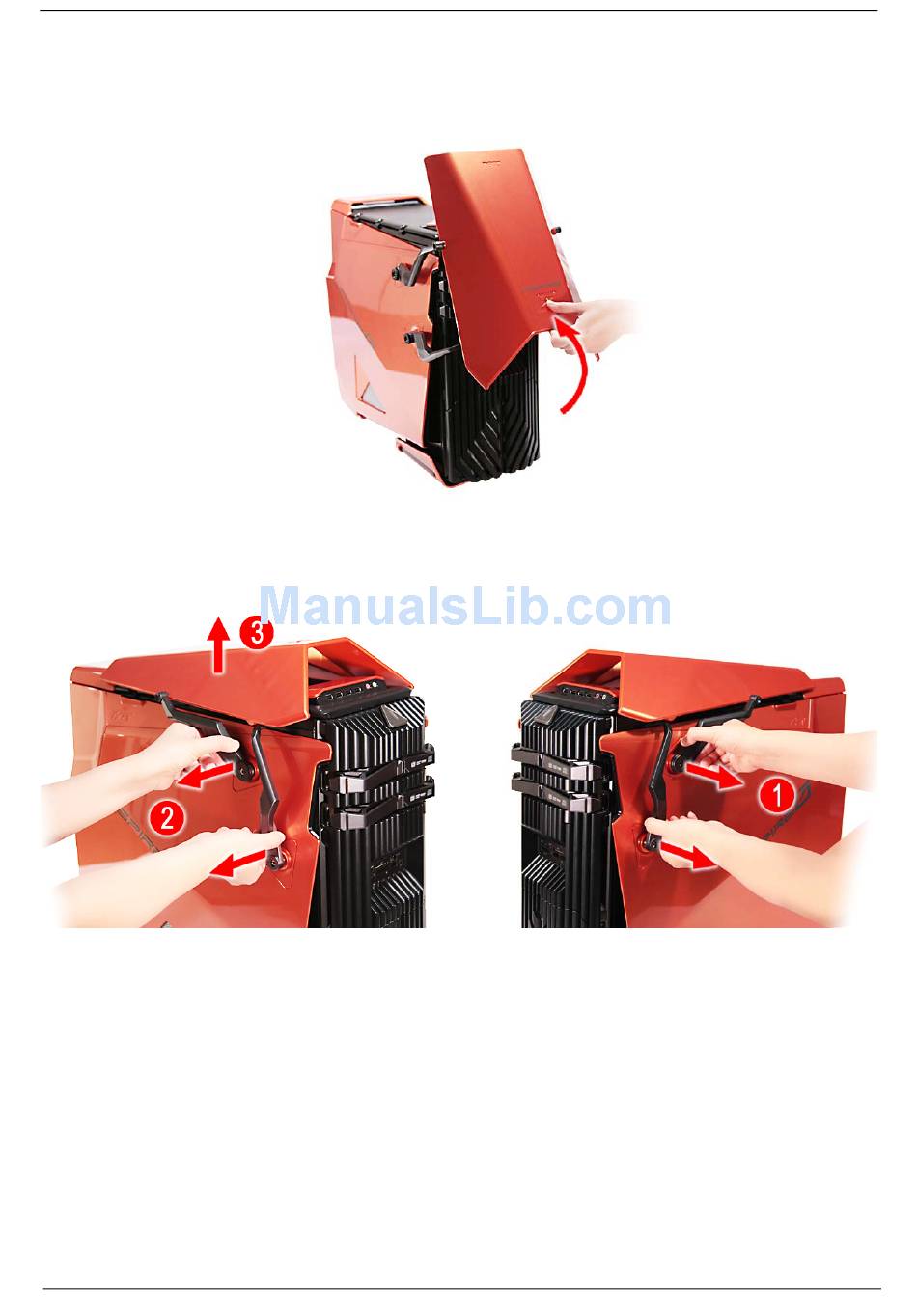

2. Grasp the front edge of the bezel door, then tilt up until it is aligned with the top panel.
3. Remove the four screws that hold the door hinges to the right side panel (1).
4. Remove the four screws that hold the door hinges to the left side panel (2).
5. Detach the bezel door with hinges from the system (3).
Chapter 3 31
