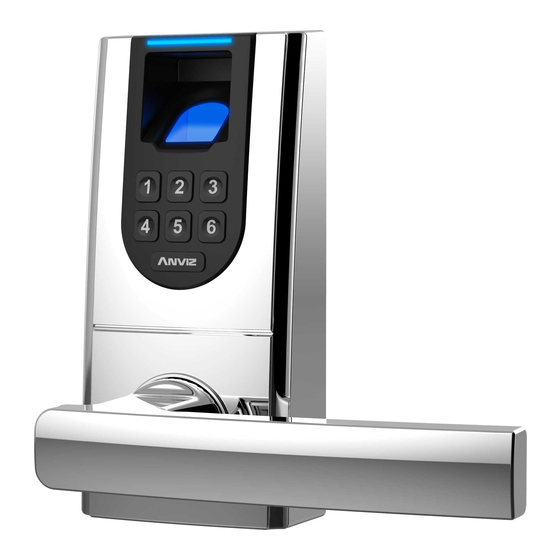

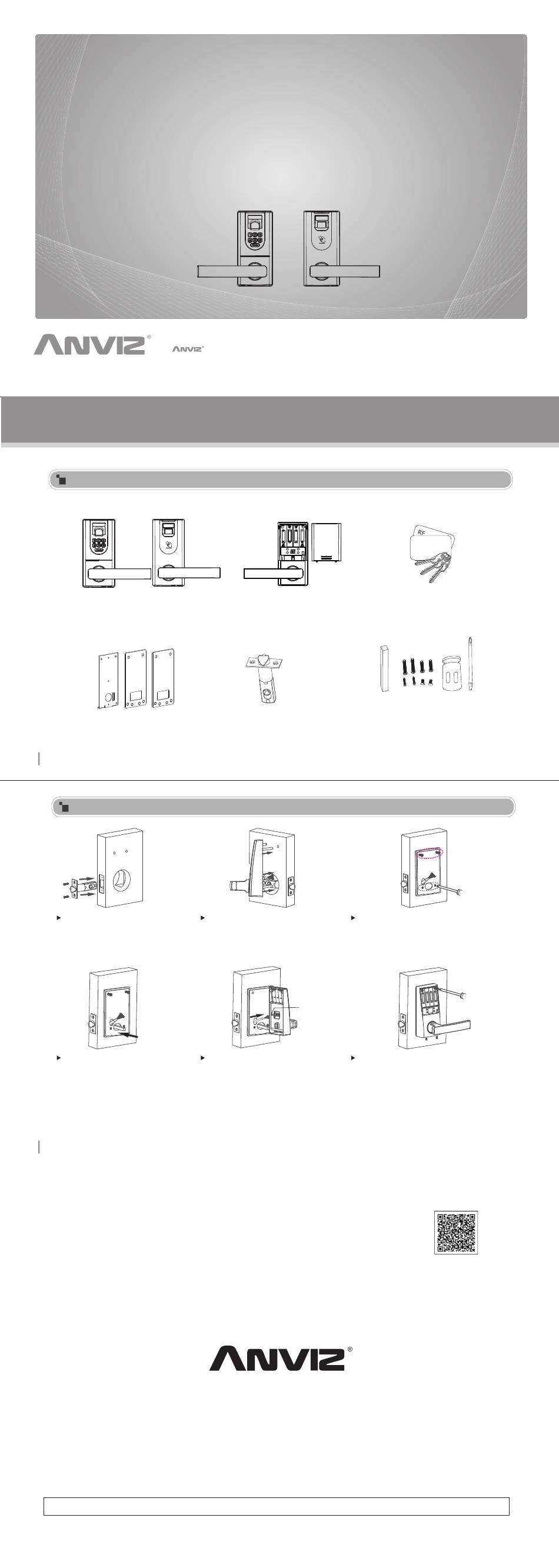

Anviz L100 Installation Manual

Installation Instructions

Product And Accessories

L100K
Outside panel
2 Rubber mats and 1 mounting plate
-1-

Installation

* See Note 1
Step 1
Insert latch bolt into the door as shown
in diagram. Fasten the screws.
Step 4
Install the lock spindle through the
latch bolt and make sure the lock
spindle plugs into the outside panel.
Note 1: Make sure the hole dimension is fit for bolt installation (Refer to chapter "New Door Preparation").
Note 2: Make sure the bottom screw rod get through the holes in latch bolt.
-2-
www.anviz.com
Installation Guide
Home & Business Smart Lock
L100K/L100
Before Connecting, operating or adjusting this product, please read the instructions carefully.
Keep this manual in case you need it at a later date.
is registered trademark of Anviz Global Inc. in the United States and other countries. It cannot be used without the
permission of Anviz.
L100
Inside panel and battry cover
Latch Bolt
Step 2
Install outside panel with rubber mat on
door, and route the wire through the hole
over the latch bolt.
Step 5
Remove the above 2 screws installed on
mounting plate. Connect wire from the
Outside panel to Inside panel. Install
spindle into inside panel.
Intelligent.Security
BIOMETRIC - RFID - SURVEILLANCE
(V3.1)
RFID cards (L100) and Emergency keys
Lock Spindle, Screwdriver and fixing Screws
(4 long screws for outside panel mounting,
2 short screws for inside panel mounting,
2 short screws for bolt fixing.)
* See Note 2
Step 3
Install
wire through left hole. Install four screws on the
Mounting Plate
Recommend: DO NOT OVER TIGHTEN the two
screws above.
Initialization button
Step 6
Fasten four screws to fix the inside panel.
Turn the knob to make sure that you can
lock push the dead bolt.
Install alkaline batteries and battery cover.
L100K/L100
RF Key
Mounting Plate with Rubber Mat and route
to fix the position.
