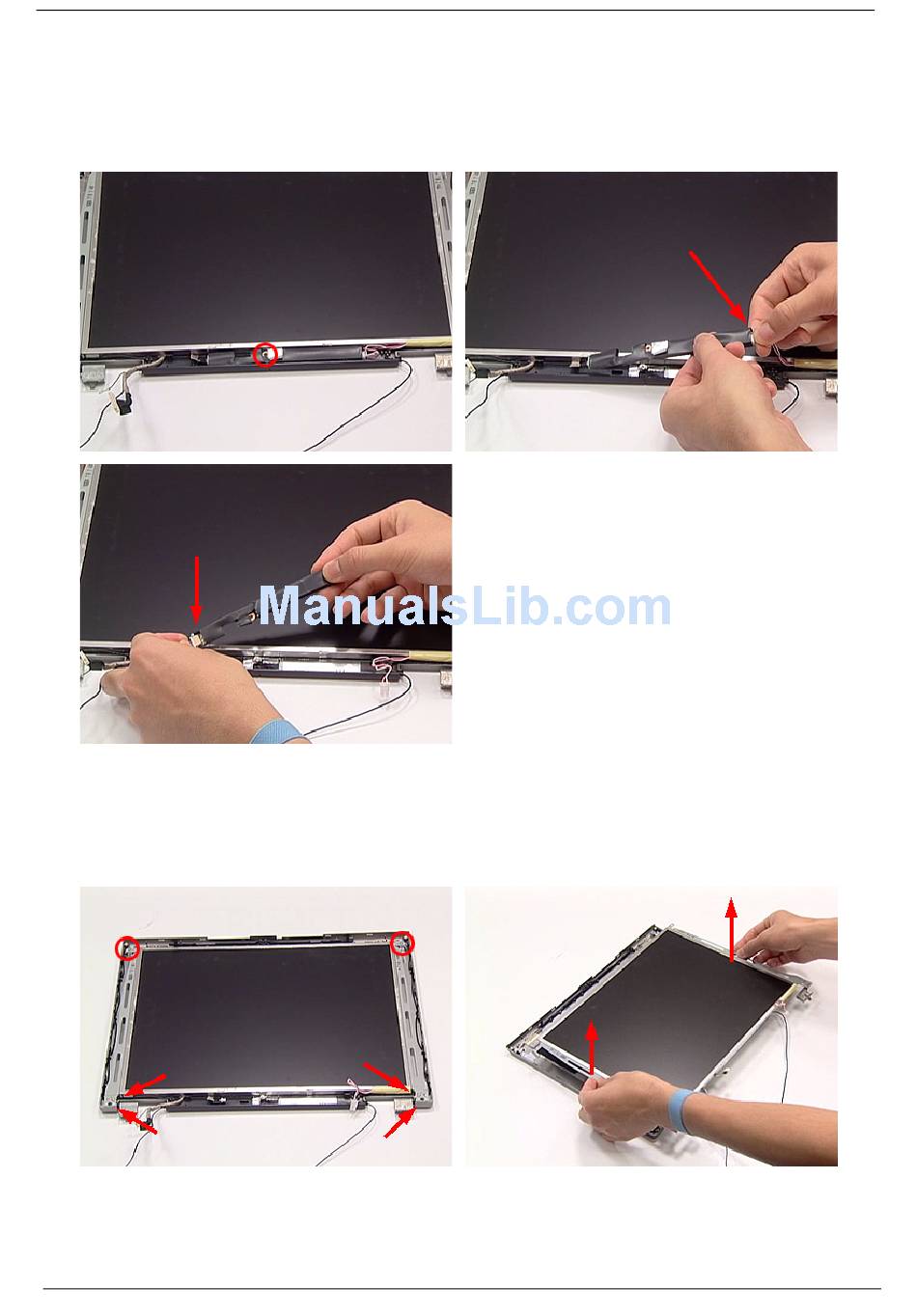

Removing Inverter Board
1. Release the screw holding the inverter board.
1. Carefully disconnect the backlight cable.
2. Carefully disconnect the LCD cable then remove the inverter board.
Detaching LCD Panel
1. Release the six screws securing the LCD panel.
2. Then detach the LCD panel from the LCD cover.
73
Chapter 3
