Removing Touch Pad Board

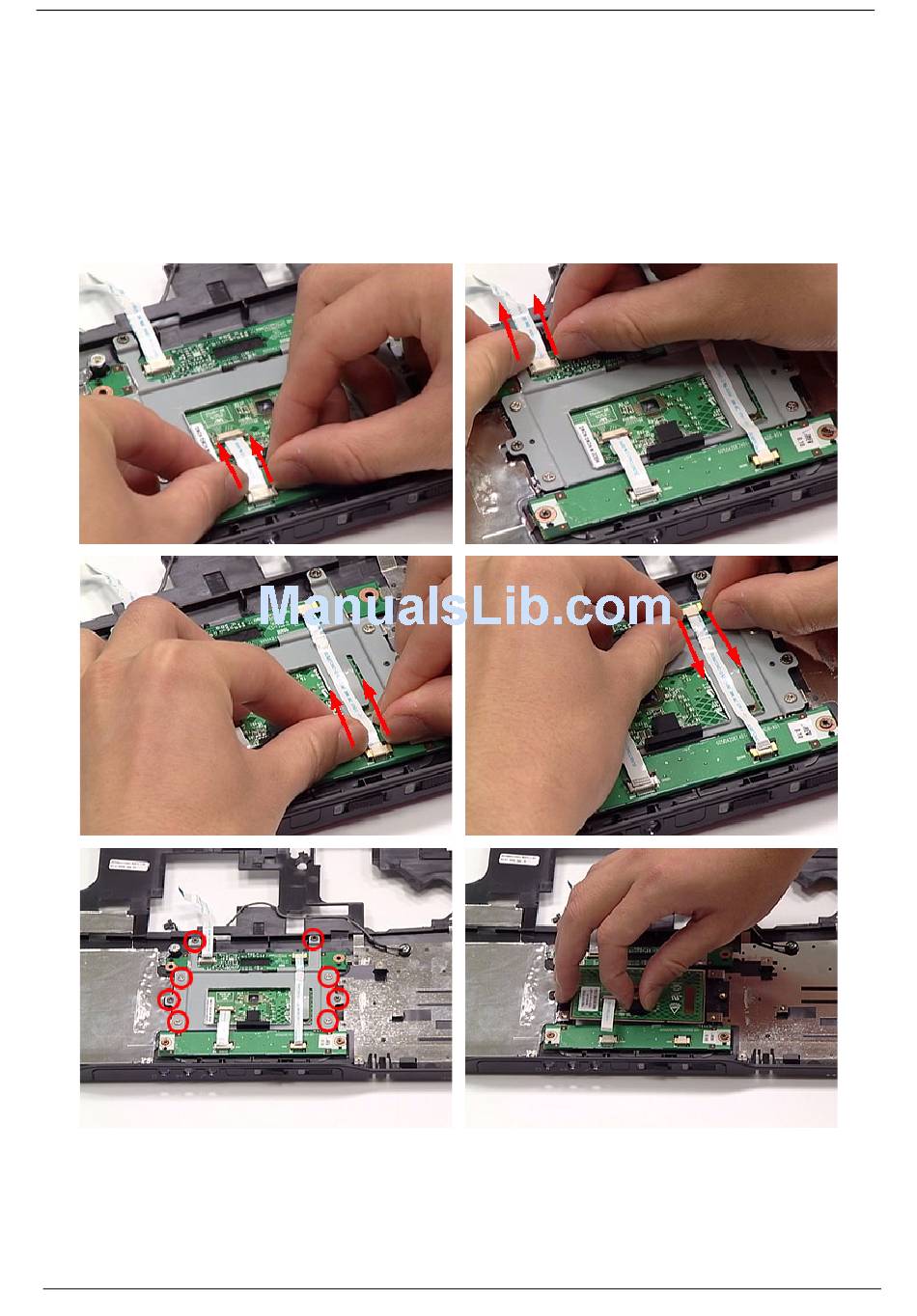

1. Release the FFC latches then disconnect the following FFCs in sequence as shown: 1) click button board to
touch pad board FFC; 2) stick point board to main board FFC; 3) click button board to stick point board FFC; 4)
the other end of click button board to stick point board FFC.
2. Release the eight screws holding the touch pad board bracket then remove the touch pad board bracket.
3. Remove the touch pad board.
4. Remove the stick point board.
5. Release the two screws holding the click button board then remove the click button board.
