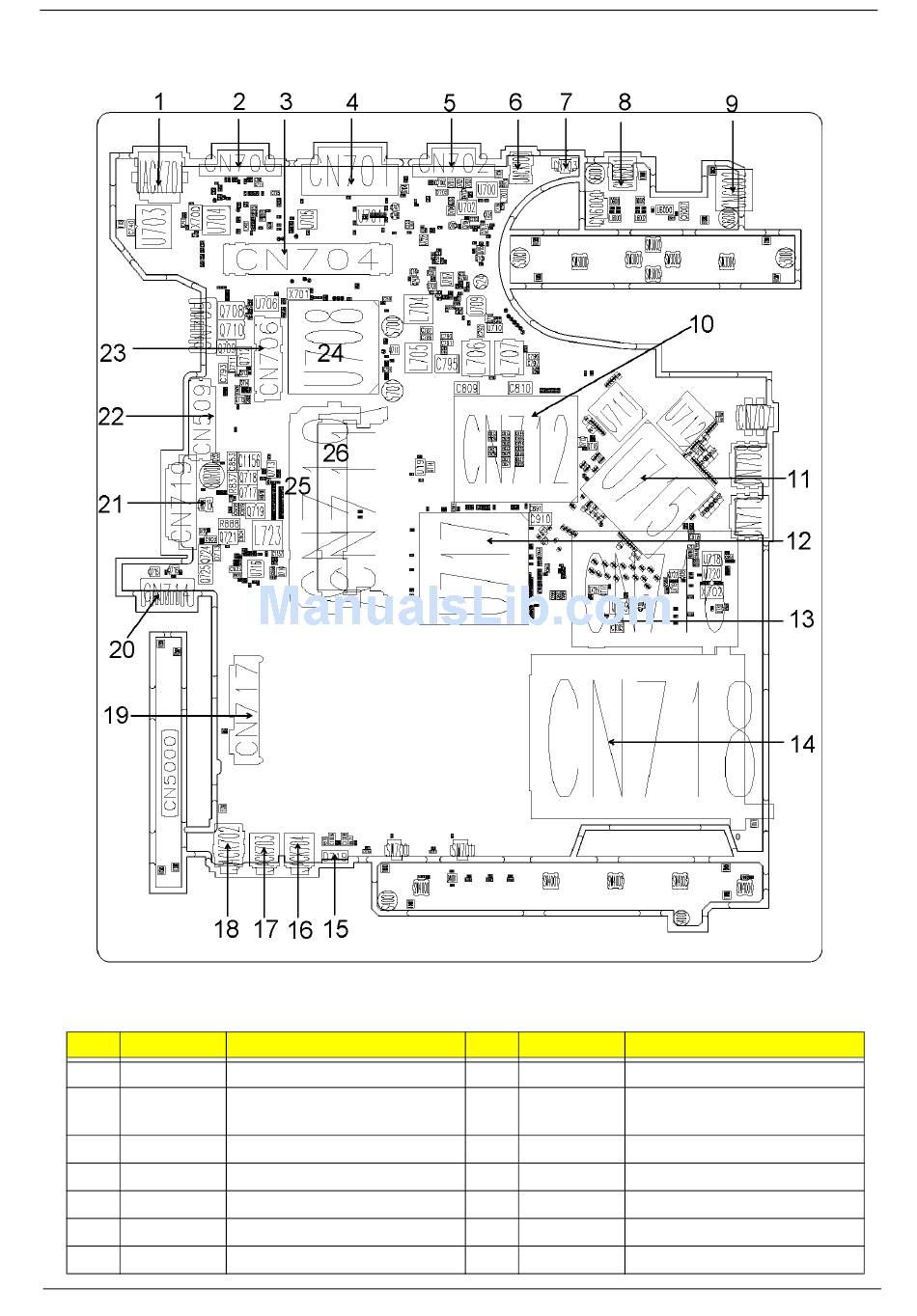

Bottom view
#
Name
1
JACK701
3
CN704
5
CN702
7
CN703
9
CN6002
11
U715
13
CN716
Chapter 5
Description
Ethernet jack
Docking connector
External VGA port
Fan cable connector
S-video port
Graphic controller
New card socket
#
Name
2
CN700
Serial port
4
CN701
Digital video interface-digital
port
6
JACK700
DC-in jack
8
CN6001
Modem jack
10
CN712
CPU socket
12
U717
North bridge
14
CN718
PCMCIA socket
Description
96
