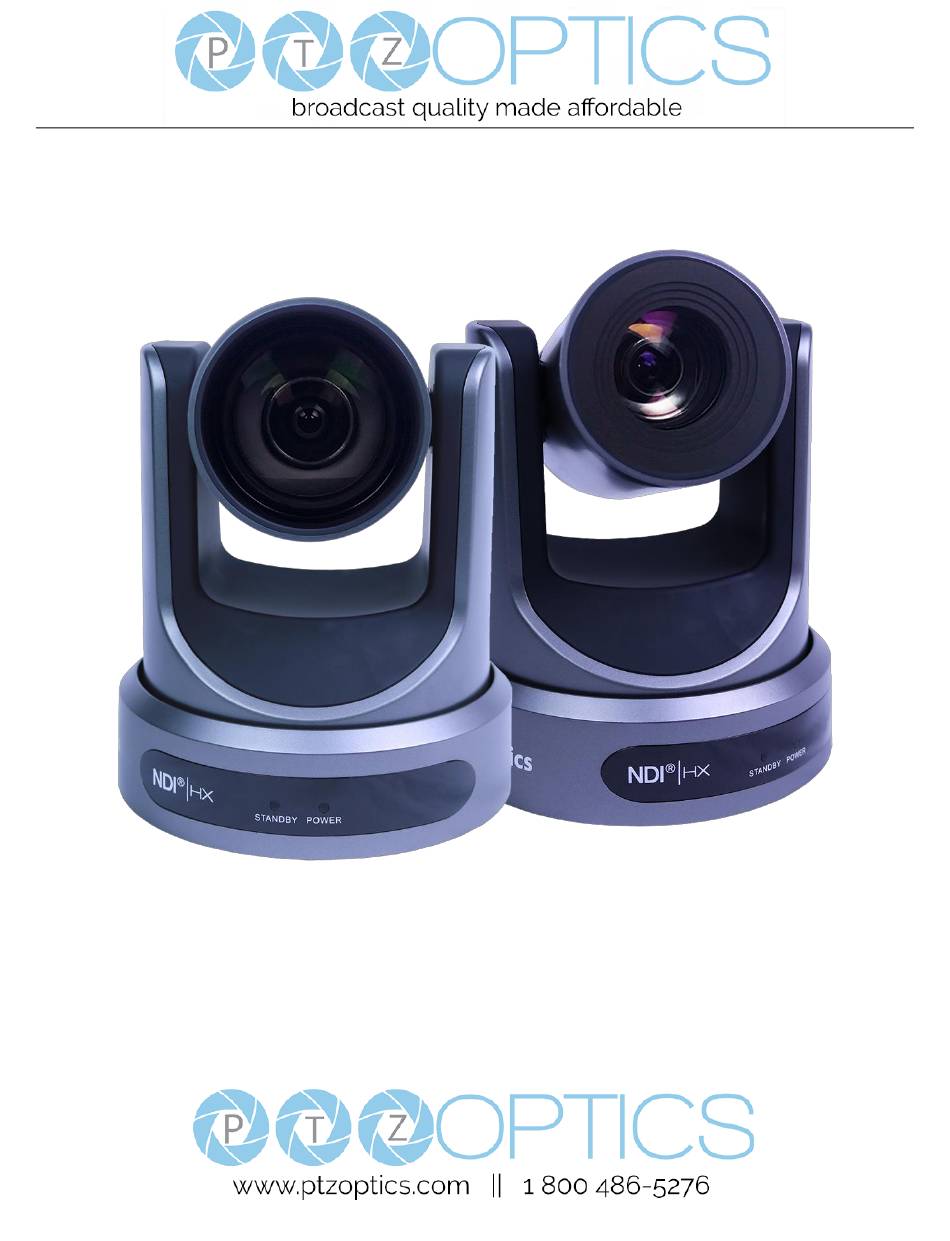

PTZOptics 12x NDI®|HX
User Manual
Model Nos: PT12X-NDI-GY & PT12X-NDI-WH
V1.2
(English)
Please check PTZOPTICS.com for
the most up to date version of this document
Rev 1.2 10/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT12X-NDI-GY and is the answer not in the manual?

Questions and answers

Related Manuals for PTZ Optics PT12X-NDI-GY

Summary of Contents for PTZ Optics PT12X-NDI-GY

  • Page 1 PTZOptics 12x NDI®|HX User Manual Model Nos: PT12X-NDI-GY & PT12X-NDI-WH V1.2 (English) Please check PTZOPTICS.com for the most up to date version of this document Rev 1.2 10/18...
  • Page 2 Preface Thank you for using the HD Professional Video Conferencing Camera. This manual introduces the function, installation and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product can only be used in the specified conditions in order to avoid any damage to the camera: •...

  • Page 3: Table Of Contents

    Table of Contents Supplied Accessories ··································································································· 1 Notes ····················································································································· 1 Quick Start ··············································································································· 2 Features ·················································································································· 4 Product Specifications ································································································· 5 Main Unit ················································································································ 7 IR Remote Controller ·································································································· 8 Using IR Remote Controller ························································································ 10 Dimensional Drawings ······························································································· 13 RS-232 Interface ······································································································...

  • Page 4: Supplied Accessories

    Supplied Accessories When you unpack your camera, check that all the supplied accessories are included: ⚫ Camera ........1 ⚫ AC Power Adaptor ....1 ⚫ Power Cord ......1 ⚫ RS232 Cable ......1 ⚫ IR Remote Controller ... 1 ⚫...

  • Page 5: Quick Start

    Quick Start Step 1. Please check that all connections are correct before powering on the camera. Page 2 of 53 Rev 1.2 10/18...
  • Page 6 Step 2. Set the system select switch for your desired video output resolution and frame rate. For many applications, setting 0 (1080p-60) will provide the best overall performance. For highest possible resolution, use setting 0 (1080p-60) or 6 (1080p-30), however your actual realized frame rate may be limited to a lower value than 60 fps by your software, hardware, and/or network connection.

  • Page 7: Features

    Features 1. Supports simultaneous NDI® | HX, 3G-SDI, HDMI and IP network streaming for up to 1080P@60. 2. Supports non-simultaneous CVBS (composite video) output via RCA connector (480i or 576i). 3. Includes Panasonic's high quality, 1/2.7 inch, 2.07 million effective pixels, HD CMOS sensor, which can produce a maximum 1920 x 1080 image with a high quality, maximum output frame rate of 60 fps (frames per second).

  • Page 8: Product Specifications

    Product Specifications Model PT12X-NDI-GY and PT12X-NDI-WH Type PTZOptics NDI® | HX HD 1080p Color Video Camera Camera HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p30, Video System 720p25, 720p/120, 640x480p/240 SD: NTSC, PAL Sensor 1/2.7", CMOS, Effective Pixel: 2.07M...
  • Page 9 IPC Features 32Kbps ~ 20480Kbps Bit Rate Variable rate, fixed rate Bit Rate Type Frame Rate 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps, 720p120: 120fps, 640x480p240: 240fps Audio Standard 96K, 128K, 256K Audio Rate TCP/IP, HTTP, RTSP, RTMP, Multicast, DHCP, ONVIF etc Support Protocols Input/Output Interface 1 x HDMI: Version 1.3...

  • Page 10: Main Unit

    Main Unit 1. Audio LINE IN Interface (NDI®|HX, HDMI, IP) 7. Network (NDI®|HX, IP streaming, and control) 2. CVBS (composite video SD) Interface 8. HDMI (Digital Video Output) 3. System select dial (resolution) 9. 3G-SDI (Serial Digital Video Output) 4. RS485 jack 10.

  • Page 11: Ir Remote Controller

    IR Remote Controller 1. Standby Button Press this button to enter standby mode. Press it again to enter normal mode. NOTE: Power consumption in standby mode is approximately half of the normal mode. 2. Position Buttons To set preset or call preset. 3.
  • Page 12 12. Multiple Function Buttons Function 1. Set camera IR address Press 3 keys contiguously can set camera IR address as follow: [*] + [#] + [F1]: Address 1 [*] + [#] + [F2]: Address 2 [*] + [#] + [F3]: Address 3 [*] + [#] + [F4]: Address 4 Function 2.

  • Page 13: Using Ir Remote Controller

    Using IR Remote Controller When the camera is operational, you can use the remote 2. Zoom Control controller to perform panning, tilting, zooming and focusing, as well as store and call back preset positions. Button Instructions: 1. In these instructions, ‘press the button’ means to press and release.
  • Page 14 4. BACKLIGHT. L/R SET and P/T RST Controls 6. Presets - Setting and Clearing Reverse Pan controls direction: Press and hold [L/R SET] button while pressing [1] aka [STD] button for normal pan controls. Press and hold [L/R SET] button while pressing [2] aka [REV] button for reversed pan controls.
  • Page 15 7. Recalling Presets 9. Camera IR Address Set Press 3 buttons in the sequence shown below to set/change the camera’s IR address. This allows up to 4 cameras to be controlled from the same IR remote control. Be sure that only one camera is picking up the IR signal when you perform this function.

  • Page 16: Dimensional Drawings

    Dimensional Drawings (mm) Page 13 of 53 Rev 1.2 10/18...

  • Page 17: Rs-232 Interface

    RS-232 Interface Camera PC/Controller DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI For Control Daisy Chain Camera Camera Mini DIN Function 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND...
  • Page 18 Serial Communication Control In default working mode, the camera is able to connect to a VISCA controller with an RS232C serial interface. ➢ RS232 Communication Control The camera can be controlled via RS232. The parameters of RS232C are as follows: Baud rate: 2400, 4800, 9600 or 38400 bps.

  • Page 19: Visca Commands

    VISCA Command List Part 1: Camera-Issued Messages ACK/Completion Message Function Command Command Packet Comments z0 4y FF Returned when the command is accepted. ACK/Completion (y: Socket No.) Messages z0 5y FF Completion Returned when the command has been executed. (y: Socket No.) z = Camera Address + 8 Error Messages Function...
  • Page 20 Part 2: Camera Control Commands Command Function Command Packet Comments AddressSet Broadcast 88 30 01 FF Address setting IF_Clear Broadcast 88 01 00 01 FF I/F Clear 8x 01 04 00 02 FF CAM_Power Power ON/OFF 8x 01 04 00 03 FF Stop 8x 01 04 07 00 FF Tele(Standard)
  • Page 21 Full Auto 8x 01 04 39 00 FF Automatic Exposure mode Manual 8x 01 04 39 03 FF Manual Control mode CAM_AE Shutter priority 8x 01 04 39 0A FF Shutter Priority Automatic Exposure mode Iris priority 8x 01 04 39 0B FF Iris Priority Automatic Exposure mode Bright 8x 01 04 39 0D FF...
  • Page 22 Reset 8x 01 04 02 00 FF 8x 01 04 02 02 FF Aperture Control CAM_Aperture(sharp ness) Down 8x 01 04 02 03 FF Direct 8x 01 04 42 00 00 0p 0q FF pq: Aperture Gain 8x 01 04 63 00 FF CAM_PictureEffect Picture Effect Setting B&W...
  • Page 23 8x 01 04 58 03 FF CAM_SettingReset Reset 8x 01 04 A0 10 FF Reset Factory Setting CAM_Brightness Direct 8x 01 04 A1 00 00 0p 0q FF pq: Brightness Position CAM_Contrast Direct 8x 01 04 A2 00 00 0p 0q FF pq: Contrast Position 8x 01 04 A4 00 FF Flip-H...
  • Page 24 Part 3: Query Commands Inquiry Command List Command Command packed Inquiry Packet Comments y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off(Standby) y0 50 04 FF Internal power circuit error CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position CAM_FocusAFMode...
  • Page 25 CAM_ApertureModeI 8x 09 04 05 FF y0 50 03 FF Manual Sharpness nq(Sharpness) CAM_ApertureInq(Sh 8x 09 04 42 FF y0 50 00 00 0p 0q FF pq: Aperture Gain arpness) CAM_PictureEffectM y0 50 02 FF 8x 09 04 63 FF odeInq y0 50 04 FF B&W...
  • Page 26 y0 50 0E FF y0 50 02 FF IR_Receive 8x 09 06 08 FF y0 50 03 FF ww: Pan Max Speed Pan-tiltMaxSpeedInq 8x 09 06 11 FF y0 50 ww zz FF zz: Tilt Max Speed y0 50 0w 0w 0w 0w wwww: Pan Position Pan-tiltPosInq 8x 09 06 12 FF...
  • Page 27 Block Inquiry Command List Command Command packed Inquiry Packet Comments uuuu: Zoom Position y0 50 0u 0u 0u 0u 00 00 0v 0v CAM_LensBlockInq 8x 09 7E 7E 00 FF vvvv: Focus Position 0v 0v 00 0w 00 FF w.bit0: Focus Mode 1: Auto 0: Manual pp: R_Gain qq: B_Gain r: WB Mode...

  • Page 28: Visca Over Ip Commands

    Part 4: VISCA over IP Command List Command Function Command Packet Comments Stop 81 01 04 07 00 FF Tele (Standard) 81 01 04 07 02 FF Wide (Standard) 81 01 04 07 03 FF CAM_Zoom p = (low) – 7 (high) Tele (Variable) 81 01 04 07 2p FF Wide (Variable)
  • Page 29 81 01 04 0B 02 FF Down 81 01 04 0B 03 FF Direct 81 01 04 4B 00 00 p q FF pq: Iris Position Reset 81 01 04 0A 00 FF Default Shutter Setting 81 01 04 0A 02 FF CAM_Shutter Down 81 01 04 0A 03 FF...
  • Page 30 Flip-V 81 01 04 A4 02 FF Flip-HV 81 01 04 A4 03 FF CAM_SettingSave Save 81 01 04 A5 10 FF Save Current Setting High 81 01 04 A9 00 FF High CAM_AWBSensitivity Normal 81 01 04 A9 01 FF Normal 81 01 04 A9 02 FF 81 01 04 AA 00 FF...
  • Page 31 Part 5: VISCA over IP Query Commands Command Command Package Return Package Note CAM_ZoomPosInq 81 09 04 47 FF 90 50 p q r s FF pqrs: Zoom Position 90 50 02 FF Auto Focus CAM_FocusAFModeInq 81 09 04 38 FF 90 50 03 FF Manual Focus CAM_FocusPosInq...
  • Page 32 90 50 02 FF Auto Noise 2D CAM_Noise2DModeInq 81 09 04 50 FF 90 50 03 FF Manual Noise 2D CAM_Noise2DLevel 81 09 04 53 FF 90 50 0p FF Noise Reduction (2D) p: 0 to 5 CAM_Noise3DLevel 81 09 04 54 FF 90 50 0p FF Noise Reduction (3D) p: 0 to 8 CAM_FlickerModeInq...
  • Page 33 90 50 01 FF Center 90 50 02 FF Bottom p: Color Hue setting 0h (−14 dgrees) to Eh CAM_ColorHueInq 81 09 04 4F FF 90 50 00 00 00 0p FF (+14 degrees) 90 50 00 FF High CAM_AWBSensitivityInq 81 09 04 A9 FF 90 50 01 FF Normal...
  • Page 34 Part 6: Pelco-D Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address...
  • Page 35 Part 7: Pelco-P Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF Right...

  • Page 36: Menu Settings

    Menu Settings 1. MENU EXPOSURE Press [MENU] button to display the main menu on the Mode Auto normal screen, using arrow button to move the cursor to ExpCompMode the item to be set. Press the [HOME] button to enter the Backlight corresponding sub-menu.
  • Page 37 Shutt: Shutter value, optional items: 1/30, 1/60, 1/90, Saturation: optional items: 60% ~ 200%. 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, Hue: Chroma adjustment, optional items: 0 ~ 14. 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000 AWB Sens: The white balance sensitivity, optional items: (Effective only in Manual, SAE mode).
  • Page 38 5. P/T/Z NOISE REDUCTION NR2D-Level 3 Move the main menu cursor to [P/T/Z], and press [HOME] NR3D-Level 3 key enter the P/T/Z page, as shown in the following figure. P/T/Z SpeedByZoom AF-Zone Center Select Item AF-Sense High Change Value L/R Set [Menu] Back Display Info Image Freeze...
  • Page 39 8. COMMUNICATION SETUP 9. RESTORE DEFAULT Move the main menu cursor to [RESTORE DEFAULT], Move the main menu cursor to and press [HOME] key enter the restore default page, as [COMMUNICATION SETUP], and press [HOME] key shown in the following figure. enter the communication setup page, as shown in the following figure.

  • Page 40: Network Connection

    Network Connection 1. Operating Environment Operating System: Windows 2000/2003/XP/Vista/7/8.1/10 Network Protocol: TCP/IP Client PC: P4/128M RAM/40GHD/ support for scaled graphics card, support for DirectX8.0 or more advanced version. 2. Equipment Installation 1) Connect camera to your network via a CAT5 or CAT6 patch cable or directly to your PC via a CAT5 or CAT6 crossover cable.
  • Page 41 Setting up a Network Video Stream with the PTZOptics camera (Also see information on “Camera Web Interface” in the following section) 1. The first thing you are going to want to do to get your camera up and streaming on your network is to connect your camera to power, to an active network port on your network and finally to power the camera on.
  • Page 42 (Note that in more complex network environments you may have to request a “Static IP” from the IT department to prevent any possible network complications in addition to the “Static IP” you will likely need an appropriate Network Mask, Default Gateway and First DNS) 6.
  • Page 43 10. You should now be able to receive an RTSP stream from your camera. The following video, https://www.youtube.com/watch?v=hmqI0hjT0UI&feature=youtu.be, shows how to setup an RTSP stream in Wirecast as an example. You’ll see how to use ONVIF to easily set up two (2) PTZOptics cameras with Wirecast, note that the ONVIF feature must be enabled in the “Network”...
  • Page 44 EXTRAS Discovering your Network IP range. NOTE: Changing your IP address without talking to your network admin could lead to conflicts with your network. If you change your address to one that is already in use it will cause communication problems. If you need to discover the IP address range of your network you can do so by using command prompt for Windows or Terminal for Macs.
  • Page 45 Camera Web Interface Homepage introduction 1.1 Home Page All pages include two (2) areas: On the left is the menu and camera control On the right is real time monitoring - displaying a live video image and the available settings 1.2 Live Video viewing window Click “Live”...
  • Page 46 1.3 PTZ Control 1) Pan and Tilt control: Up, Down, Left and Right arrows and the home button allow you to manually drive the camera to the desired position. 2) Zoom: Zoom In and Zoom Out buttons allow for wide or narrow (tele) view of the space.
  • Page 47 1.4 Language selection Click either “Russian”, “Chinese” or “English” to change the language of the menu. Media 1.1 Video Setup Click "Video". The streaming parameters may now be set in the right side area. The camera can send two (2) simultaneous streams.
  • Page 48 1) 720p120 Turn On/Off 720p120 function. 2) Video Format Support 50HZ (PAL) and 60HZ (NTSC), and Dial Priority three formats. 3) Encode Level Support baseline, mainprofile, highprofile and svc-t four levels. 4) NDI Mode Support Off, High, Medium and Low four mode. 5) Encode Protocol Support H.264, H.265 and MJPEG three formats.
  • Page 49 13) Split Mode Select split mode, optional items: Fixed blocks, Fixed bytes. 14) Slice Size Set the size of slice. 1.2 Image Setup(Note that changes here will impact your OSD settings) Click “Image”. The image parameters may now be set in the right-side area. Brightness Image bright 0~14, slider control, on the right shows the corresponding numerical.
  • Page 50 1.3 Audio Setup Click “Audio”. The audio parameters may now be set in the right-side area. Audio Switch Turn On/Off audio switch. Audio Type Audio type AAC. Sample Rate Sample rate 44.1 K and 48 K selectable. Bit Rate Bit rate 96k, 128k, 256k selectable. Input Type Input type line in.
  • Page 51 1.4 System Settings Click “System”. The system parameters may now be set in the right-side area. Work Mode Work Mode is RTSP. Reboot Click the “Reboot” button, system restart. Username and password The user can modify the password (letters and numbers only). 1.5 Network Settings Click “Network”.
  • Page 52 Lan Settings Default the IP address is 192.168.100.88. The MAC address can not be modified. Port Settings While the IP address identifies the device, the camera uses multiple ports for different functions. HTTP Port: This is the port for the web application (the default http port: 80) RTSP Port: The camera supports the RTSP streaming protocol.
  • Page 53 4) RTMP Settings Setting the camera stream, can set up two stream, in the two stream selection control code stream of “On”, “Off”, “Video”, “Audio”, etc. 5) RTSP Settings Turn On/Off RTSP auth. 6) ONVIF Settings Turn On/Off ONVIF and ONVIF auth. 7) Multicast Settings Turn On/Off multicast.

  • Page 54: Ndi® | Hx Setup Guide

    NDI® | HX Upgrade Guide This process will walk you through upgrading your non-NDI®|HX PTZOptics camera to an NDI®|HX source. Please read all instructions prior to attempting your NDI® | HX camera upgrade. If you have purchased an NDI® model, not an NDI-Ready model, you will not be required to license the camera as it is already licensed. Three Easy Steps: 1.

  • Page 55: Maintenance And Troubleshooting

    Maintenance and Troubleshooting Camera Maintenance ⚫ If the camera will not be used for a long time, please turn off the power switch. ⚫ Use a soft cloth or lotion-free tissue to clean the camera body. ⚫ Use a soft dry lint-free cloth to clean the lens. If the camera is very dirty, clean it with a diluted neutral detergent. Do not use any type of solvent or harsh detergent, which may damage the surface.
  • Page 56 Control ⚫ IR remote controller does not control the camera Does one of the 4 “Camera Select” buttons (top row of remote) light up when you press any button on the remote? If not, change the batteries in the remote. Are the camera and remote set to the same IR address? You can use press [*] + [#] + [1] (3 buttons in sequence) on the remote to set the camera to address.
