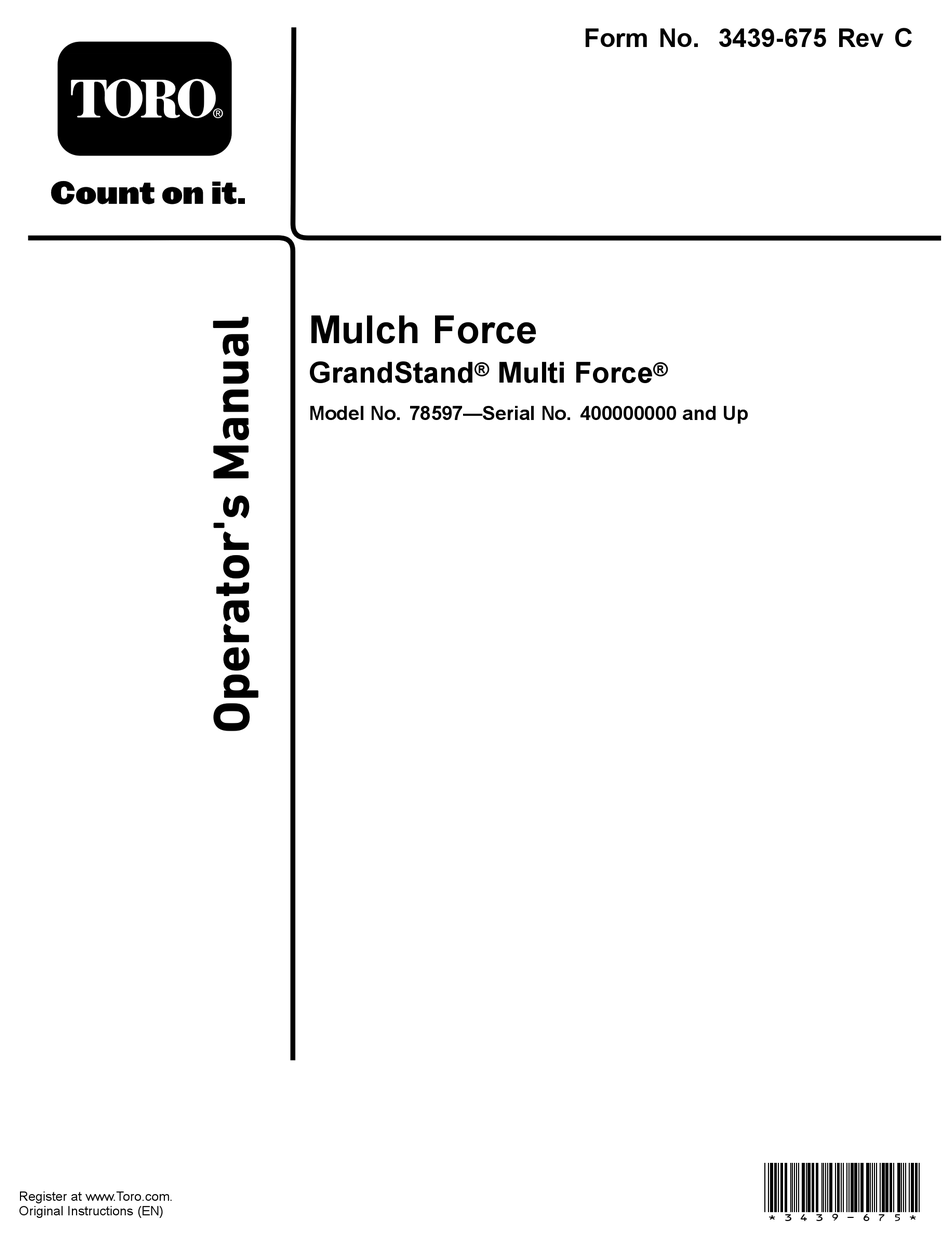

- Page 1 Form No. 3439-675 Rev C Mulch Force GrandStand ® Multi Force ® Model No. 78597—Serial No. 400000000 and Up *3439-675* Register at www.Toro.com. Original Instructions (EN)
-
Page 2: Table Of Contents
Whenever you need service, genuine Toro parts, or Safety ............... 3 additional information, contact an Authorized Service General Safety ........... 3 Dealer or Toro Customer Service and have the model Safety and Instructional Decals ......3 and serial numbers of your product ready. Figure 1 Setup ................ -
Page 3: Safety
Safety and Instructional Safety Decals General Safety Safety decals and instructions are easily visible to the operator and are Always follow all safety instructions to avoid serious located near any area of potential personal injury. danger. Replace any decal that is •... -
Page 4: Setup
Setup Use 4 carriage bolts and 4 nuts (3/8 inch) to secure the lower mount bracket to the lock bracket Install the following (sold separately) on your machine before installing the attachment: • Low Flow Hydraulic Kit (required) • Pneumatic casters (recommended) Preparing the Machine Park the machine on a level surface. - Page 5 Loosen or disconnect the hydraulic fittings from Use a hitch pin and a cotter pin to install the the hoses. T-bar into the A-frame receiver. g358469 Figure 6 1. Quick couplers 2. Hose fittings g321098 Figure 8 Use the fasteners to secure the bracket under the A-frame.
-
Page 6: Operation
Operation Use the large pin and a cotter pin to secure the bucket to the T-bar. Operation Safety • Stop the machine on level ground, lower the bucket, shut off the engine, and remove the key before leaving the operator's position for any reason. -
Page 7: Lowering And Raising The Bucket
Lowering and Raising the Opening the Bucket Door Bucket Remove the lynch pin on each side of the door and store it using the holes on the rail. Rotate the latch up. g346830 Figure 14 1. Holes 2. Lynch pin g321388 Figure 12 Slide the door up and lower it. -
Page 8: Transporting The Machine
Transporting the Machine Use a heavy-duty trailer or truck to transport the machine. Use a full-width ramp. Ensure that the trailer or truck has all the necessary brakes, lighting, and marking as required by law. Please carefully read all the safety instructions. Knowing this information could help you or bystanders avoid injury. -
Page 9: Removing The Bucket
Remove the cotter pin and large pin. g032703 Figure 17 1. Tie-down loops g321100 Figure 19 Removing the Bucket 1. Large pin 2. Cotter pin Note: Removing this attachment requires 2 people. With the assistance of another person, lift the Empty the bucket. - Page 10 Remove the fasteners from the disconnect-fitting Install the fittings to the hoses, if removed; bracket. ensure that the hoses are not under tension. Tighten the fittings to 18 to 19 N∙m (13 to 14 ft-lb). Ensure that the quick couplers are tightened 2 to 3 turns past finger-tight.
-
Page 11: Maintenance
Maintenance CAUTION If you leave the key in the switch, someone could accidently start the engine and seriously injure you or other bystanders. Remove the key from the switch before you perform any maintenance. Checking the Hydraulic Removing Debris from the Hoses Machine Service Interval: Every 100 hours... - Page 12 While the exposure from Toro products may be negligible or well within the “no significant risk” range, out of an abundance of caution, Toro has elected to provide the Prop 65 warnings. Moreover, if Toro does not provide these warnings, it could be sued by the State of California or by private parties seeking to enforce Prop 65 and subject to substantial penalties.
