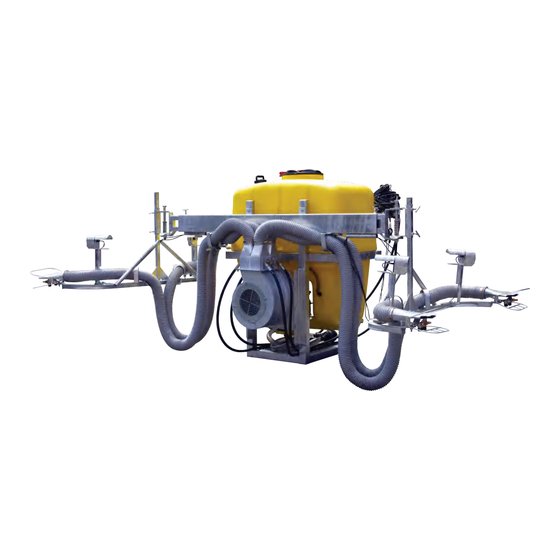

ST ST101-GEO-i Operation And Maintenance Instructions
  1. Manuals
  2. Brands
  3. ST Manuals
  4. Paint Sprayer
  5. ST101-GEO-i
  6. Operation and maintenance instructions

ST ST101-GEO-i Operation And Maintenance Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ST101-GEO-i
S P R A Y E R S
OPERATION AND
MAINTENANCE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST101-GEO-i and is the answer not in the manual?

Questions and answers

Related Manuals for ST ST101-GEO-i

Summary of Contents for ST ST101-GEO-i

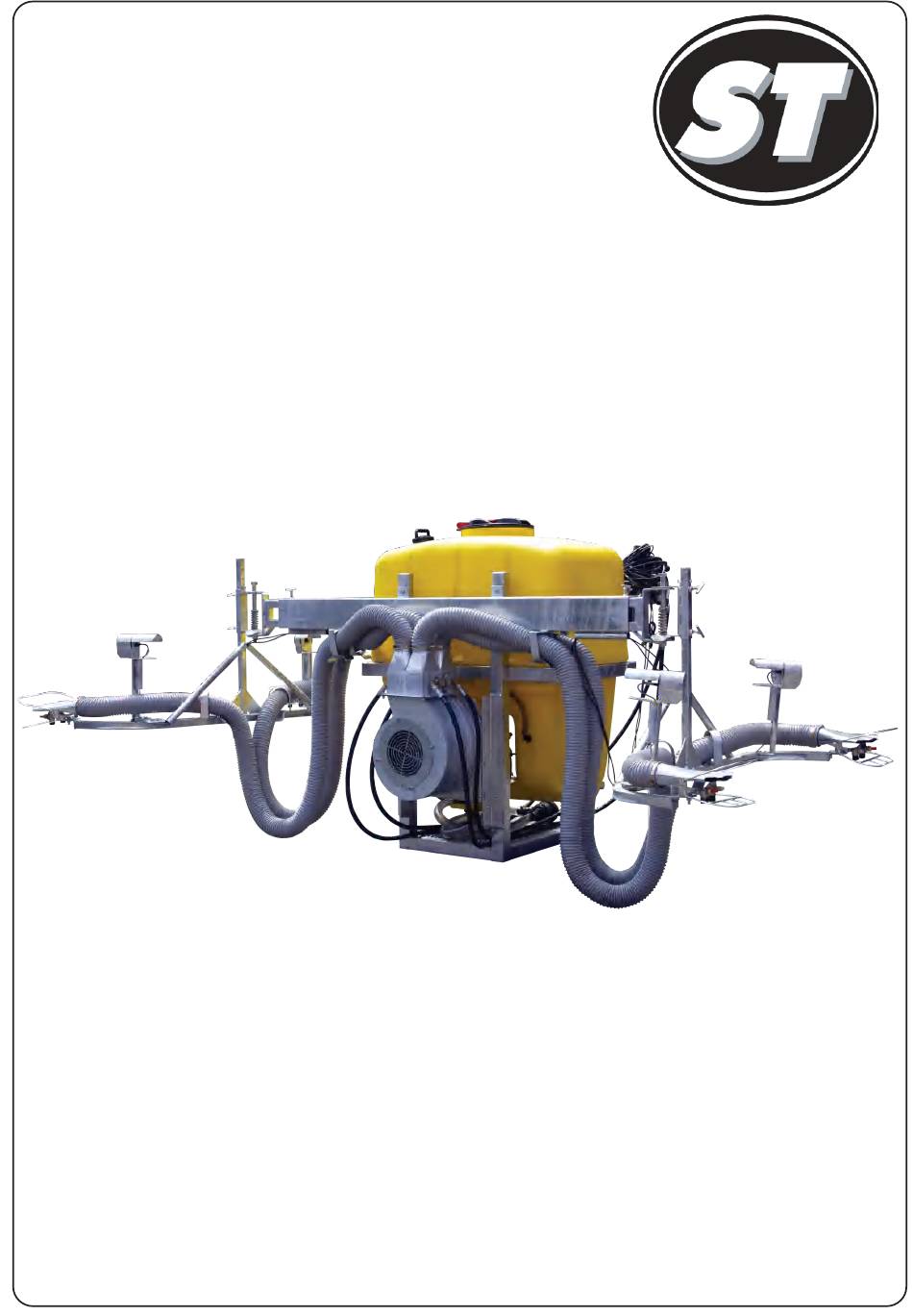

  • Page 1 ST101-GEO-i S P R A Y E R S OPERATION AND MAINTENANCE INSTRUCTIONS...

  • Page 2: Maintenance Instructions

    MOUNTED SPRAYER ST101-GEO-i SPRAYERS MODEL : ............. SERIAL NO : ..........OPERATION AND MAINTENANCE INSTRUCTIONS...
  • Page 3 - Tractor Mounted ST101-GEO-i 400 / 600 LITER INTRODUCTION Introduction RB SPRAY TECH SDN BHD is a Malaysian owned company specializing in the supply of crop protection equipments to primary producers. A leader in the design of agricultural sprayers, the company was established in 1996 and has grown to become the largest manufacturer and supplier of crop protection equipments in Malaysia.
  • Page 4 - Tractor Mounted ST101-GEO-i 400 / 600 LITER UPON GOOD RECEPTION On the reception of the machine, make sure that this product is in complete and good condition at every part. If there are any damaged parts found, kindly inform about the issue to the machine distributor with timely manner, or directly contact RB Spray Tech Sdn.

  • Page 5: Using The Manual

    - Tractor Mounted ST101-GEO-i 400 / 600 LITER USING THE MANUAL Read every part of this manual, paying attention to the WARNING and DANGER indications both on the text and on the machine or on components. All operations suggested by the manual will have to be followed with the utmost care and only after having understood the negative consequences of improper usage.
  • Page 6 - Tractor Mounted ST101-GEO-i 400 / 600 LITER ABBREVIATION cm ..................................centimetres g ..................................... grams h ......................................hour ha....................................hectare ha/h ................................hectare per hour l ......................................litres l/h ................................... litres per hour l/min ................................. litres per minute kg ....................................kilogram kg/cm2 ..................

  • Page 7: Machine Identification

    - Tractor Mounted ST101-GEO-i 400 / 600 LITER MACHINE IDENTIFICATION SERIAL NO : MODEL DATE TECHNICAL ASSISTANCE RB Spraytech is at complete disposal of customers for any type of intervention. The names and addresses of its service network, both in...
  • Page 8 - Tractor Mounted ST101-GEO-i 400 / 600 LITER It is necessary to scrupulously abide by the following general norms: — Check that the power of the tractor is compatible with the sprayer to be used; — Verify that the maximum weight admitted on the three-point hoister of the tractor is compatible with the weights of the sprayer to be used;...

  • Page 9: Safety Systems

    - Tractor Mounted ST101-GEO-i 400 / 600 LITER SAFETY SYSTEMS All machine moving parts are suitably protected by guards and highlighted through the use of warning decals. - It is forbidden to use the machine with these guards removed. - Before removing the protection, stop the tractor’s engine and remove the key from the control panel.
  • Page 10 - Tractor Mounted ST101-GEO-i 400 / 600 LITER To use pesticides (purchase, transport, loading, treatment planning, mixture preparation, eld transfer, treatment performance, ending treatment liquid waste management, equipment rinsing and waste disposal) you must follow the country rules. Absolutely adhere the rules on the label of the product used referring to the dose per hectare and to the compatibility of other products.

  • Page 11: Personal Protective Equipment (Ppe)

    - Tractor Mounted ST101-GEO-i 400 / 600 LITER The disposal of special wastes is regulated by speci c norms. In order to perform this operation it is necessary to obtain the relevant information from the Local O ces speci cally appointed to rule on this subject.
  • Page 12 - Tractor Mounted ST101-GEO-i 400 / 600 LITER TANK Tank main ller with collapsible lid, for the lling with spraying products. Transparent level indicator external pipe with graduated scale. FRAME This frame is custom made, which uses mild steel as the core material. Able to withstand high pressure for longetivity in usage.

  • Page 13: Technical Data

    - Tractor Mounted ST101-GEO-i 400 / 600 LITER TECHNICAL DATA Sprayers dimensions and weight On the identi cation plate, the full-load weight of the machine is indicated, measured WITHOUT the distribution device, and WITHOUT the accessories possibly installed. In order to calculate the weight on the hoister in operative conditions (at full load), add to...
  • Page 14 - Tractor Mounted ST101-GEO-i 400 / 600 LITER COUPLING MODALITIES Check that the tractor’s ‘permissible carried weight’ and the ‘rear overhang allowed’ are compatible with the weight and dimensions of the fully loaded sprayer and complete with equipment mounted for the treatment.
  • Page 15 - Tractor Mounted ST101-GEO-i 400 / 600 LITER MOUNTING OF CARDAN TRANSMISSION SHAFT The mounting, disassembling or possible other interventions on the transmission shaft must be carried out with the engine switched off and with the starter key removed from the tractor’s control panel.

  • Page 16: Distribution Devices

    - Tractor Mounted ST101-GEO-i 400 / 600 LITER DISTRIBUTION DEVICES ST101-GEO-i sprayers can be spraying alternately when the object or subject is detected by the sensor. ST101-GEO-i comes with standard in eld sucstion system and quality quick release drive shaft.
  • Page 17 - Tractor Mounted ST101-GEO-i 400 / 600 LITER FILLING AND MIXING THE INLET OF THE FILLER PIPING MUST NEVER COME INTO CONTACT WITH THE ANTIPARASITIC MIXTURE: IT MUST ALWAYS BE KEPT AT A SAFE HEIGHT ABOVE THE TANK FILLER AND MUST BE EQUIPPED WITH A NON-RETURN VALVE.
  • Page 18 - Tractor Mounted ST101-GEO-i 400 / 600 LITER Before using the atomizer fill the circuit-washer tank (if provided) and the hand-washer tank with clean water. PRELIMINARY OPERATION TO TREATMENT • The operator must: a. Be aware of the meteorological conditions forecast for all the time necessary for carrying out the treatment.
  • Page 19 - Tractor Mounted ST101-GEO-i 400 / 600 LITER PREPARATORY OPERATION TO TREATMENT THE FILLING MUST BE CARRIED OUT WITH THE MACHINE ON A FLAT SURFACE. BEFORE THE OPERATION, IN THE ALLOCATED AREA, THE DOSES OR MIXTURES TO BE POURED IN THE TANK MUST BE MADE READY.
  • Page 20 - Tractor Mounted ST101-GEO-i 400 / 600 LITER THE TREATMENT IT IS ADVISABLE TO BEGIN TREATMENT AT THE HEADLANDS. WHEN THE TREATMENT IS OVER, OR IF THE SAME HAS TO BE TEMPORARILY INTERRUPTED, ALWAYS LET THE FAN STILL OPERATE FOR APPROXIMATELY 30...
  • Page 21 - Tractor Mounted ST101-GEO-i 400 / 600 LITER END OF TREATMENT - STORAGE DAILY The operator must: If the machine is equipped with unit-washing tank: a. Carry out the hydraulic circuit washing process spraying on a piece of ground treated yet. Attention: The sprayer to be sprayed around 5 sec..

  • Page 22: Tank Draining

    - Tractor Mounted ST101-GEO-i 400 / 600 LITER END OF SEASONAL CYCLE • The operator must: a. Take the utmost care in carrying out the operations envisaged at the end of the daily treatments: the cleaning of the main tank must be done at least twice. Check that no product residues are left in any part the tank.

  • Page 23: Lubrication And Maintenance

    - Tractor Mounted ST101-GEO-i 400 / 600 LITER LUBRICATION AND MAINTENANCE Daily Maintenance Never leave chemicals in the tank that may settle to Before carrying out any maintenance, please switch the bottom, harden and break into lumps as this off the tractor and disconnect the drive shaft.

  • Page 24: Tank Installation

    - Tractor Mounted ST101-GEO-i 400 / 600 LITER TANK REMOVAL OF REPLACEMENT Diagram 1 Diagram 1 In order for the steps to be identified correctly please refer to the Diagram 1. TANK INSTALLATION 1. Before beginning to insert the tank, unscrew the APS 71 pump fixed protection away from the pump.

  • Page 25: Fault Findings

    - Tractor Mounted ST101-GEO-i 400 / 600 LITER FAULT FINDINGS A. FAULT By utilising the ller piping the pump doesn’t operate (suction). It is necessary to disengage the drive outlet (PTO) and wait for it to stop rotating before repeating the filling operation.
  • Page 26 - Tractor Mounted ST101-GEO-i 400 / 600 LITER FAULT FINDINGS E. FAULT Anomalous and continuous noisiness together with vibrations of the fan group. 1. CAUSE : Breaking of the fan shaft bearings. REMEDY : Address to RB Spraytech Sdn. Bhd. point of ‘Sale and Service’ .
  • Page 27 - Tractor Mounted ST101-GEO-i 400 / 600 LITER LEVEL GAUGE CLEANING 1. With a suitable pliers release the clamp 1 fixing transparent tube of the level gauge. 2. Take off and remove the transparent tube 2 . 3. Remove the red plastic ball 3 .
  • Page 28 - Tractor Mounted ST101-GEO-i 400 / 600 LITER ST101-GEO-i SPRAYERS ASSEMBLY...
  • Page 29 SPARE PARTS LIST - Tractor Mounted ST101-GEO-i 400 / 600 LITER ST101-GEO-i SPRAYERS SPARE PART LIST ITEM NO. PART NUMBER DESCRIPTION ITEM NO. PART NUMBER DESCRIPTION PTO CARDAN LENGTH C-C 850MM STLF-045-00137 TANK LID STAF-356-10040 O-RING FOR TANK LID STCP-044-10002 PRESSURE GAUGE STAF-350-10440.020...

  • Page 30: Solenoid Control Valve

    SPARE PARTS - Tractor Mounted ST101-GEO-i 400 / 600 LITER SOLENOID CONTROL VALVE...
  • Page 31 SPARE PARTS - Tractor Mounted ST101-GEO-i 400 / 600 LITER SOLENOID CONTROL VALVE PARTS LIST REFERENCE DESCRIPTION 01.01.02 INOX SEAT 01.01.03 DIAPHRAGM TIGHTEN. S/STEEL BUSHING 01.02 NUT M 6X10X5 UNI5588 * INOX 01.03 OR 1,78X3,69 2015 VITON 01.04 DIAPHRAM VAL.KIT SOLEN.GROUP 481 V 01.05...
  • Page 32 - Tractor Mounted ST101-GEO-i 400 / 600 LITER APS SERIES - APS 51 - APS 61 - APS 71 - Diaphragm Pump 550 RPM...
  • Page 33 SPARE PARTS LIST APS 51, APS 61, APS71 - Diaphragm Pump 550 RPM (REV03) KIT OPTIONAL ALTERNATE N0 DESCRIPTION NOTE MODEL ALTERNATE N0 DESCRIPTION NOTE MODEL STCP-049-10007 MANIFOLD FLANGE STCP-041-10062 SHAFT 1"3/8 STCP-049-10008 SCREW M8x30 STCP-041-10064 SCREW M10x18 STCP-043-10032 LEFT TAP G3/8"-1/2"...
  • Page 34 - Tractor Mounted ST101-GEO-i 400 / 600 LITER MA86/31 - Diaphragm & Parts List Gearbox 24 25 TRACKING NUMBER DESCRIPTION 0MA86001.6 TAPPO VAL.1/2 BREATHER TAPPO LIV.1/2 LEVEL PLUG TAPPO 1/4 FILLING PLUG TAPPO LIV.1/4 LEVEL PLUG TE6X20ZINC SCREW SEGER E16 SEEGER RING TAPPO ESAG.1/2...

  • Page 35: Warranty

    - Tractor Mounted ST101-GEO-i 400 / 600 LITER WARRANTY RB SPRAY TECH welcomes any warranty repair Warranty Repair Site and apologises for any inconvenience caused. See The warranty provides for repairs to be carried out the next page for the statement of the warranty at the servicing dealer’s normal place of business.
  • Page 36 - Tractor Mounted ST101-GEO-i 400 / 600 LITER CERTIFICATE OF WARRANTY The warranty will not be considered valid if this coupon, with every part of it filled in, is not mailed to the following address: Head Office RB Spray Tech Sdn. Bhd. (627487-P),No.1, Jalan Ikan Mata Duyung,KS10, Kampung Nelayan, Telok Gong, 42000 Pelabuhan Klang,Selangor Darul Ehsan, Malaysia.,or sent...
