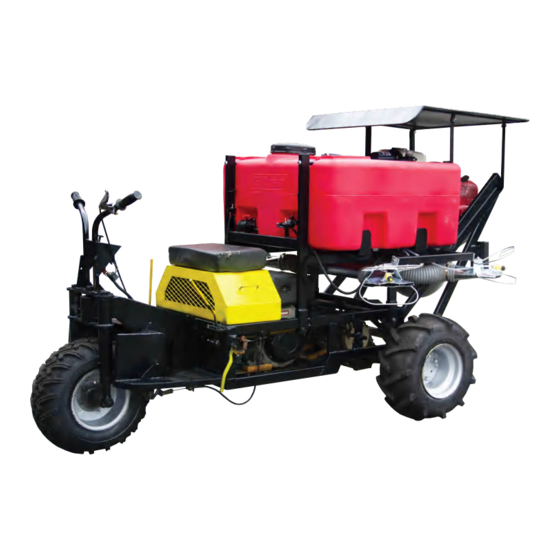

Badang sprayer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

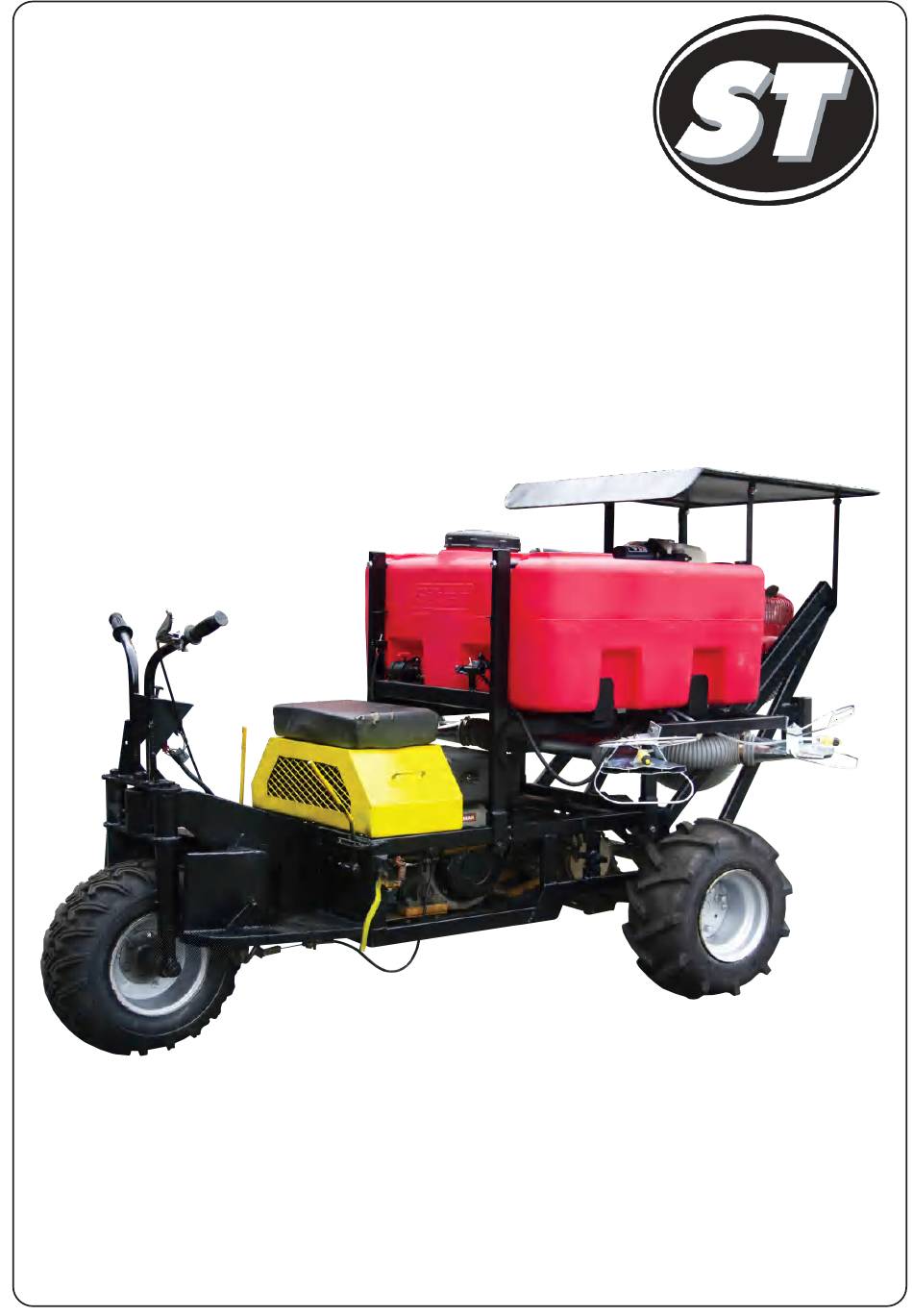

ST104-300L
OPERATION AND
MAINTENANCE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST104-300L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ST ST104-300L

Summary of Contents for ST ST104-300L

  • Page 1 ST104-300L OPERATION AND MAINTENANCE INSTRUCTIONS...

  • Page 2: Maintenance Instructions

    BADANG SPRAYER ST104-300L MODEL : ............. SERIAL NO : ..........OPERATION AND MAINTENANCE INSTRUCTIONS...
  • Page 3 - Mounted Sprayers ST104-300LITER INTRODUCTION Introduction RB SPRAY TECH SDN BHD is a Malaysian owned company specializing in the supply of crop protection equipments to primary producers. A leader in the design of agricultural sprayers, the company was established in 1996 and has grown to become the largest manufacturer and supplier of crop protection equipments in Malaysia.
  • Page 4 - Mounted Sprayers ST104-300LITER UPON GOOD RECEPTION On the reception of the machine, make sure that this product is in complete and good condition at every part. If there are any damaged parts found, kindly inform about the issue to the machine distributor with timely manner, or directly contact RB Spray Tech Sdn.

  • Page 5: Using The Manual

    - Mounted Sprayers ST104-300LITER USING THE MANUAL Read every part of this manual, paying attention to the WARNING and DANGER indications both on the text and on the machine or on components. All operations suggested by the manual will have to be followed with the utmost care and only after having understood the negative consequences of improper usage.
  • Page 6 - Mounted Sprayers ST104-300LITER ABBREVIATION cm ..................................centimetres g ..................................... grams h ......................................hour ha....................................hectare ha/h ................................hectare per hour l ......................................litres l/h ................................... litres per hour l/min ................................. litres per minute kg ....................................kilogram kg/cm2 ..................kilograms per square centimeter (atmosphere) k m...................................

  • Page 7: Machine Identification

    - Mounted Sprayers ST104-300LITER MACHINE IDENTIFICATION SERIAL NO : MODEL DATE TECHNICAL ASSISTANCE RB Spraytech is at complete disposal of customers for any type of intervention. The names and addresses of its service network, both in Malaysia and foreign countries, can be requested from: Head Office RB Spray Tech Sdn.
  • Page 8 - Mounted Sprayers ST104-300LITER It is necessary to scrupulously abide by the following general norms: — Check that the power of the tractor is compatible with the sprayer to be used; — Verify that the maximum weight admitted on the three-point hoister of the tractor is compatible with the weights of the sprayer to be used;...

  • Page 9: Safety Systems

    - Mounted Sprayers ST104-300LITER SAFETY SYSTEMS All machine moving parts are suitably protected by guards and highlighted through the use of warning decals. - It is forbidden to use the machine with these guards removed. - Before removing the protection, stop the tractor’s engine and remove the key from the control panel.
  • Page 10 - Mounted Sprayers ST104-300LITER To use pesticides (purchase, transport, loading, treatment planning, mixture preparation, eld transfer, treatment performance, ending treatment liquid waste management, equipment rinsing and waste disposal) you must follow the country rules. Absolutely adhere the rules on the label of the product used referring to the dose per hectare and to the compatibility of other products.

  • Page 11: Personal Protective Equipment (Ppe)

    - Mounted Sprayers ST104-300LITER The disposal of special wastes is regulated by speci c norms. In order to perform this operation it is necessary to obtain the relevant information from the Local O ces speci cally appointed to rule on this subject. The non compliance with these regulations can cause considerable damage to persons and animals as well as polluting the environment.
  • Page 12 - Mounted Sprayers ST104-300LITER TANK Tank main ller with collapsible lid, for the lling with spraying products. Transparent level indicator external pipe with graduated scale. FRAME This frame is custom made, which uses mild steel as the core material. Able to withstand high pressure for longetivity in usage.

  • Page 13: Technical Data

    - Mounted Sprayers ST104-300LITER TECHNICAL DATA Sprayers dimensions and weight On the identi cation plate, the full-load weight of the machine is indicated, measured WITHOUT the distribution device, and WITHOUT the accessories possibly installed. In order to calculate the weight on the hoister in operative conditions (at full load), add to the weight indicated on the identi cation plate, the weight of the installed accessories, the weight of the distribution device which is used.
  • Page 14 - Mounted Sprayers ST104-300LITER FILLING AND MIXING THE INLET OF THE FILLER PIPING MUST NEVER COME INTO CONTACT WITH THE ANTIPARASITIC MIXTURE: IT MUST ALWAYS BE KEPT AT A SAFE HEIGHT ABOVE THE TANK FILLER AND MUST BE EQUIPPED WITH A NON-RETURN VALVE. MAKE SURE TO WARE THE MOST SUITABLE PERSONAL PROTECTIVE EQUIPMENT (PPE) FOR SAFETY PURPOSES.
  • Page 15 - Mounted Sprayers ST104-300LITER PRELIMINARY OPERATION TO TREATMENT • The operator must: a. Be aware of the meteorological conditions forecast for all the time necessary for carrying out the treatment. b. Check that the product is available in a quantity su cient to complete the intervention. c.
  • Page 16 - Mounted Sprayers ST104-300LITER PREPARATORY OPERATION TO TREATMENT THE FILLING MUST BE CARRIED OUT WITH THE MACHINE ON A FLAT SURFACE. BEFORE THE OPERATION, IN THE ALLOCATED AREA, THE DOSES OR MIXTURES TO BE POURED IN THE TANK MUST BE MADE READY. Before starting the filling cycle, check: - THAT THE DELIVERY FILTER ARE CLEAN;...
  • Page 17 - Mounted Sprayers ST104-300LITER THE TREATMENT IT IS ADVISABLE TO BEGIN TREATMENT AT THE HEADLANDS. WHEN THE TREATMENT IS OVER, OR IF THE SAME HAS TO BE TEMPORARILY INTERRUPTED, ALWAYS LET THE FAN STILL OPERATE FOR APPROXIMATELY 30 SECONDS AFTER CUTTING-OUT THE POWER SUPPLY (EITHER MANUAL DISTRIBUTOR P10 OR ELECTRICAL DISTRIBUTOR E11), IN ORDER TO FULLY ELIMINATE THE PRODUCT MIXTURE FROM THE DISTRIBUTING DEVICES, SO PREVENTING ANY POSSIBLE ANOMALOUS DRIPPING FROM TAKING PLACE.

  • Page 18: Tank Draining

    - Mounted Sprayers ST104-300LITER END OF SEASONAL CYCLE • The operator must: a. Take the utmost care in carrying out the operations envisaged at the end of the daily treatments: the cleaning of the main tank must be done at least twice. Check that no product residues are left in any part the tank.

  • Page 19: Fault Findings

    - Mounted Sprayers ST104-300LITER FAULT FINDINGS E. FAULT Anomalous and continuous noisiness together with vibrations of the fan group. 1. CAUSE : Breaking of the fan shaft bearings. REMEDY : Address to RB Spraytech Sdn. Bhd. point of ‘Sale and Service’ . 2.
  • Page 20 - Mounted Sprayers ST104-300L-GEO-V1200E ST104-300L-GEO-V1200E SPRAYERS ASSEMBLY 17 55 37 49 43 15 30 29 34...
  • Page 21 SPARE PARTS LIST - Mounted Sprayers ST104-300L-GEO-V1200E ST104-300L-GEO-V1200E SPRAYERS SPARE PART LIST ITEM NO. PART NUMBER DESCRIPTION ITEM NO. PART NUMBER DESCRIPTION 109.10.050 HALF THREAD SCREW M10 X 50 W.A FRAME 300L TANK BOX_BADANG STST-398-10000 106.10.000 NYLOC NUT M10 STST-398-10010 W.A AA PIPE 0.5 inch STOPPER TANK...
  • Page 22 - Mounted Sprayers ST104-300LITER HIGH VOLUME DC SHURFLO PUMP ASSEMBLY MOTOR STFP-070-10001 DIAPHRAGM AND DRIVE ASSEMBLY VALVE STFP-070-10002 ASSEMBLY PRESSURE HOUSING STFP-070-10003 SWITCH ASSEMBLY STFP-070-10005 STFP-070-10004...
  • Page 23 SPARE PARTS LIST - Mounted Sprayers ST104-300LITER CIFARELLI V1200E SPARE PART...
  • Page 24 SPARE PARTS LIST - Mounted Sprayers ST104-300LITER CIFARELLI V1200E SPARE PART LIST ITEM ITEM PART NUMBER DESCRIPTION PART NUMBER DESCRIPTION CRANKSHAFT C7 METRIC THREAD STCF-002-10013 STCF-00G-10359 FAN V1200 WITH SPACERS GABBIA AD AGHI PER SPINOTTO C7 STCF-041-10001 STCF-021-10106 DISTANZIALE NELLA VENTOLA PER MOZZO STCF-003-10002 SPINOTTO C7 STCF-00G-10428...

  • Page 25: Warranty

    - Mounted Sprayers ST104-300LITER WARRANTY RB SPRAY TECH welcomes any warranty repair Warranty Repair Site and apologises for any inconvenience caused. See The warranty provides for repairs to be carried out the next page for the statement of the warranty at the servicing dealer’s normal place of business.
  • Page 26 - Mounted Sprayers ST104-300LITER CERTIFICATE OF WARRANTY The warranty will not be considered valid if this coupon, with every part of it filled in, is not mailed to the following address: Head Office RB Spray Tech Sdn. Bhd. (627487-P),No.1, Jalan Ikan Mata Duyung,KS10, Kampung Nelayan, Telok Gong, 42000 Pelabuhan Klang,Selangor Darul Ehsan, Malaysia.,or sent by fax to the following number: +603 3134 1194.
