HDD Module Removal

0
Prerequisite:
Base Door Removal
1. Remove two (2) screws (D) from module (A).
2. Use tab on mylar (C) to lift and remove module (A) from mainboard connector dock.
NOTE:
NOTE:
Module A is primary HDD module. Module B is secondary HDD module.
C
C
D
D
A
B
D
D

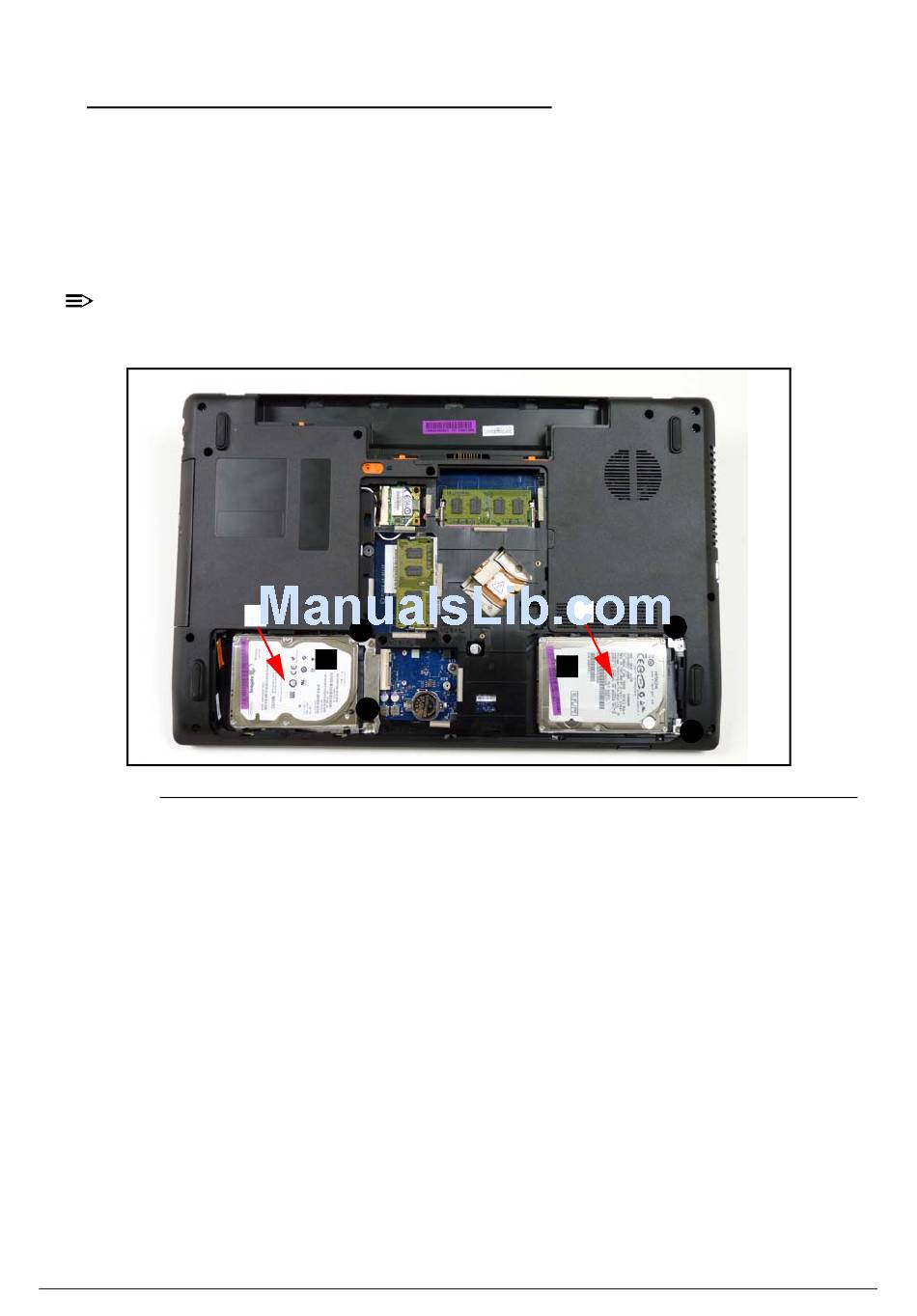

Figure 3-6. HDD Module
3. Remove four (4) screws (E) (Figure 3-7) securing module to brackets (F).
3-12 Machine Maintenance Procedures
