Exploded Diagrams

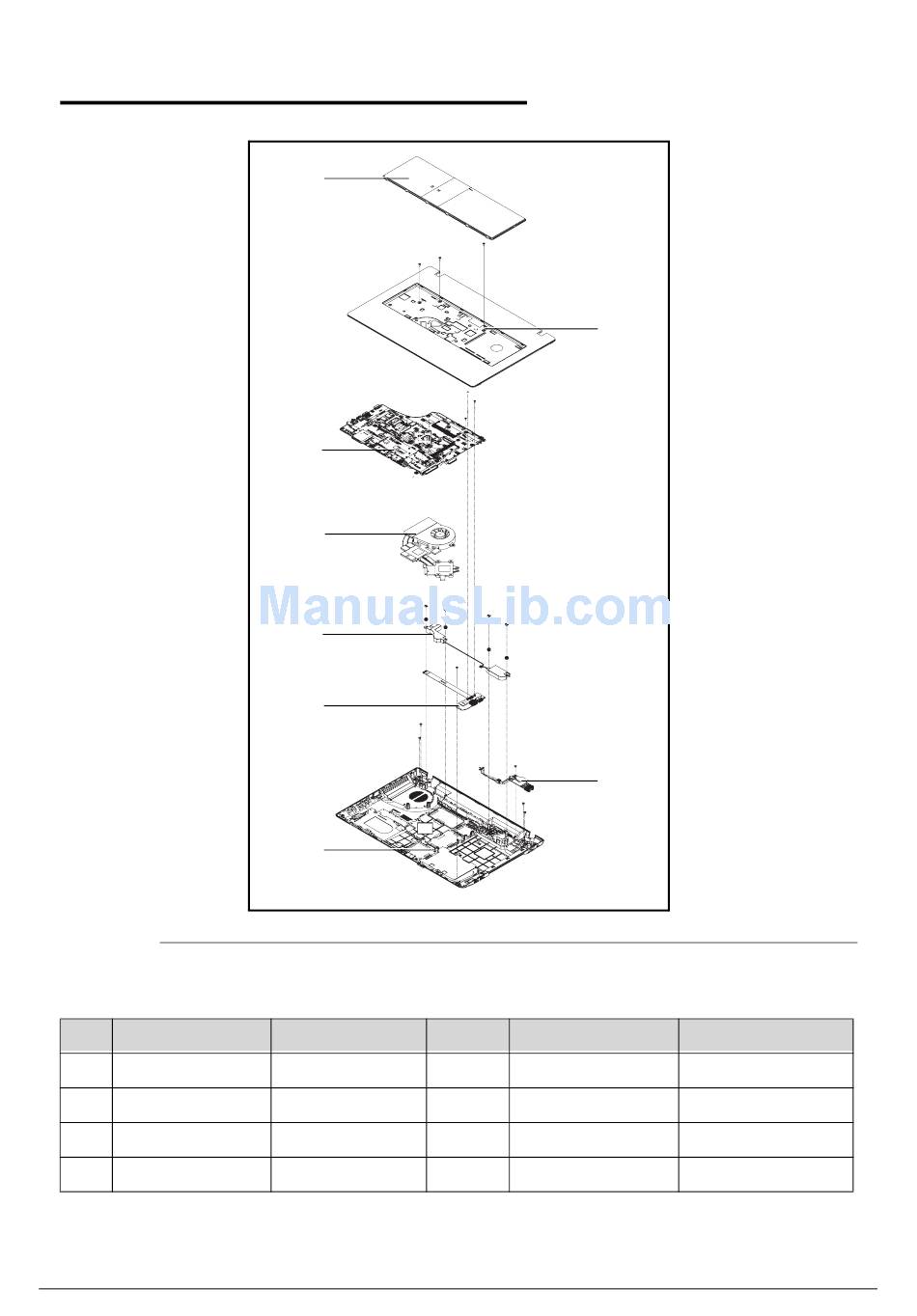

Figure 6-1. Main Assembly Exploded Diagram
Table 6-1. Main Assembly Exploded Diagram
No. Description
1 Keyboard
2 Upper Cover
3 Mainboard
4 Thermal Module
6-4
1
3
4
5
6
8
Acer Part No.
KB.I170A.172
60.RB002.001
MB.RB002.001
60.RB002.013
2
7
No. Description
5 Speakers
6 USB Board
7 LAN Board
8 Lower Cover
FRU (Field Replaceable Unit) List
0
Acer Part No.
23.RB002.003
55.RB002.003
55.RB002.005
60.RB002.005
