Fan Module Removal; Fan Module Installation - Acer Aspire 7750Z Service Manual

FAN Module Removal

Prerequisite:
Mainboard Removal
1. Disconnect module cable (B) from mainboard connector.
2. Loosen two (2) screws (C) from module (A).
3. Remove module.

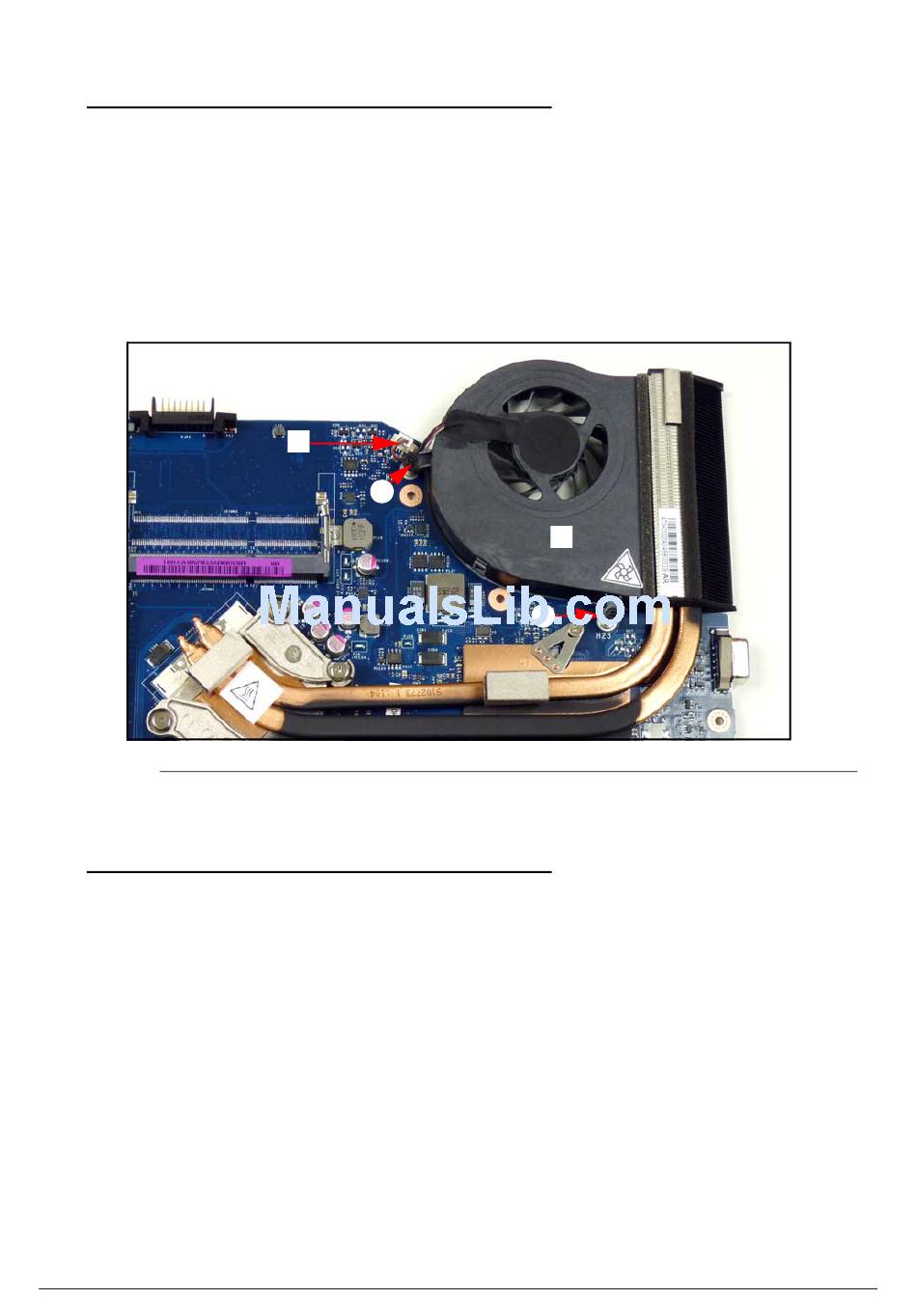

Figure 3-25. FAN Module

FAN Module Installation

1. Install module (A) on mainboard.
2. Secure two (2) screws (C) to module (A).
3. Connect module cable (B) to mainboard (Figure 3-25).
4. Install mainboard.
