Mainboard Removal

Prerequisite:
Upper Cover Removal
1. Disconnect Bluetooth cable from mainboard connector (A).
2. Disconnect speaker cable from mainboard connector (B).
3. Disconnect USB FFC cable from mainboard connector (C).
4. Disconnect LAN from mainboard connector (D).
5. Disconnect microphone cable from mainboard connector (E).
6. Disconnect LVDS cable from mainboard connector (F).
7. Disconnect DC-IN cable from mainboard connector (H).
8. Remove screw (G) from mainboard.

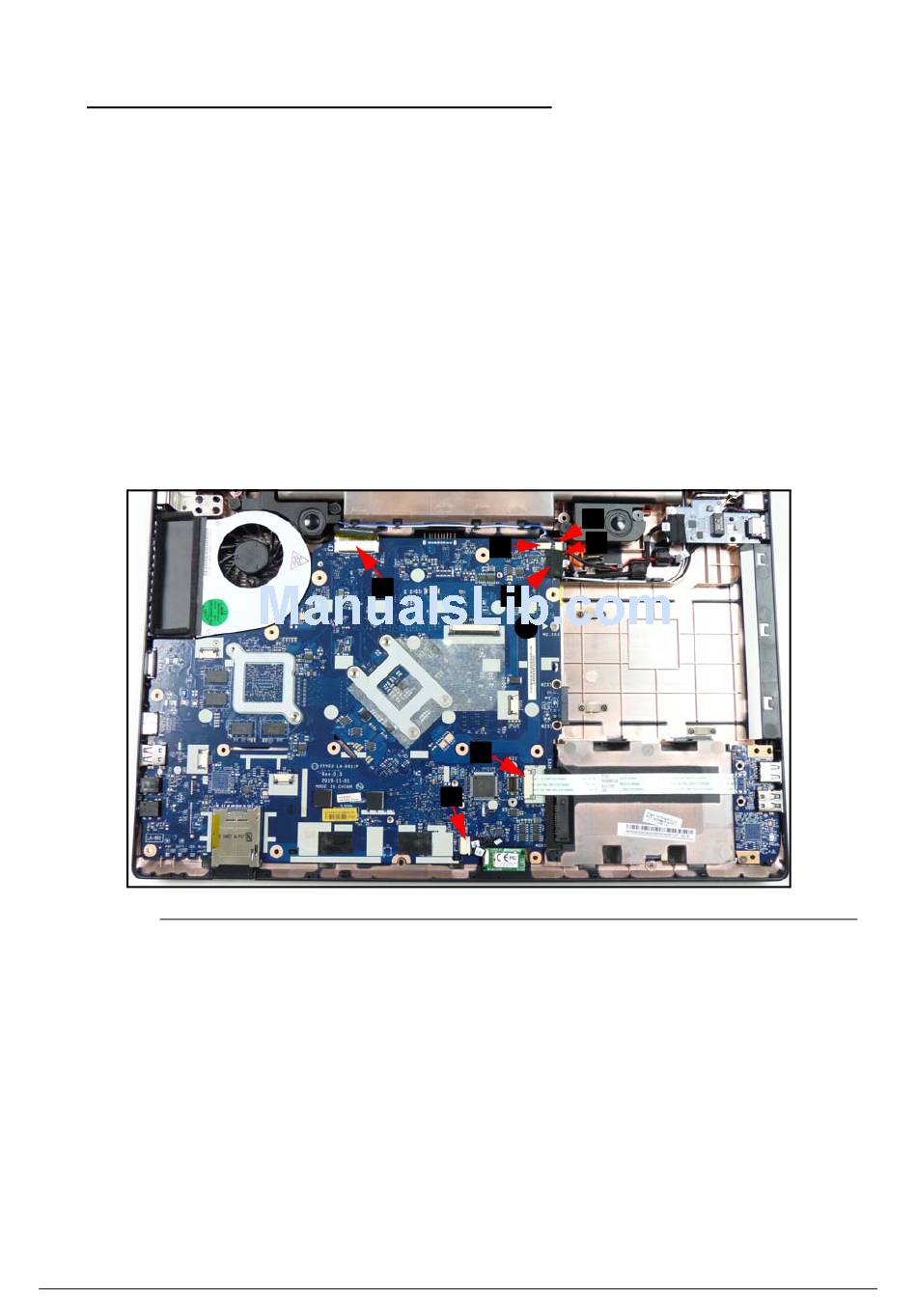

Figure 3-23. Mainboard Connectors
9. Lift mainboard at slight angle.
3-28
B
F
D
G
C
A
0
E
G
Machine Maintenance Procedures
