LAN Module Removal

Prerequisite:
Upper Cover Removal
1. Remove adhesive from mainboard connector (C).
2. Disconnect cable (B) from mainboard connector (C).
3. Remove screw (D) from module (A).
4. Remove module (A) from lower cover.
C

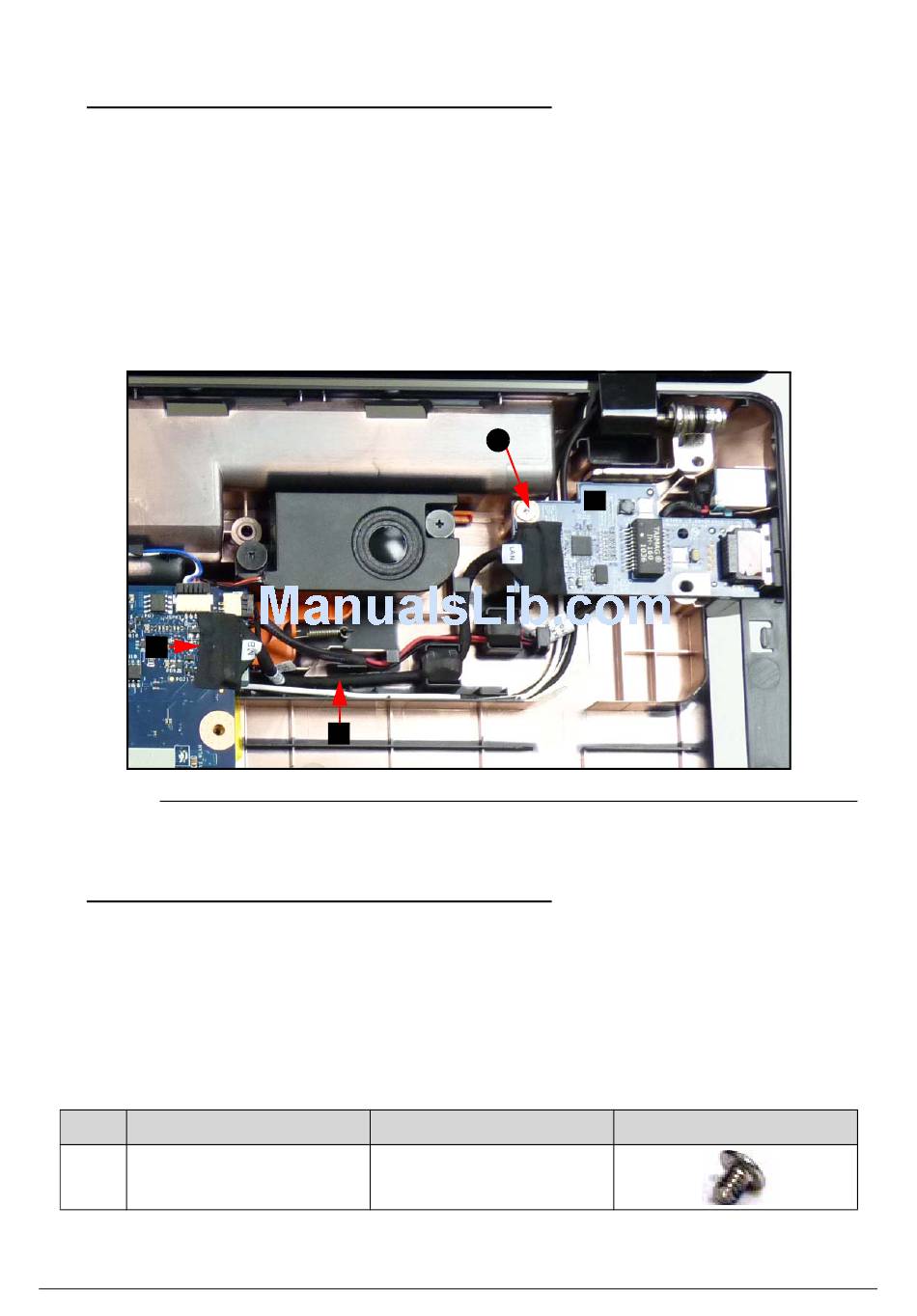

Figure 3-21. LAN Module

LAN Module Installation

1. Install module (A) on lower cover. Figure 3-21.
2. Install and secure screw (D) to module (A).
3. Connect cable (B) to mainboard connector (C).
4. Install adhesive to mainboard connector (C).
5. Install upper cover.
ID Size
D M2.5*3 Ni
3-26
D
B
Quantity
1
0
A
Screw Type
Machine Maintenance Procedures
