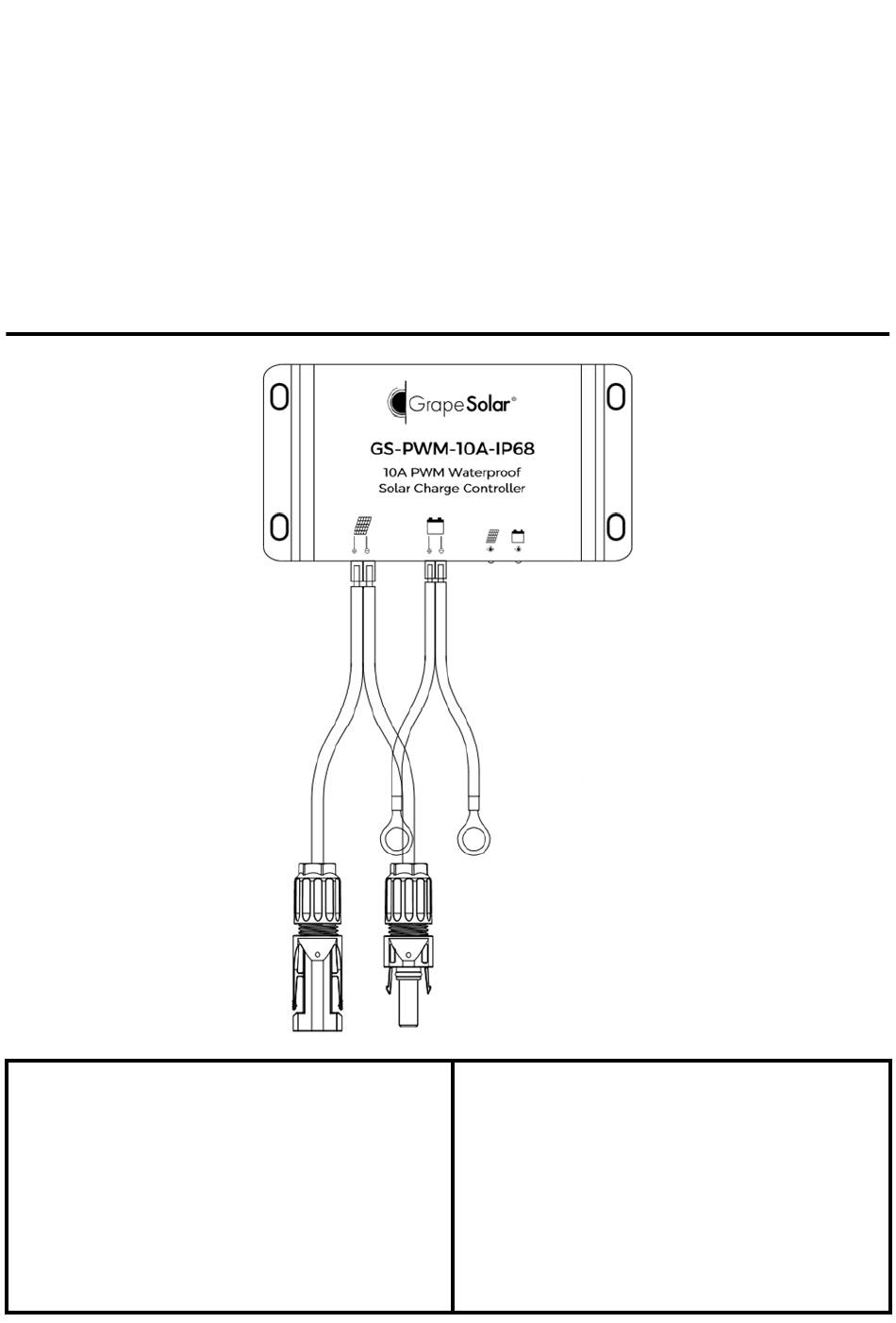

- Page 1 Grape Solar GS-PWM-10A-IP68 Waterproof Charge Controller Quick Start Manual *Diagram not to scale. ■ IP68 level waterproof ■ LED status indicator ■ PWM 3-stage charge ■ Connectors included ■ For 12V batteries only ■ Extra cable length...
- Page 2 QUICK START GUIDE STEP 1. Connect the ring lugs to your 12V deep cycle battery. This controller supports common lead -acid battery types including AGM/Gel/Flooded. If your battery has sufficient charge, the battery LED indicator should light up solid. STEP 2. Connect the MC4 style solar connectors to a 12V solar panel rated no more than 150 watts.
- Page 3 LED Indication Chart Signal System Status *Solar not charging Solid On Solar voltage detected Solar LED Indicator Slow Flash Charging battery Quick Flash **Solar over-voltage alert No charge from battery Battery LED Solid On Battery connected Indicator Quick Flash ***Over-discharge alert * This indicator is generally off during night time.
- Page 4 CAUTION: Do not use controller in enclosed spaces with limited air flow, as the controller can heat up quickly. Do not use on non- specified battery types such as lithium-ion, and 24V/48V systems. Copyright by Grape Solar, all rights reserved.
