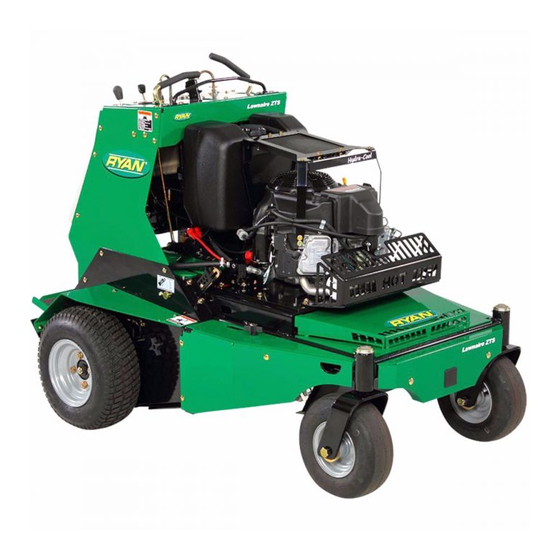

LAWNAIRE ZTS FS541V KAW
(S/N 1575 and higher)
LAWNAIRE ZTS FS541V KAW
(S/N 0224 and higher)
www.ryanturf.com
554930A
554930ACA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RYAN LAWNAIRE ZTS FS541V KAW and is the answer not in the manual?

Questions and answers

Related Manuals for Schiller RYAN LAWNAIRE ZTS FS541V KAW

Summary of Contents for Schiller RYAN LAWNAIRE ZTS FS541V KAW

  • Page 1 554930A LAWNAIRE ZTS FS541V KAW (S/N 1575 and higher) 554930ACA LAWNAIRE ZTS FS541V KAW (S/N 0224 and higher) www.ryanturf.com...

  • Page 2: California Proposition

    CALIFORNIA PROPOSITION 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. ADVERTENCIA: Cáncer y Dãno Reproductivo - www.65Warnings.ca.gov. WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. ADVERTENCIA El estado de California hace saber que los gases de escape de este producto con-...
  • Page 3 Your safe use of this Schiller Grounds Care, Inc. product is one of our prime design objectives. Many safety features are built in, but we also rely on your good sense and care to achieve accident-free operation.
  • Page 4 Schiller of hazard seriousness. These words appear in this Grounds Care, Inc. Engineering Department. Any manual and on the safety labels attached to Schiller Schiller Grounds Care, Inc. product that is altered, Grounds Care, Inc. machines. For your safety and...
  • Page 5 SAFETY LAWNAIRE ZTS PREPARING FOR SAFE OPERATION Site preparation and circumstances Operator preparation and training – Evaluate the terrain to determine what Read the Operation & Safety accessories and attachments are needed to Manual properly and safely perform the job. Only use –...

  • Page 6: Machine Preparation

    SAFETY LAWNAIRE ZTS MACHINE PREPARATION STARTING – Check operator present interlock system and – Start only according to instructions in this manual brake operation. Adjust or repair any problems or on the machine. before using. – Before attempting to start the engine, make sure: –...
  • Page 7 SAFETY LAWNAIRE ZTS – Do not aerate steep slopes: INTERRUPTING OPERATION Slope is too steep if: – Before leaving the operator's position: - the machine must be crabbed (turned partially - Park on level ground; sideways uphill) to drive across the slope. - Set the parking brake;...

  • Page 8: Maintenance Safety

    SAFETY LAWNAIRE ZTS MAINTENANCE SAFETY FUEL WARNING IN GENERAL – Gasoline and diesel fuels are flammable; gasoline vapors – Maintain machine according to manufacturer's are explosive. Use extra schedule and instructions for maximum safety care when handling. and best results. –...

  • Page 9: Storage Safety

    SAFETY LAWNAIRE ZTS BATTERY JUMP STARTING WARNING Battery acid is caustic and fumes 1. Be sure the jumper cables are in good condition. are explosive and can cause seri- Turn off the ignition and all electrical accessories ous injury or death. on both machines.
  • Page 10 LABELS LAWNAIRE ZTS WARNING NOTICE BEFORE STARTING OR SERVICING: Maintain a - Read and understand the operator manual and all labels. 4’ or greater - Be sure the machine is in safe operating turning radius condition and the operator presence works. when aerating - Make necessary repairs.
  • Page 11 LABELS LAWNAIRE ZTS PIN MAX DEPTH PIN MAX DEPTH 2” 2” 2-1/2” 2-1/2” 3” 3” 3-1/2” 3-1/2” 4” 4” 4-1/2” 4-1/2” 5” 5” USE SAME HOLE ON BOTH SIDES USE SAME HOLE ON BOTH SIDES 4172887 4172886 JACK STANDS Service Guide HYDRAULIC OIL TO RAISE MACHINE: Read and understand the Operator Manual before servicing.
  • Page 12 ASSEMBLY / CONTROLS LAWNAIRE ZTS ASSEMBLY / SET UP INSTRUCTIONS 1. READ THE OPERATOR'S MANUAL BEFORE ASSEMBLY. 2. Remove the brackets securing the machine to the pallet. Reinstall the caster axle nuts. Tighten the nuts. Fill tires at pressure at 15 psi on the rear tires and 25 psi on the front tires. 3.
  • Page 13 CONTROLS LAWNAIRE ZTS DEPTH SET (J1 & J2) - The depth setting is located below and to the rear of the engine on each side. Place the pin in the hole on each side for the depth you wish to aerate. NOTE: Actual depth may vary depending on soil conditions, tire pressure and tine wear.
  • Page 14 CONTROLS LAWNAIRE ZTS PAD (M) - The pad (M) may be removed for access to the inside of the control tower and to access the document tube (N) containing the operator's manual. It may be un-clipped and used as a kneeling pad. To remove, lift up and pull out at the bottom of the pad.

  • Page 15: Operator Platform

    CONTROLS LAWNAIRE ZTS OPERATOR PLATFORM The operator platform may be raised to shorten the machine for transport or to allow use as a walk behind unit. Flip the operator platform up and secure with the latch. Operate the machine normally. To lower the operator platform, lift the latch, and lower the operator platform to the riding position.

  • Page 16: Pre-Operation Check List

    PRE-OPERATION CHECK LIST LAWNAIRE ZTS PRE-OPERATION CHECK LIST (OWNER’S RESPONSIBILITY) ___ Review and follow all safety rules and safety ___ Never allow riders. decal instructions. ___ Inspect area and remove stones, branches or ___ Check that all safety decals are installed and in other hard objects that might affect aeration, good condition.

  • Page 17: Operation

    OPERATION LAWNAIRE ZTS FUELING OPERATOR PRESENCE INTERLOCK SYSTEM – Fill fuel tank(s) with good quality, clean, unleaded gasoline. Do not use hi-test fuel. Do not use fuel To start the engine: with more than 10% ethanol (E10). – The left hand operator presence control lever –...
  • Page 18 OPERATION LAWNAIRE ZTS STEERING Turns during reverse movement: Forward movement - To – Reverse right turn - move the machine straight move the right traction ahead, push both control lever forward toward levers forward equally neutral to slow the right FORWARD REVERSE RIGHT TURN from their neutral posi-...
  • Page 19 OPERATION LAWNAIRE ZTS AERATING Use of the Depth Stops (J1 & J2) NOTE: For best performance, the lawn to be aerated – The depth stops enable consistent core depth in should be thoroughly watered the day before. varying soil conditions by setting the maximum core 1.

  • Page 20: Transportation & Storage

    TRANSPORTATION / STORAGE LAWNAIRE ZTS TRANSPORTATION OPERATOR PLATFORM To reduce the space required, the operator platform may be folded up. A latch is provided to hold it in the "UP" position. the latch automatically engages when the platform is raised. to lower the operator platform, raise the latch to disengage it and lower the platform.

  • Page 21: Maintenance

    MAINTENANCE LAWNAIRE ZTS CHECK DAILY Operator Presence Interlock System - Start Operation For the engine to crank, the parking brake must be ON, and the operator present control lever must be re- leased in the neutral position. Stand on the operator platform and check, one by one, if the engine will crank with the parking brake OFF or the operator control lever held down.

  • Page 22: Jack Stands

    MAINTENANCE LAWNAIRE ZTS JACK STANDS Your machine is equipped with built in jackstands. The jack stands are useful to raise the drive wheels off the ground for maintenance and changing chains and belts. – When jack stands have been positioned, run or stop engine as appropriate for the work being performed.

  • Page 23: Engine Oil

    MAINTENANCE LAWNAIRE ZTS ENGINE OIL Do not perform engine maintenance without the en- gine off and spark plug wires disconnected. AFTER FIRST FIVE (5) HOURS While the engine is warm: 1. Release the oil drain hose assembly from the engine clip J. Lay hose assembly over the frame edge.
  • Page 24 MAINTENANCE LAWNAIRE ZTS LUBRICATION PIVOTS Every 500 hours or yearly (whichever comes first): Caster pivots (2 per) Transaxle idler pivots (1 per) Hydraulic cylinder pivots (1 per) WARNING CHAINS-LUBRICATION AND TENSION Check chain tension after the first 4 hours of operation as detailed below.
  • Page 25 MAINTENANCE LAWNAIRE ZTS TRANSAXLE & HYDRAULIC OIL Do not perform engine maintenance without the en- gine off and spark plug wires disconnected. Check cold. Add 20w50 oil if necessary to the indicated level. Do not overfill. When the oil warms up it ex- pands.

  • Page 26: Engine Cooling

    MAINTENANCE LAWNAIRE ZTS PURGING TRANSAXLES 2. Raise the drive wheels off the ground. Support unit with jack stands or other suitable means. Due to the effects air has on efficiency in hydrostatic 3. With the bypass valve open, and the engine drive applications, it is critical that it be purged from running, slowly move the control levers in both the system.

  • Page 27: Cleaning Machine

    MAINTENANCE LAWNAIRE ZTS SPECIFIC TORQUES TINE BOLTS 15-20 FT-LBS (20-27 Nm) WHEEL LUG NUTS 75-100 FT-LBS (102-135.5 Nm) ENGINE PULLEY MOUNTING BOLT 50-60 FT-LBS (68 Nm-81Nm) WHEEL HUB NUT 120-140 FT-LBS (162.5-190 Nm) CLEANING MACHINE WASHING MACHINE Clean the machine after use. Compressed air is CAUTION: Improperly washing a machine can cause recommended.

  • Page 28: Maintenance Chart

    MAINTENANCE CHART LAWNAIRE ZTS t l i t l i Lubricate chains Check chain tension *CHANGE TRANSAXLE OIL AFTER INITAL 75-100 HOURS.
  • Page 29 ADJUSTMENTS LAWNAIRE ZTS MAXIMUM AERATION DEPTH Depth stops set the maximum aeration depth. Maximum aeration depth may be adjusted by changing the hole the depth stop pin is in. Typical aeration depth is 2 1/2 - 3” (60-75 mm). Pins J1 on both sides of the machine need to be in the same hole so the tine frame is not twisted during operation.
  • Page 30 ADJUSTMENTS LAWNAIRE ZTS TRACTION CONTROL LINKAGE The transaxles on this machine are spring loaded to the neutral position. The traction control levers need to be adjusted so the LH lever is in the neutral slot when the tractions are released. The right hand lever is adjusted to line up with the left hand lever.
  • Page 31 ADJUSTMENTS LAWNAIRE ZTS CHAINS Tines may drop suddenly. Support the tines when working underneath them. NOTE: It is normal for there to be some play in the chain. WHEEL AND TINE DRIVE CHAIN ADJUSTMENTS 1. Raise the machine and support it on the built in jack stands.

  • Page 32: Belt Replacement

    BELT REPLACEMENT LAWNAIRE ZTS NOTE: Use replacement belts from Schiller Grounds care, Inc. not general purpose belts. Schiller Grounds Care, Inc. belts are specifically designed for the loads of this machine and will normally pro- vide longer service life. ENGINE-TRANSAXLE BELT 1.

  • Page 33: Chain Replacement

    CHAIN REPLACEMENT LAWNAIRE ZTS NOTE: It is recommended replacement chains TINE CHAIN from Schiller Grounds care, Inc. be used. Schiller Tines may drop suddenly. Support tines when work- Grounds Care, Inc. supplies a premium quality chain ing underneath them. cut to the correct length. Replace all chains together 1.
  • Page 34 CHAIN REPLACEMENT LAWNAIRE ZTS WHEEL CHAIN 1. Start the engine and raise the machine ion the jack stands. See jack stands section page 19. Stop the engine. Open the transaxle by pass valves so you can rotate the tines and axles manually.

  • Page 35: Specifications

    SPECIFICATIONS LAWNAIRE ZTS SPECIFICATIONS ENGINES: DRIVE TIRES: Construction: Aluminum block with cast-in cast iron 18 X 6.50-8 sleeves. Aluminum head. Pressure: 15 p.s.i. (1.05 kg/cm²) Configuration: 4-stroke, vertical shaft, V-twin cylinder, overhead valve, air-cooled. CASTERS: 13 X 5.00-6 DRIVE SYSTEM: Pressure: 25 p.s.i.
  • Page 36 SPECIFICATIONS LAWNAIRE ZTS ENGINE MODEL NUMBER 554930 MANUFACTURER KAWASAKI MODEL FS541V CYLINDERS COOLING FUEL Gasoline BORE/STROKE 2.9" x 2.8" (73 x 72 mm) DISPLACEMENT 36.8 ci (603 cc) COMPRESSION 8.1:1 OUTPUT POWER Refer to engine manufacturer's speci- fications and website OUTPUT TORQUE 31.0 ft-lb (42.1 Nm)

  • Page 37: Parts Section

    PARTS SECTION LAWNAIRE ZTS PARTS SECTION...
  • Page 38 UPPER ENGINE ASSEMBLY LAWNAIRE ZTS FIGURE 1...
  • Page 39 UPPER ENGINE ASSEMBLY LAWNAIRE ZTS FIGURE 1 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4174462 S-MAIN FRAME 64018-7 BLT-CRG 3/8-16X1-1/4 64018-44 BLT-CRG 3/8-16X1 SN 64001-6 NUT-HEX JAM 3/8-16 4171512.7 PLT-ENGINE MOUNTING 64263-007 BLT-FLG HD M8-1.25 X 20 64262-002 BLT-FLG HD 1/4-20 X 3/4 64268-03 NUT-FL NYLON LOCK 3/8-16 4172292.7...
  • Page 40 LOWER ENGINE ASSEMBLY LAWNAIRE ZTS FIGURE 2...
  • Page 41 LOWER ENGINE ASSEMBLY LAWNAIRE ZTS FIGURE 2 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4171512.7 PLT-ENGINE MOUNTING 4173822 PUMP-GEAR 2.1XCC 4171447 PULLEY-4 IN 4164382 ENGINE-KAW FS541V ES 2690030-03 FTG-3/4-16 ORB X 1/2 BARB 4174462 S-MAIN FRAME 64006-06 LOCKWSHR-7/16 HELICAL 2308000 PULLEY-IDLER 4.00 EOD 25-2503-8-6...
  • Page 42 FUEL TANK, BATTERY, RESERVOIR LAWNAIRE ZTS FIGURE 3 USED ON 554930 ONLY (10”) To Carburetor (36”) (7”) USED ON (12”) 554930CA ONLY 32 31 (41.5”) (21.5”) Carburetor To Rollover Vent on Tank...
  • Page 43 FUEL TANK, BATTERY, RESERVOIR LAWNAIRE ZTS FIGURE 3 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4174462 S-MAIN FRAME 4174266-1 TANK-FUEL, MIDSIZE (INCLUDES ITEMS 3-6) 4174343 GROMMET, ROLL-OVER 4165763 TANK VENT 4132325 GROMMET-SEALING 4165561-2 TUBE-FUEL, PICK-UP 4165291 CAP-FUEL, 3.5IN EPA 4162977-001 HOSE-FUEL 1/4 INCH 88042N CLAMP-HOSE...

  • Page 44: Wheel Assemblies

    WHEEL ASSEMBLIES LAWNAIRE ZTS FIGURE 4...
  • Page 45 WHEEL ASSEMBLIES LAWNAIRE ZTS FIGURE 4 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 2722228 ASSY-WHEEL 13X5.00-6 64018-7 BLT-CRG 3/8-16X1-1/4 64187-03 NUT-WHEEL 1/2-20 4171799 ASSY-WHEEL 18X6.50-8 64123-215 BLT-HEX 3/4-10X7-1/2 64229-07 NUT-NYLON LOCK 3/4-10 2722231 SPACER-END 2722230-02 SPANNER 4173176 WLDMT-AXLE SHAFT 64268-03 NUT-FL NYLON LOCK 3/8-16 4171458.7...

  • Page 46: Parking Brake Assy

    PARKING BRAKE ASSY LAWNAIRE ZTS FIGURE 5...
  • Page 47 PARKING BRAKE ASSY LAWNAIRE ZTS FIGURE 5 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4171573.7 BRKT-BRAKE MOUNT 4174464 S-BRAKE ARM BRAKT (INCLUDES ITEM 10) 4176120 KNOB-THREADED 4176129 WLDMT-BRAKE HANDLE 4173527.7 BRKT-BRAKE, PARKING 4173896.7 BRKT-CABLE 4117212 SPRING-EXTENSION 4173898 CABLE-BRAKE, PARKING 4174337 HUB-BRAKE PIVOT 10 4166324-04...

  • Page 48: Electrical System

    ELECTRICAL SYSTEM LAWNAIRE ZTS FIGURE 6 ENGINE KILL CHARGE CONNECTION (RED) CARB SOLENOID TO STARTER BATTERY TO SOLENOID (2) (BLACK) BATTERY GROUND ENGINE BLOCK (GROUND) (RED) SOLENOID SOLENOID STARTER SOLENOID CHARGING RELAY AUXILIARY POWER HOUR METER PARK BRAKE SWITCH LIFT SWITCH WIRE COLORS AND GAUGE CODE COLOR...
  • Page 49 ELECTRICAL SYSTEM LAWNAIRE ZTS FIGURE 6 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4172161 HARNESS-WIRING MAIN (INCLUDES ITEM 9) 128010 KEY-SWITCH 2722325 RELAY-40AMP SEALED 38665 SOLENOID 108208 SWITCH-DBL POLE 4177930 METER-HOUR 2308094 SWITCH NCNC 4171893 SWITCH-ROCKER 148082-20 FUSE-20 AMP 10 4171099 BATTERY-AGM TYPE 4171973...

  • Page 50: Transaxle Assembly

    TRANSAXLE ASSEMBLY LAWNAIRE ZTS FIGURE 7 FROM RESERVIOR TO OIL COOLER...
  • Page 51 TRANSAXLE ASSEMBLY LAWNAIRE ZTS FIGURE 7 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4171283 TRANSAXLE, HYDROSTATIC RH 1 4142045-06 FILTER-TRANSAXLE 4171282 TRANSAXLE, HYDROSTATIC LH 4172890.7 BRKT-SHIELD SUPPORT 4148697 ROD-PULL FREEWHEEL 64268-02 NUT-FL NYLON LOCK 5/16-18 4173645 SPACER-BUSHING 4169194 BUSHING - .522 X ..688 X .289 64163-29 WSHR-21/64 X 1 X 11GA 4174382...

  • Page 52: Oil Cooling System

    OIL COOLING SYSTEM LAWNAIRE ZTS FIGURE 8 6.5” (7.75”) 10 9 29”) (33”) (17.5”) (11.25”) (2.63’) (3.25”) (5.75”) (20”) (20”) (9.625”)
  • Page 53 OIL COOLING SYSTEM LAWNAIRE ZTS FIGURE 8 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 2188173 COOLER-OIL 4174463 S-RESERVOIR 4171280 MANIFOLD-AERATOR 4171284 GAUGE-HYDRAULIC 0-1000 PSI 1 4171281 CYLINDER-2.25 X 3.0 4173822 PUMP-GEAR 2.11CC 4171282 TRANSAXLE, HYDROSTATIC LH 1 4171283 TRANSAXLE, HYDROSTATIC RH 1 4142045-06 FILTER-TRANSAXLE 2720396...
  • Page 54 CONTROL PANEL & TOWER ASSY LAWNAIRE ZTS FIGURE 9 RESERVOIR TANK CYLINDER TO PUMP...
  • Page 55 CONTROL PANEL & TOWER ASSY LAWNAIRE ZTS FIGURE 9 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4173497 S-CONTROL PANEL 4176220 LABEL-CONTROL PANEL 4177930 HOUR METER-MAG SENSE 128010 SWITCH KEY 64141-2 NUT-WLF 1/4-20 4172326-01 HOSE-#4JIC/JIC 90 LG 17.38 4171284 GAUGE-HYDRAULIC 0-1000 PSI 1 118020-22 CONTROL-THROTTLE, 57.5IN 4171280...

  • Page 56: Handle Controls

    HANDLE CONTROLS LAWNAIRE ZTS FIGURE 10...
  • Page 57 HANDLE CONTROLS LAWNAIRE ZTS FIGURE 10 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 64018-44 BLT-CRG 3/8-16X1 SN 64262-012 BLT-FLG HD 3/8-16 X 1-1/4 64268-01 NUT-FL NYLON LOCK 1/4-20 64140-18 COTTER PIN-1/4-2 64262-013 BLT-FLG HD 3/8-16 X 1-1/2 64018-51 BLT-CRG 5/16-18 X 3/4 SN 64229-03 NUT-NYLON LOCK, 3/8-16 4171478.7...
  • Page 58 DEPTH STOP & HOC ASSEMBLY LAWNAIRE ZTS FIGURE 11...
  • Page 59 DEPTH STOP & HOC ASSEMBLY LAWNAIRE ZTS FIGURE 11 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4117212 SPRING-EXTENSION 4176366.7 PLATE-GUIDE 4176416.7 PLATE-RATCHET 2183071-04 SPACER 4169597 EYE BOLT 5/16-18 X 1.5 83-5013E08 SPROCKET-WHEEL,FRONT 4172671 ARM-DEPTH 4176369.7 S-TENSNR SPRING BRKT LH 4176370.7 S-TENSNR SPRING BRKT RH 4174327.7...

  • Page 60: Jackshaft Assembly

    JACKSHAFT ASSEMBLY LAWNAIRE ZTS FIGURE 12...
  • Page 61 JACKSHAFT ASSEMBLY LAWNAIRE ZTS FIGURE 12 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4174137 SPACER 64141-6 NUT-WLF 5/16-18 64018-15 BLT-CRG 5/16-18X1 SN 64123-24 BLT-HEX 1/2-13X2 64284-16 NUT-FL CRLK 5/8-18 64141-13 NUT-WLF 1/2-13 4177234.7 WLDMT-TINE ASSY 64044-18 SCREW-SET 5/16-18 x 5/16 64164-28 KEY-1/4 X 1 #15 WOODRUFF 64221-1...

  • Page 62: Tine Assembly

    TINE ASSEMBLY LAWNAIRE ZTS FIGURE 13...
  • Page 63 TINE ASSEMBLY LAWNAIRE ZTS FIGURE 13 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 41777234.7 WLDMT-TINE ASSY 4171322.7 WLDMT-TINE BANK RH 64141-6 NUT-WLF 5/16-18 64018-15 BLT-CRG 5/16-18X1 SN 4172865 LINK-CONNECTOR 4172864-02 CHAIN-50 ROLLER 63 PITCH 4173503 KIT-CHAIN (INCLUDES ALL 6 CHAINS FOR UNIT AND LINKS) 64044-13 SCREW-SET 1/4-28X1/4 64044-18...
  • Page 64 PLATFORM, PAD & JACKSTANDS LAWNAIRE ZTS FIGURE 14...
  • Page 65 PLATFORM, PAD & JACKSTANDS LAWNAIRE ZTS FIGURE 14 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4172224.2 PLT-JACK 4172688 PIN-JACK 4173046 BUSHING-LATCH ARM 64268-02 NUT-FL NYLON LOCK 5/16-18 64018-58 BLT-CRG 5/16-18X1-3/4 64163-108 WSHR-.334 X 1.25 X .125 4171391 BUSHING-SPACER 64262-027 BLT-FLG HD 3/8-16 X 2-1/4 GR8 2 64268-03 NUT-FL NYLON LOCK 3/8-16...
  • Page 66 COVERS & GUARDS LAWNAIRE ZTS FIGURE 15...
  • Page 67 COVERS & GUARDS LAWNAIRE ZTS FIGURE 15 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4172177.2 COVER-WEIGHT 4171538.2 PLT-WEIGHT 4172194.2 WLDMT-HITCH 4172869 PLUG-HITCH TUBE 4172703.17 PLT-WEIGHT,CENTER 4172853.2 WLDMT-COVER FRONT 64141-6 NUT=WLF 5/16-18 2183071-03 SPACER-15.88X10.32X24 64018-51 BLT-CRG 5/16-18 X 3/4 SN 4171535.2 COVER-TOP FRONT 4171537.2...
  • Page 68 DECALS LAWNAIRE ZTS FIGURE 16 15 & 3 UNDER COVER...
  • Page 69 DECALS LAWNAIRE ZTS FIGURE 16 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4176220 LABEL- CONTROL PANEL 2000570 LABEL-WARN FUEL PICT. 2000577 LABEL WARNING 2000590 LABEL WARN BATTERY 4172910 LABEL-RESERVOIR 4172877 LABEL-LAWNAIRE ZTS 4161125 LABEL-RYAN OVAL, 3.5" 4172912 LABEL-HYDRA-COOL 4172915 LABEL-JACKSTAND 4172911 LABEL-SLOPES, CA SPARK...
  • Page 70 SCHILLER GROUNDS CARE, INC. ONE BOB-CAT LANE P.O. BOX 469 JOHNSON CREEK, WI 53038 920-699-2000 www.schillergc.com ©Schiller Grounds Care, Inc. 2010...

This manual is also suitable for:

554930a554930aca15750224
