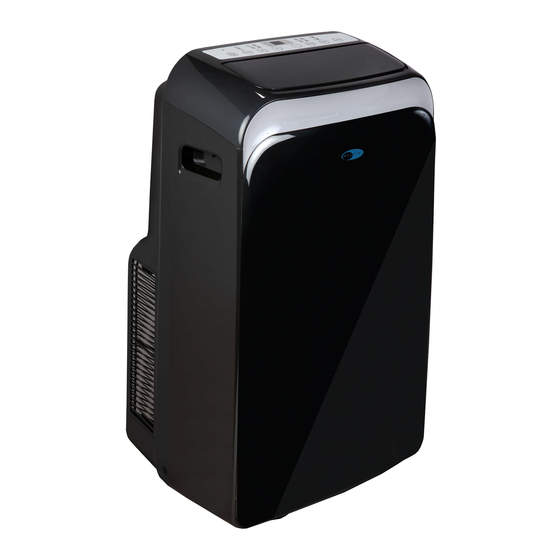

WHYNTER 12,000 BTU DUAL HOSE PORTABLE AIR CONDITIONER
WITH 3M AND SILVERSHIELD FILTER
Model # : ARC-126MDB
INSTRUCTION MANUAL
Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before
using this product. Keep this manual in a safe place for future reference.
V 2019.6.26
Advertisement
Table of Contents
Related Manuals for Whynter ARC-126MDB
Summary of Contents for Whynter ARC-126MDB
- Page 1 WITH 3M AND SILVERSHIELD FILTER Model # : ARC-126MDB INSTRUCTION MANUAL Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before using this product. Keep this manual in a safe place for future reference. V 2019.6.26...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE DISPOSAL INFORMATION SAFETY PRECAUTIONS INTRODUCTION / TECHNICAL DATA PARTS IDENTIFICATION 6 - 7 CONTROL PANEL INSTALLATION 9 - 11 OPERATION INSTRUCTIONS 12 - 13 REMOTE CONTROL CARE AND MAINTENANCE TROUBLESHOOTING 16 - 17 WARRANTY INFORMATION... -
Page 3: Disposal Information
DISPOSAL INFORMATION Thank you for choosing the Whynter 12,000 BTU Portable Air Conditioner Dual Hose with 3M and Silvershield filter. Please follow the instructions provided in this user guide to obtain the very best performance from your portable air conditioner and take full advantage of the many features your portable air conditioner offers you. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY WHEN USING YOUR AIR CONDIITIONER, FOLLOW THESE BASIC WARNING PRECAUTIONS: Before the appliance is used, it must be properly positioned and installed as detailed in this manual. Do not under any circumstances cut or remove the third (ground) prong from the power cord ... -
Page 5: Introduction / Technical Data
INTRODUCTION / TECHNICAL DATA HOW IT WORKS The Whynter compact CFC-free, lead-free, and energy efficient 12,000 BTU portable air condition-er, helps you stay cool while working with better environmental standards and reducing energy con-sumption. This high output portable air conditioner, specially designed to be mobile, can be easily setup in almost any indoor location and is most commonly used in data closets / server rooms, bedrooms, classrooms and garages / workshops. -
Page 6: Parts Identification
PARTS IDENTIFICATION FRONT VIEW Control Panel Front Air Vent / Louvers Handle Casters (four) BACK VIEW Upper Air Filter Upper Air Intake Upper Drain Port Intake Hose Pre-filter Air Exhaust Power Plug Air Intake Socket (use when storing unit) Power Cord Lower Air Filter Power Cord Buckle (use when storing unit) - Page 7 PARTS IDENTIFICATION ACCESSORY IMAGE ACCESSORY DESCRIPTION QUANTITY Exhaust and intake hose adapters to the unit 1 set Exhaust and intake hose 1 each Exhaust and intake hose adapters to the window 1 set Window Slider Kit 1 set Clear plastic plug (plug is in the upper corner of 1 piece the plastic bag that holds the user manual) 2 pieces...
-
Page 8: Control Panel
CONTROL PANEL Power Button Sleep Button Press to turn the air conditioner on and off Press to activate Sleep mode Fan Speed Button Mode Button Press to change fan speed Press to change mode • Controls the 3 fan speeds: LOW, MED, •... -
Page 9: Installation
Note: The 3M Filter should be replaced every 2-3 months de- WATER DRAINAGE The dehumidifying capacity of this unit is 61 pints per day. The patented self-evaporating function of the ARC-126MDB unit fully exhausts all condensation automatically in most en- Remove bottom vironments when humidity is less than 70%. - Page 10 INSTALLATION LOCATION The air conditioner should be placed on a hard and level surface strong enough to support the unit. The unit has casters and it should only be rolled on smooth, flat surfaces. Use caution when rolling on carpet surfaces. Do not attempt to roll the unit over objects.
- Page 11 INSTALLATION WINDOW KIT INSTALLATION IN A DOUBLE-HUNG WINDOW 1. Open window or sliding door for approxi- mately 5” Foam seal A (adhesive type) 2. Cut the foam seal A and B (adhesive type) to the proper length and attach it to the bottom of the window.
-
Page 12: Operation Instructions
OPERATION INSTRUCTIONS BEFORE USING YOUR APPLIANCE Remove the exterior and interior packing Before connecting the appliance to the power source, let it stand upright for approximately 4 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation SWITCHING ON/OFF THE AIR CONDITIONER The appliance can be switched ON or OFF by pressing the POWER button on the control panel or the ON/OFF but- ton on the remote control... - Page 13 OPERATION INSTRUCTIONS TIMER (DELAYED SWITCH ON / OFF) FUNCTION This function mode enables a delayed switch ON or delayed switch OFF of the air conditioner. The time (hours) de- lay can be set, enabled and disabled. SETTING SWITCH OFF TIMER With the air conditioner operating in any function mode, press the TIMER button.
-
Page 14: Remote Control
REMOTE CONTROL The portable air conditioner can be switched on by the remote control. To transmit signals from the remote con- trol to the air conditioner, point the front part of the remote handset towards the control panel on the air condi- tioner. -
Page 15: Care And Maintenance
NOTE: Silvershield pre-filter and intake hose pre-filter are washable and do not need to be replaced. The 3M should be replaced every 2-3 months depending on usage. Please contact support@whynter.com for retail sales information WARNING! Never operate the air conditioner without the Fig. 7c filter in place CLEANING THE AIR CONDITIONER ... -
Page 16: Troubleshooting
Drain water from the air conditioner Possible loose internal connection. and ‘P1” appears on display Please contact Whynter for service The room temperature is outside of This unit is designed to work in ambi- The unit turns on but the com-... - Page 17 TROUBLESHOOTING Problem Possible Causes Solutions Windows or doors are open Close all windows and doors The unit has worked for a long There are too many people in the You may need additional cooling or time, but the room is not cold enough room another air conditioner...
-
Page 18: Warranty Information
All defective products and parts covered by this warranty will be repaired or replaced on a mail-in basis to Whynter’s Service Center. This warranty is not transferable. After the expiration of the warranty, the cost of labor and parts will be the re- sponsibility of the original owner.
