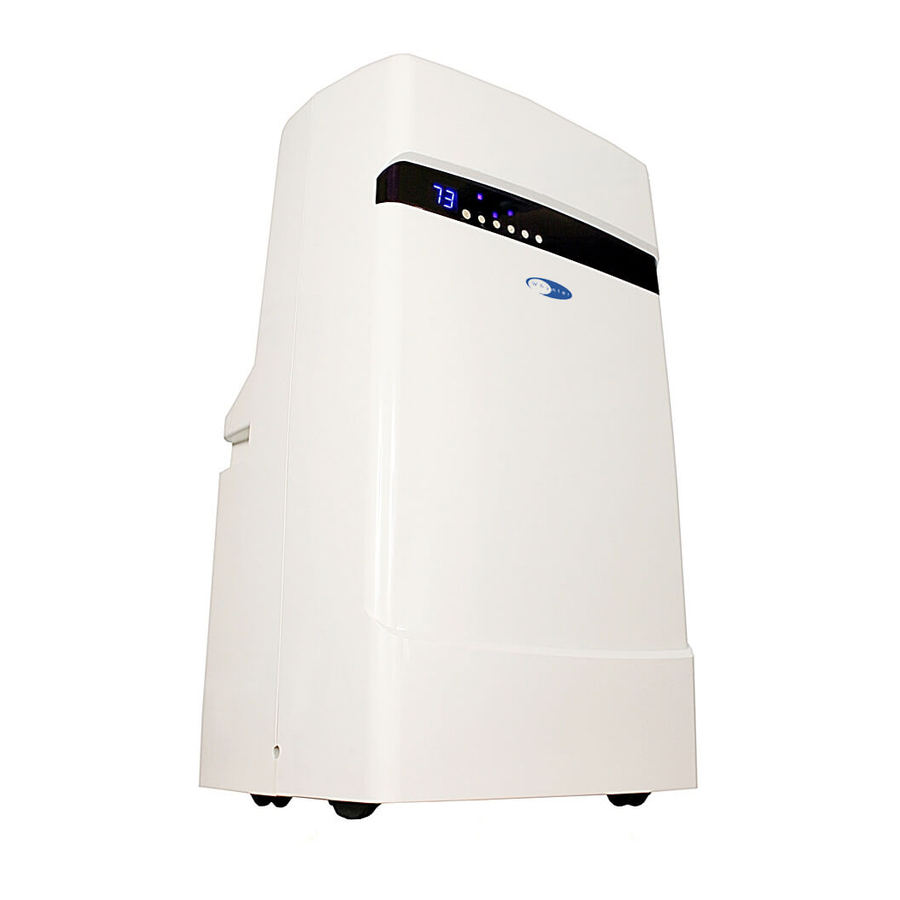

- Page 1 WHYNTER ECO-FRIENDLY 12,000 BTU PORTABLE AIR CONDITIONER MODEL# : ARC-12SD Instruction Manual Congratulations on your new WHYNTER product. Please read this Instruction Manual carefully before using this product to ensure proper operation. Keep this manual in a safe place for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION SAFETY PRECAUTIONS IDENTIFICATION OF ACCESSORIES IDENTIFICATION OF PARTS OPERATING YOUR AIR CONDITIONER INSTALLATION INSTRUCTIONS 9-10 AIR FILTERS INSTALLATION OPERATION INSTRUCTIONS 12-13 WATER DRAINAGE REMOTE CONTROL CARE AND MAINTENANCE TECHNICAL DATA TROUBLESHOOTING 17-18 WARRANTY INFORMATION P a g e... -
Page 3: Introduction
We trust that your Whynter air conditioner will provide the performance and reliability that we stand for. -
Page 4: Safety Precautions
Your safety and the safety of others are very important to us. To reduce the risk of fire, electrical shock or injury when using your appliance, follow these basic precautions. SAFETY PRECAUTIONS Before the portable air conditioner is used, it must be properly positioned and installed as detailed in this manual. - Page 5 Keep fingers out of the air intakes and air outlets. The unit is an electrical appliance. To avoid injury from electrical shock do not operate it with wet hands, while standing on a wet surface or while standing in water. Do not use it in outdoors or in wet conditions.
-
Page 6: Identification Of Accessories
IDENTIFICATION OF ACCESSORIES IMAGE ACCESSORY NAME QUANTITY Intake and Exhaust hose 2 pieces Fixture 2 pieces Screws 8 pieces Hose connector 4 pieces 1 set Window slider kit Cover 2 pieces Remote control 1 piece P a g e... -
Page 7: Identification Of Parts
IDENTIFICATION OF PARTS Front 1. Air vent 2. Control panel 3. Handle Rear 4. Casters 5. Air exhaust hose 6. Evaporator air intake / air filter 7. Air intake hose 8. Drain plug 9. Power cord 10. Upper Drain Port P a g e... -
Page 8: Operating Your Air Conditioner
OPERATING YOUR AIR CONDITIONER Before you begin, thoroughly familiarize yourself with the control panel, remote control and all of the functions. Follow the symbol for the desired function. The unit can be controlled by the unit control panel alone or with the remote control. CONTROL PANEL Timer Power Control... -
Page 9: Installation Instructions
4. Only extend the exhaust hoses to the necessary length. We do not recommend extending the exhaust hose more than 9' long. Additional 4’ exhaust hose sold separately. * If you are interested in purchasing optional accessories, please contact info@whynter.com for retail sales information. P a g e... - Page 10 Window kit Installation When you use this air conditioner unit, hot air must be exhausted out of the room to complete the air exchange of the condenser. When the unit is operating in dehumidifying and fan-only mode, no exhaust is required. Your window kit has been designed to fit most standard vertical and horizontal windows.
-
Page 11: Air Filters Installation
AIR FILTERS INSTALLATION Your Whynter portable air conditioner is equipped with a washable Pre-Filter and an Activated Carbon Filter. The washable Pre-Filter removes large particles such as dust, pet hair and dander. The Activated Carbon Filter which is designed to remove smoke and other odors. It is recommended you replace the Activated Carbon Filter every 2-3 months or as needed. -
Page 12: Operation Instructions
OPERATION INSTRUCTIONS BEFORE USING YOUR PORTABLE AIR CONDITIONER Remove the exterior and interior packaging. Before connecting the unit to the power source, let it stand upright for approximately 4 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. -
Page 13: Water Drainage
TIMER (DELAYED SWITCH ON / OFF) FUNCTION This function mode enables a delayed switch ON or delayed switch OFF of the air conditioner. The time (hours) delay can be set, enabled and disabled. The timer is adjustable between 1-24 hours. SETTING SWITCH OFF TIMER With the air conditioner operating in any function mode, press the Timer Control button. -
Page 14: Remote Control
REMOTE CONTROL The portable air conditioner can be switched on by the remote control. NOTE: Other appliances in the same room controlled by a remote control (TV, radio, stereo, etc.), may cause interferences. Electronic and fluorescent lamps may interfere with the signal transmissions between the remote control and the air conditioner. -
Page 15: Care And Maintenance
CARE AND MAINTENANCE IMPORTANT: Switch off the air conditioner and disconnect the plug from the power outlet Drain water by removing the drain plug. Always transport the air conditioner in an upright position only. CLEANING THE PRE-FILTER ... -
Page 16: Technical Data
TECHNICAL DATA Model ARC-12SD Cooling capacity 12,000 BTU Power supply 115v/ 60Hz Maximum power input 1100 Watts Maximum input 10.5 Amps Dehumidifying capacity 96 Pts / Day Thermostat 61°F to 89°F Refrigerant R-410A Air flow (max.) 320 m3/ Hour Fan speeds 3 (H, M, L) 49”... -
Page 17: Troubleshooting
Move the unit onto another circuit with the too low. correct voltage. The power cord is damaged. Contact Whynter Service Department. Only authorized personnel should replace damaged power cord or power plug. The L.C.D.I. power plug for ... - Page 18 Possible loose connection Contact Whynter Service Department Fan speed differences are The fan speed difference is not very Fan speed cannot be not very noticeable noticeable when the compressor is on.
-
Page 19: Warranty Information
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. WHYNTER SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY.
