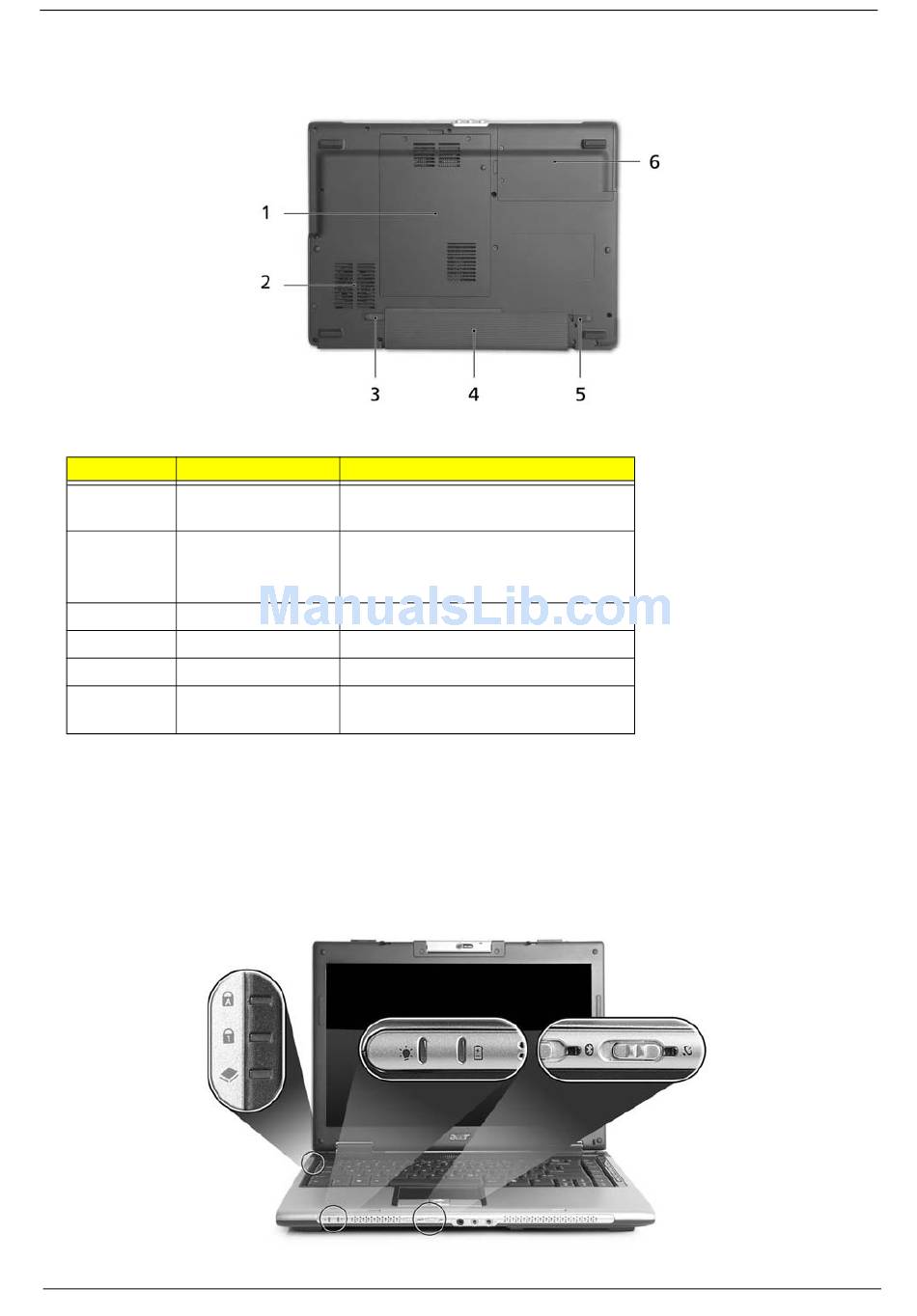

Bottom Panel

#
1 Memory
compartment
2 Cooling fan
3 Battery release latch Release the battery for removal.
4 Battery bay
5 Battery lock
6 Hard disk bay

Indicators

The computer has four easy-to-read status indicators:
Chapter 1
Item
Houses the computer's main memory.
Helps keep the computer cool.
Note: Do not cover or obstruct the
opening of the fan.
Houses the computer's battery pack.
Locks the battery in position.
Houses the computer's hard disk
(secured with screws)
Description
11
