Board Layout; Top View - Acer Aspire 3050 Service Manual

Hide thumbs Also See for Aspire 3050:
Table of Contents

Advertisement

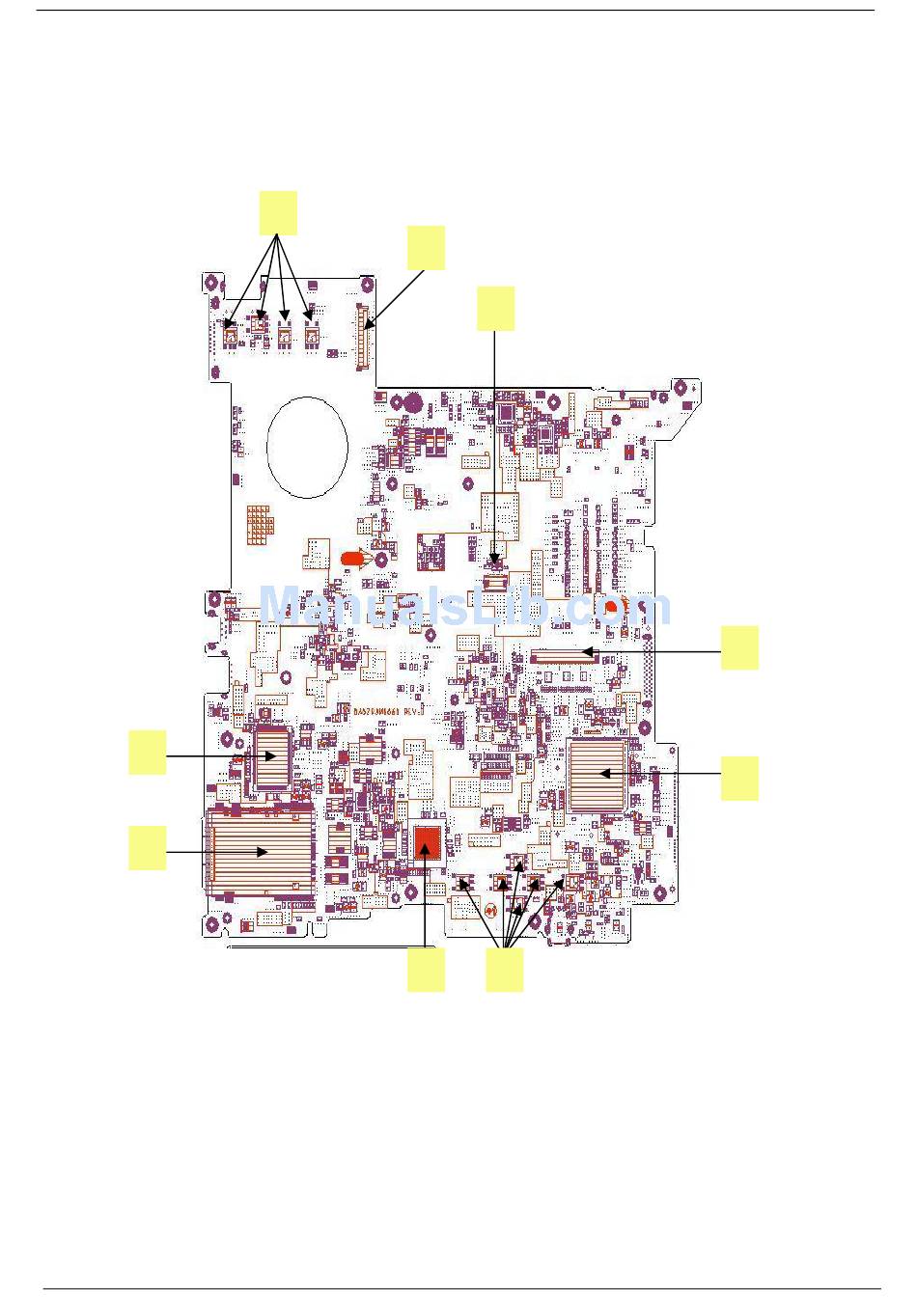

Board Layout

Top View

4
5
1
CN1
LCD Cable Connector
2
SW1-4
Quick Key Switch
3
CN2
Touchpad Board Connector
4
U6
LAN RTL8100CL
5
CN4,5,28
5-in-1 Card Reader Connector
4
2
1
6
3
7
6
U9
ENE CB714
7
SW5-10
Touchpad Switch
8
U7
EC PC97551
9
CN3
Keyboard Connector
9
8
Chapter 1
