Summary of Contents for Bush Hog TDR-11

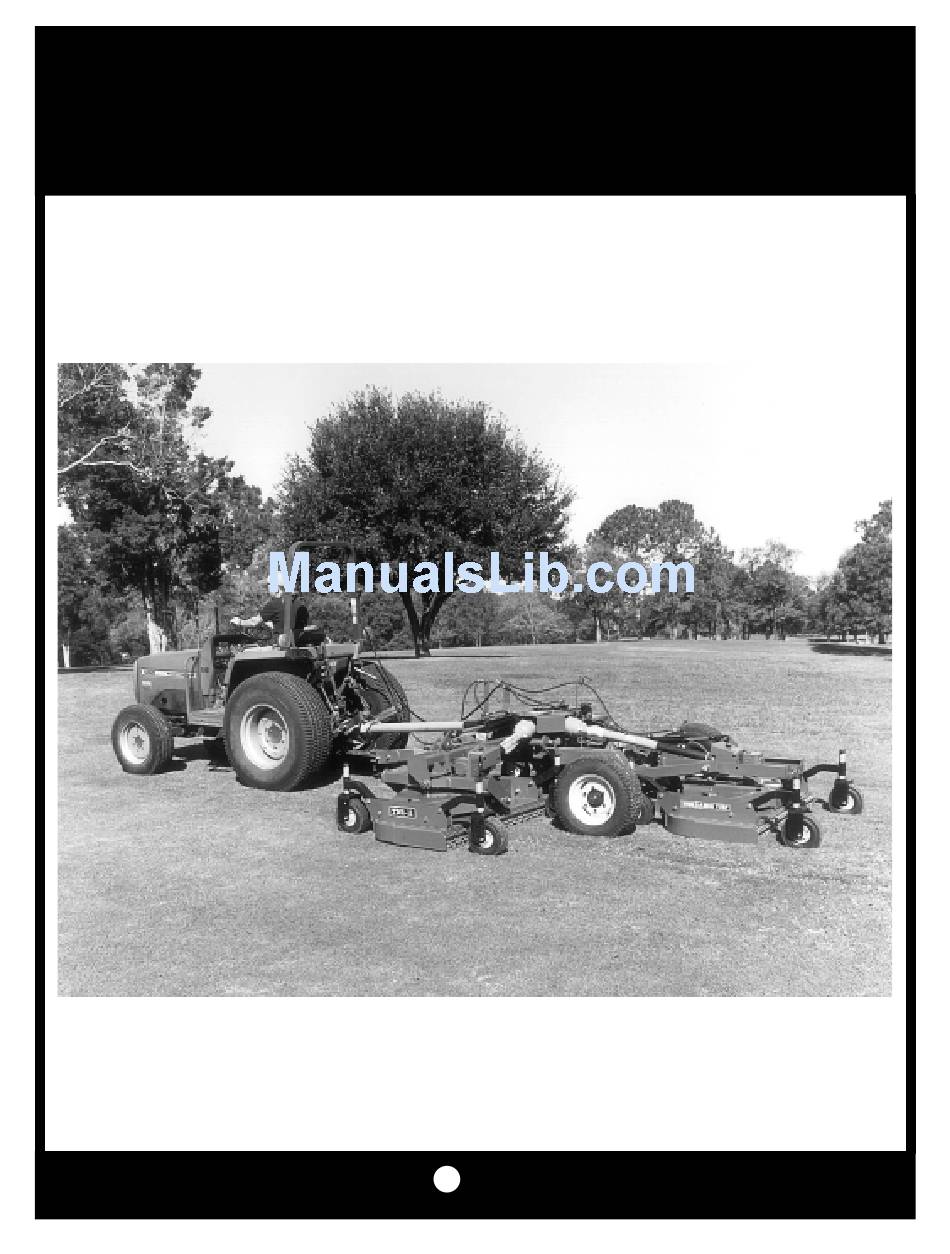

- Page 1 BUSH HOG ® Tri-Deck Finishing Mower TDR -11 Operator’s Manual OPERATION MAINTENANCE $4.00 Part No. 50025363...
- Page 2 If your manual should become lost or destroyed, Bush Hog will be glad to provide you with a new copy. Order from Bush Hog, P. O. Box 1039, Selma, Alabama 36702-1039.
-
Page 3: Table Of Contents
It is the Retail Customer’s responsibility to deliver the product to the authorized Bush Hog Dealer, from whom he purchased it, for service or replacement of defective parts which are covered by warranty. -
Page 4: Warranty
2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident. 3. If parts not made or supplied by Bush Hog have been used in connection with the unit, if, in the sole judge- ment of Bush Hog such use affects its performance, stability or reliability. -
Page 5: Dealer Preparation Check List
Dealer’s Signature Purchaser’s Signature THIS CHECKLIST TO REMAIN IN OWNER’S MANUAL It is the responsibility of the dealer to complete the procedures listed above before delivery of this implement to the customer. TDR-11 Use the Operator’s Manual as a guide. - Page 6 Safety Alert Symbol Signal Words Safety Signs The signal words DANGER, WARNING, AND CAUTION are used on the equipment safety signs. These words are intended to alert the viewer to the existence and the degree of hazard seriousness. White letters on RED Black letters on ORANGE Black letters on YELLOW This Safety Alert Symbol means: “ATTENTION! BECOME ALERT!
-
Page 7: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS This symbol is used to call attention to safe- ty precautions that should be followed by the operator to avoid accidents. When you see this symbol, carefully read the message that follows and heed its advice. Failure to comply with safety precautions could result in death or serious bodily injury. -
Page 8: Federal Laws And Regulations
IMPORTANT FEDERAL LAWS AND REGULATIONS* CONCERNING EMPLOYERS, EMPLOYEES AND OPERATIONS. *(This section is intended to explain in broad terms the concept and effect of the following federal laws and regulations. It is not intended as a legal interpretation of the laws and should not be considered as such). U.S. -
Page 9: Introduction & Description
INTRODUCTION AND DESCRIPTION 1-1 INTRODUCTION We are pleased to have you as a Bush Hog cus- tomer. Your TDR-11 Finishing Mower has been carefully designed to give maximum service with minimum down time. This manual is provided to give you the necessary operating and maintenance instructions for keeping your mower in top operating condition. -
Page 10: Preparation For Use
IMPORTANT PTO ADAPTERS SHOULD NOT BE USED WITH ANY BUSH HOG EQUIPMENT. FAILURE TO FOLLOW THESE INSTRUCTIONS WILL CAUSE DRIVELINE FAILURE AND POSSIBLE TRACTOR DAMAGE. B. Attach jackstand to frame of cutter. Extend jackstand to support weight of frame. -
Page 11: Iii.operating Instructions
F. Route control chain to convenient location and fasten to tractor. Be sure excess slack is removed from the chain to avoid entanglement with tractor tires or other moving parts. Make sure latch locking pins are in the stored positions so that latches can Figure 2-3 Control Chain OPERATING INSTRUCTIONS... -
Page 12: Operation
3-3 OPERATION A. Perform BEFORE EACH USE maintenance list in paragraph 4-1. B. Start tractor. Lower cutter decks until it is supported by caster wheels and hydraulic cylinders are fully extended to allow mechanical float to operate. (Figure 3-2) Figure 3-2 Make Sure Cylinders Are Fully Extended To Allow Decks To Float LUG SPACING Wing CylinderLug Spacing... -
Page 13: Iv.maintenance
3. Check blade bolts for tightness. Tighten blade bolts to 76 ft./lbs. 4. Inspect blades for wear. Replace if necessary per paragraph 4-5. Use only genuine Bush Hog replacement parts. If it is necessary to sharpen the blades, remove the blades from the spindles before sharpening. -
Page 14: Spindle Belt Adjustment
1/2” hex nuts on the spring adjustment rod until the correct spring length is reached. 4-4 SPINDLE BELT REPLACEMENT Use only genuine Bush Hog replacement parts. A. Flip up black latches and remove right and left side shields. To remove the outside shields on the wing cutter decks, the wings must be in the folded position. -
Page 15: Blade Replacement
Troubleshooting procedures are listed in Table 4-1 below. If the problem cannot be solved or replacement parts are necessary, contact your authorized Bush Hog dealer. Please have ready your machine name, model num- ber, serial number, purchase date and exact cause or description of problem. -
Page 16: Safety Decals
To promote safe operation, Bush Hog supplies safety decals on all products manufactured. Because damage can occur to safety decals either through shipment, use or reconditioning, Bush Hog will, upon request, provide safety decals for any of our products in the field at no charge. Contact your authorized Bush Hog dealer for more information. - Page 17 DECALS CONTINUED 82683 83105...
-
Page 18: Torque Specifications
*Use 75% of the specified torque value for plated fasteners. Use 85% of the specificed torque values for lubricated fasteners. Proper toque for American fasteners used on Bush Hog equipment. Recommended Torque in Foot Pounds (Newton Meters).* BOLT DIAMETER WRENCH (IN.) “B”... - Page 19 ® BUSH HOG , L.L.C. P.O. Box 1039 Selma, AL 36702-1039 Telephone (334) 874-2700...
