CRAIN 905 Instruction Manual

1920-O
50
1901-F
GREEN
52
32
1920-J (905)
1920-JV (905V)
52
(RED)
1920-I (905)
WHITE
1920-IV (905V)
(GREEN)
BLACK
1920-W
20
15
16
14
53
10
1920-A (905)
1920-AV (905V) 53
905 (120 VAC)
905V (230 VAC)
No. 905 Heat Bond Iron Replacement Parts
Order # Description
903 3" Universal Iron Tray
1905-10 Sole Plate
1905-11 Element Cover & Screws
1905-13 Top Cover
1905-14 Thermostat Bracket & Screws
1905-15 Adjustable Thermostat
1905-16 Thermo Breaker
1905-20 Wiring Harness Set
1905-32 Power Cord Set
1905-50 Handle Set & Screws
1905-52 Swivel & Screws
1905-53 Kapton® Covers (2)
1901-E Heat Shield and Screws
1901-F Handle Guide and Screw
1901-G Insulator Pad
1901-H Handle Gasket
1901-I Extension Tube
1901-J Dial Knob
1920-A Heating Element
1920-AV 230V Heating Element
1920-I Power-On Light (Green)
1920-IV 230V Power-On Light (Green)
1920-J Heating Indicator Light (Red)
1920-JV 230V Heating Indicator Light (Red)
1920-O Light Holder and Screw
1920-W Terminal Block
*Always follow manufacturer instructions*
WIRING DIAGRAM:
1901-J
No. 905 HEAT BOND IRON:
1901-I
50
1901-H
1901-E
1901-G
13
11
SPECIFICATIONS:
MODEL NO:
VOLTAGE:
AMPERAGE:
WATTAGE:
903
TEMP. RANGE:
This Crain Heat Bond Iron is guaranteed to be free
of defects in workmanship or quality of materials for
a period of 2 years.
Any parts of tool found defective subject to the
guarantee will be replaced at no charge. Credit in full
or part cannot be extended by the distributor, nor
will new tools be given as replacements or loaners.
Tools subject to this warranty must be accompa-
nied by the same, and returned freight PREPAID to
Milpitas, CA, and must be in assembled condition.
CRAIN CUTTER CO., INC.
1155 WRIGLEY WAY, MILPITAS, CA 95035-5426
TEL: 408-946-6100
Printed by: HF
*AAA Rent-All 225-291-1356*
905 905V
120 VAC 230 VOLTS-50HZ/60HZ
7 AMPS 3.5 AMPS
800 W 800 W
FROM 220°F TO 420°F (both 905 & 905V)
GUARANTEE
FAX: 408-946-4268
FORM F1905-03/2012

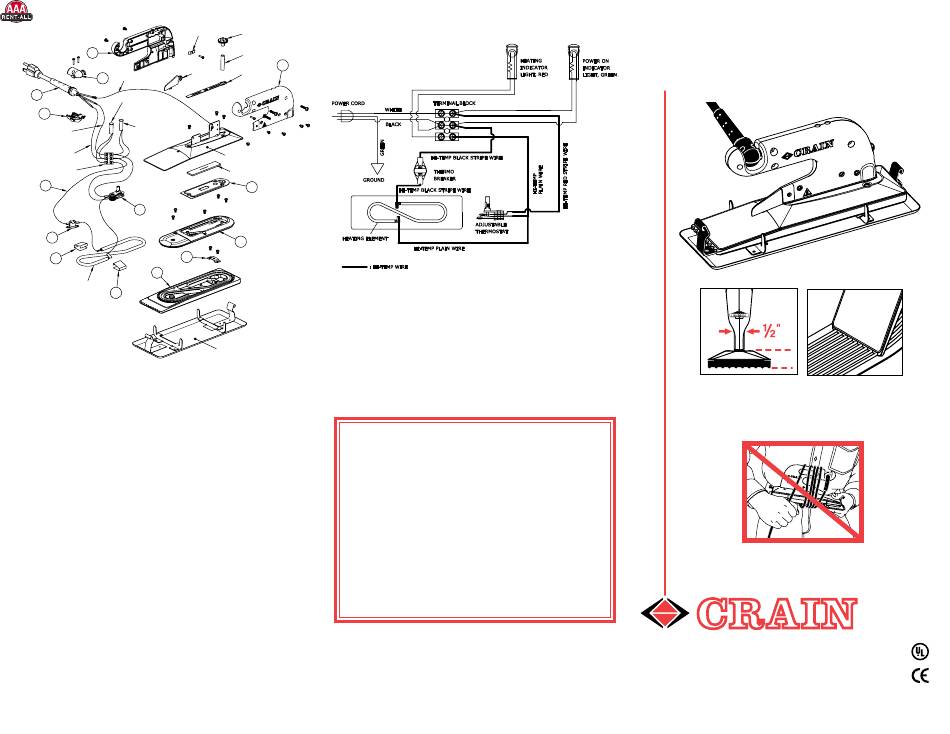

INSTRUCTION
MANUAL FOR
No. 905
HEAT BOND IRON
1"
LOW PROFILE LOW PROFILE ANGLE-OUT TIP ANGLE-OUT TIP
WARNING - CORD ABUSE
DON'T
WRAP CORD
TIGHTLY
AROUND
IRON
KEEP GLUE
OFF IRON
CORD
ELECTRIC SHOCK & FIRE HAZARD
CRAIN
No. 905 HEAT BOND IRON (120 V)
No. 905V HEAT BOND IRON (230 V)
GROOVED
DON'T YANK
CORD FROM
ELECTRICAL
SOCKET
DON'T
REMOVE
GROUND
TERMINAL
